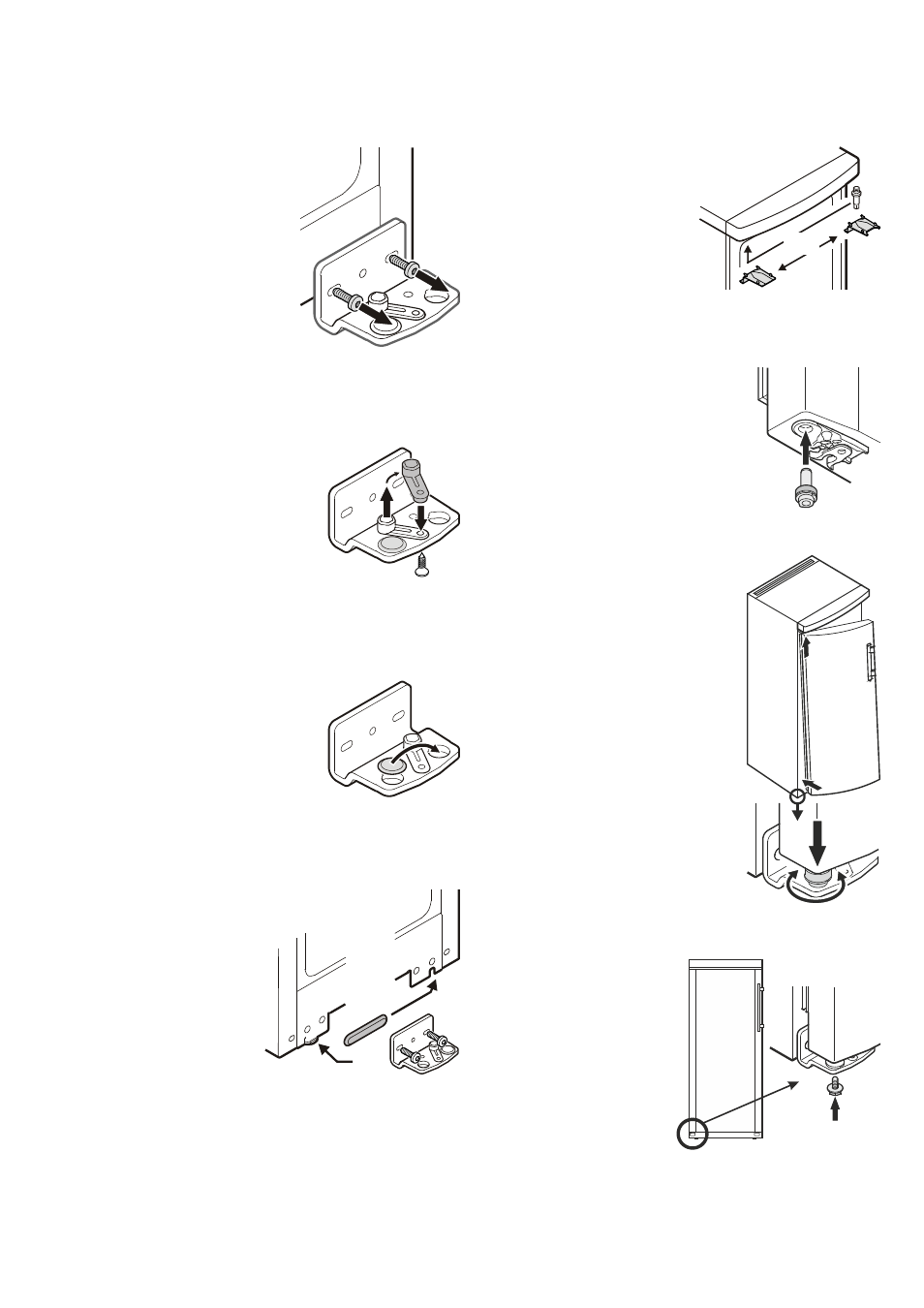

8. Transfer the hinge component on the
hinge bracket to the opposite side.
10. Transfer cover plate to the op-
posite side.
11. Screw hinge bracket into place.
12
12. Transfer upper hinge compo-
nents to the opposite side.
10
11
7
7. Unscrew hinge bracket.
8
9
9. Transfer cover to the opposite side.
16
13. Insert the pin into the left-hand door
mounting.
Use your index finger to hold the pin
while you are assembling the door.
14. Locate the door on the upper pin as
shown in the illustration and guide it
to the lower hinge bracket.
13
14
15
15. Lift the door upwards and turn the
pin until it fits into the bore hole of the
hinge bracket.
Slowly lower the door downwards.
The lower part of the pin must be fully
engaged in the bore hole of the hinge
bracket.
16. Screw the screw into the
pin again and tighten using
the open-ended spanner
provided.
