Liebherr R 974 C Litronic Demolition - Manual (Page 4)

HD-EW mm VH-HD mm
A 4355 4355
A1 4980 4980
C 4040 3980
D 4405 4405
E 4445 4445
H 3840 3780
K 1800 1740
L 5035 5020
P 1680 1615
Q 755 685
S 4588 3400 – 4700
U 6430 6410
Z 7635 7610
N 750 750
B 5580 4350 – 5650
G* 5910 4615 – 5915
* with catwalks
4 R 974 C Litronic Demolition Attachment

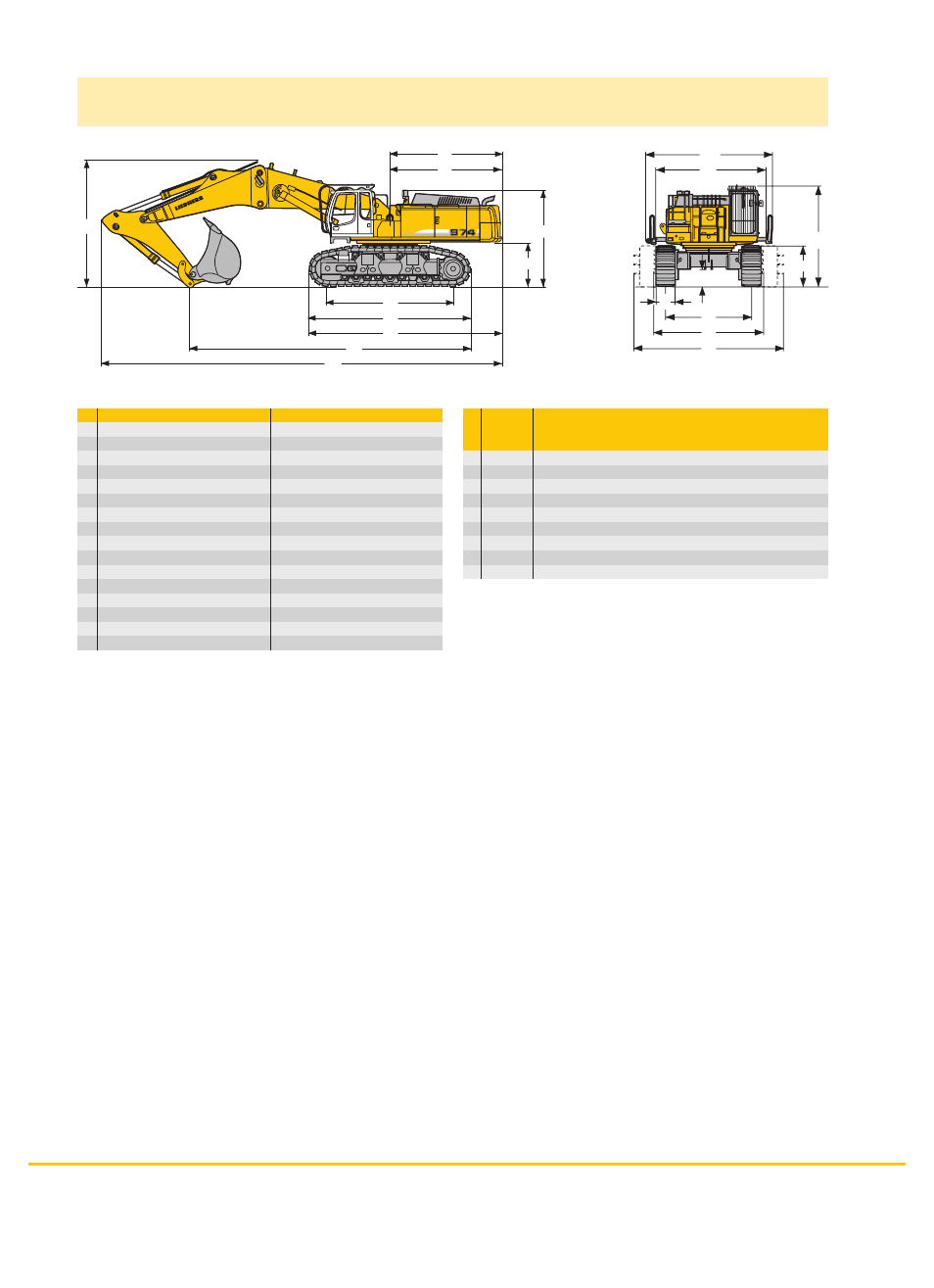

Dimensions
F
W
D
L
U
Z
V
X
H
K
C
P
S
B
G
N
A1
A
O
Stick Main Boom 5,00 m
Length HD-EW VH-HD
m mm mm
V 2,90 11050 11050
3,80 10750 10750
4,70 10550 10550
W 2,90 5050 5000
3,80 5500 5450
4,70 6050 6000
X 2,90 15800 15800
3,80 15400 15400
4,70 15350 15350
