LR 614 Litronic
5
Multi-purpose
LR 614
bucket
bolt-on adapters,
bolt-on adapters
and teeth
segments and teeth
Version with
Nominal rated bucket capacity
m³
1.20
1.25
according to ISO 7546
yd³
1.57
1.63
Nominal rated bucket capacity
m³
1.20
1.20
according to SAE J732
yd³
1.57
1.57
Breakout force according to SAE J732
kN
95
86
lb
21,349
19,327
Static tipping load according to SAE J732
kg
6,988
7,154
lb
15,406
15,772

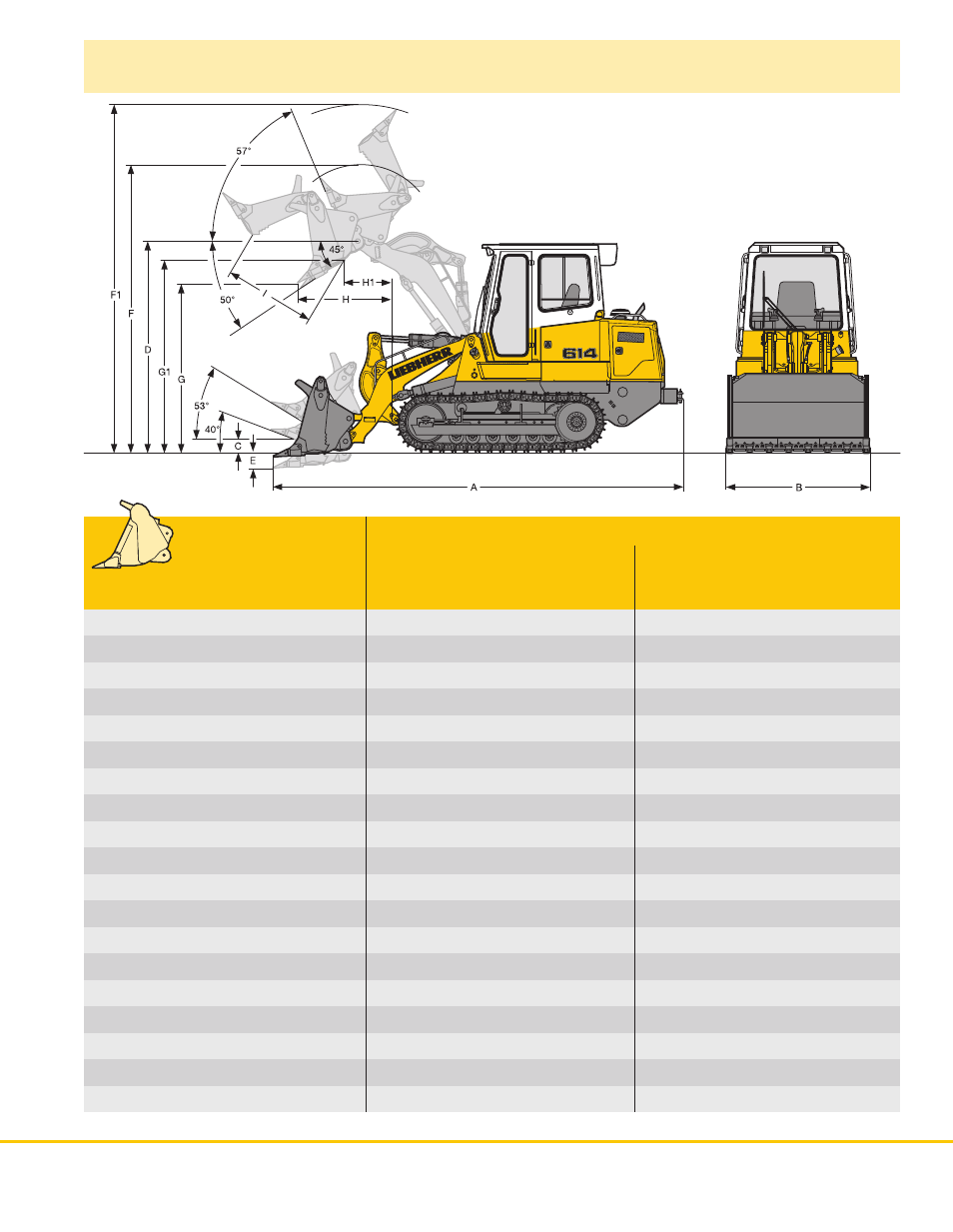

A
Overall length bucket at ground
mm
5,653
5,745
with rear bumper
ft-in
18’7”
18’10”
B Bucket width, overall
mm
2,300
2,300
ft-in
7’7”
7’7”
C Height of hinge pin, transport position
mm
459
459
ft-in
1’6”
1’6”
D Height of hinge pin, max.
mm
3,368
3,368
ft-in
11’1”
11’1”
E
Digging depth, max.
mm
140
165
ft-in
5.5”
6.5”
F
Overall height with bucket at full lift
mm
4,516
4,519
(bucket closed)
ft-in
14’10”
14’10”
F1 Overall height with bucket at full lift
mm
5,023
5,093
(bucket open)
ft-in
16’6”
16’9”
G Dump clearance at full lift and 45°
mm
2,647
2,578
discharge (bucket) according to ISO 7131 ft-in
8’8”
8’5”
G1 Dump clearance at full lift and 45°
mm
3,017
3,017
discharge (blade) according to ISO 7131 ft-in
9’11”
9’11”
H Reach at full lift and 45° discharge
mm
908
941
(bucket) according to ISO 7131
ft-in
3’0”
3’1”
H1 Reach at full lift and 45° discharge
mm
542
542
(blade) according to ISO 7131
ft-in
1’9”
1’9”
I
Width of opening
mm
1,095
1,095
ft-in
3’7”
3’7”
Bucket weight
kg
1,115
1,187
lb
2,458
2,617
Operating weight
1
kg
11,475
11,780
2
lb
25,298
25,970
2
Ground pressure
1
kg/cm²
0.58
0.59
2
psi
8.25
8.39
2
1
Machine with ROPS/FOPS cab, coolant and lubricants, operator (75 kg), bucket, rear bumper and track pads 457 mm / 18”
2
with heavier rearbumper (550 kg / 1,213 lb)
Front attachment
