8 EUROLIVE F1320D User Manual
4. Audio Connectors
Both audio inputs of the BEHRINGER F1320D and the LINK OUTPUT connector are
fully balanced. To maximize interference compensation, try to establish balanced
connections to other equipment, whenever possible.

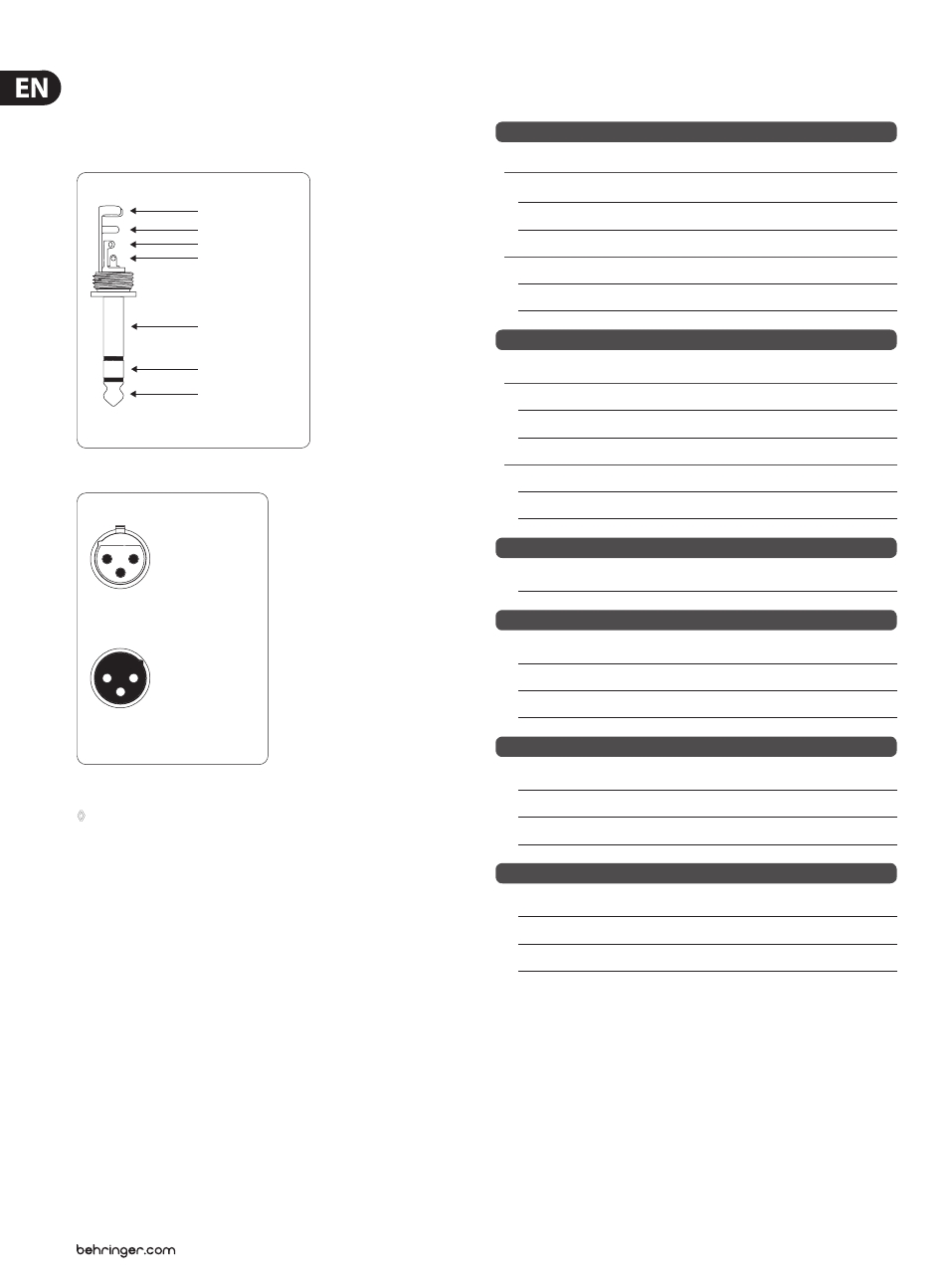

Fig. 4.1:
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced ¼" TRS connector
ring
cold (-ve)
tip
hot (+ve)
1/4" TRS connector
Fig. 4.2:
output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
1 2
3
1 2
3
Balanced use with XLR connectors
XLR connectors
◊ Make sure that only competent people install your F1320D. They must
be sufficiently earthed during and after the installation process.
Otherwise, electrostatic discharges may negatively affect the
operating characteristics of your equipment.
5. Specifications
Output Power
Low-frequency range
RMS @ 1% THD 160 W @ 8 Ω
Peak Power 225 W @ 8 Ω
High-frequency range
RMS @ 1% THD 40 W @ 8 Ω
Peak Power 72 W @ 8 Ω
Mic/Line Inputs
XLR connector
Sensitivity -50 dBu to 0 dBu
Impedance 20 kΩ balanced, 30 kΩ unbalanced
¼" TRS connector
Sensitivity -50 dBu to 0 dBu
Impedance 20 kΩ balanced, 30 kΩ unbalanced
Link Output
XLR connector
Equalizer
High 12 kHz / ±15 dB
Mid 2.5 kHz / ±15 dB
Low 80 Hz / ±15 dB
Feedback Filter
Filter frequency 300 Hz to 6 kHz
Level reduction max. 15 dB
Q factor 20
Loudspeaker System Data
Frequency range 60 Hz to 16 kHz (-10 dB)
Maximum sound pressure level 115 dB / 118 dB @ 1 m
Limiter optical
