27

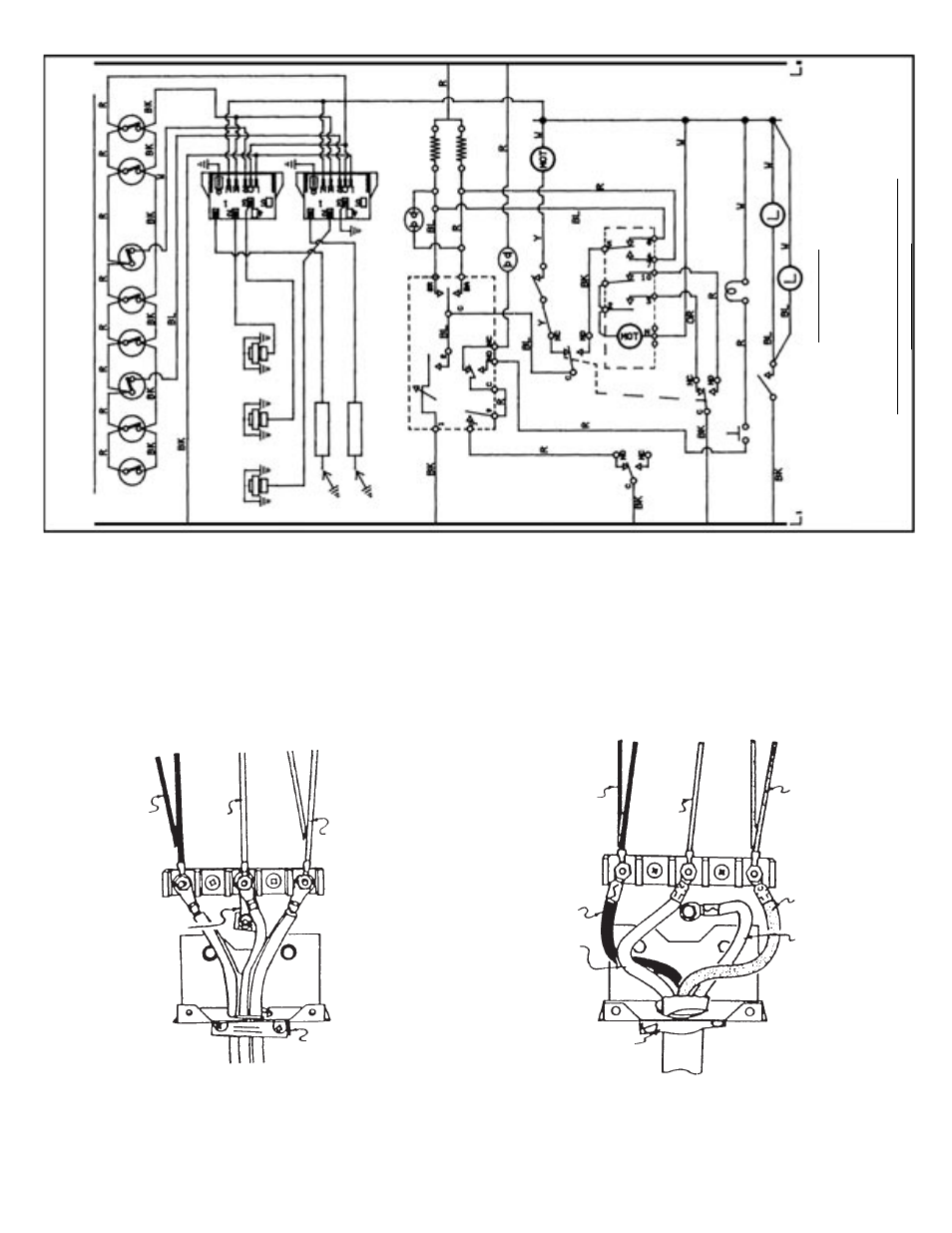

WIRING
DIAGRAM
FOR
GAS
RANGES
WITH ELECTRICAL
EQUIPMENT
TO
P
BURNER
IGNITION SWITCHES
TO
P
LEFT
IGNITION
TO
P
CENTER IGNITION
TO
P
RIGHT
IGNITION
GRIDDLE IGNITION
LEFT
OVEN
IGNITION
THERMOST
A
T
(BAKE-BROIL-CLEAN)
OVEN ON SIGNAL
LIGHT
(240V)
(3000 W)
BROIL (2800 W)
BAKE
LOCK LITE
CLEAN TIMER
RESET ST
AR
T
DOOR LOCK SWITCH (2)
PUSH SWITCH LOCK/UNLOCK
OVEN LIGHT
SWITCH
DOOR LOCK
SOLENOID
R
T
. OVEN LIGHT
LF
. OVEN LIGHT
FA
N
SWITCH
TIMER
MOTOR
OVEN DOOR INTER-LOCK
DOOR
CLOSED
FA
N
MOT
OR
GRIDDLE
LF
. OVEN
( )
”N” ”N”
GROUND NOTICE
W
ARNING:
FRAME GROUNDED
T
O
NEUTRAL
OF
APPLIANCE
THROUGH
A
LINK. IF USED IN
A
MOBILE HOME
OR IF LOCAL
CODES DO NOT
PERMIT
GROUNDING
THROUGH
THE NEUTRAL, DISCONNECT
THE LINK FROM
THE NEUTRAL
AND USE GROUNDING
TERMINAL
OR LEAD
T
O
GROUND UNIT
IN
ACCORDANCE WITH LOCAL
CODES. CONNECT
NEUTRAL
TERMINAL
OR LEAD
T
O
BRANCH CIRCUIT
NEUTRAL
IN USUAL
MANNER.
CONSUL
T
MANUF
ACTURER’S INSTRUCTIONS WHEN CODES REQUIRE
THA
T
3-CONDUCT
OR CORD
ASSEMBLIES MUST
BE REPLACED BY
4-CONDUCT
OR CORD
ASSEMBLIES.
SEE RA
TING PLA
TE FOR
T
OT
AL
W
A
TT
AGE
AND VOL
T
AGE
525
USE ONL
Y
COPPER WIRE
188-6C024 REV
. 2
WIRING DIAGRAM FOR 48'' SELF CLEAN 188-6C024
MODEL NO. 525
‘WARNING’
THIS APPLIANCE MUST BE CONNECTED AS SHOWN IN FIGURE 1, OR 2. IF THE CORD IS
REPLACED IT MOST BE RATED AT 250 VOLTS 50 AMPERES AND CERTIFIED FOR USE ON
HOUSEHOLD RANGES.
FIG. 1
FIG. 2
WIRING RANGE CONNECTION CORD
(FOR DUAL-FUEL RANGES ONLY)
BLACK WHITE
RED
GROUND LINK
STRAIN RELIEF
STANDARD 120/240V HOOKUP
FRAME GROUNDED TO NEUTRAL
THROUGH A LINK
BLACK
WHITE
RED
BLACK
WHITE
RED
GREEN
STRAIN RELIEF
STANDARD 120/240V HOOKUP
WHERE SEPARATE GROUND IS REQUIRED
