WIRING BOX COVER
WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box.
2. Secure the conduit to the wiring box through
a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws. Make
sure that wires are not pinched between
cover and box.

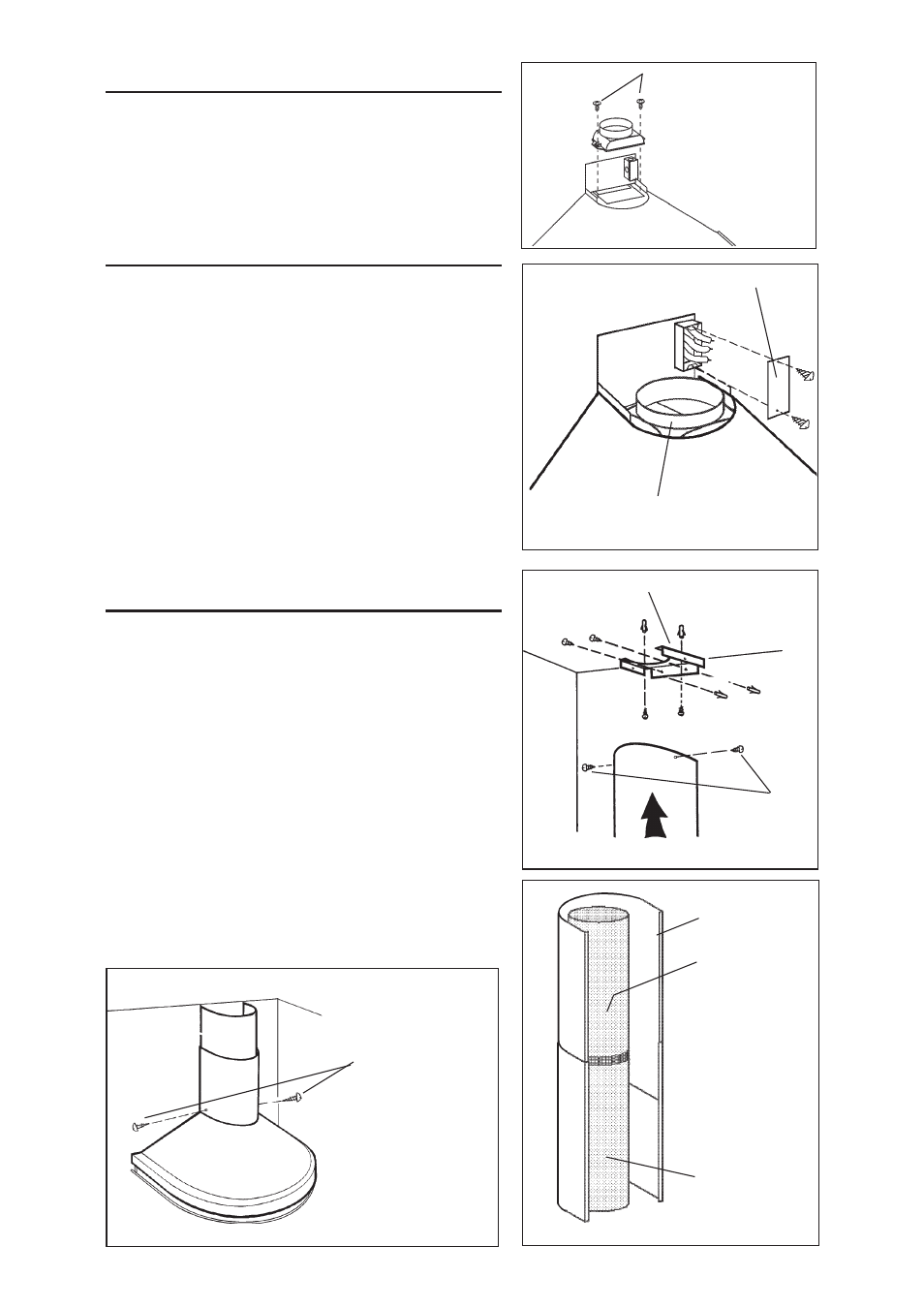

CONNECT DUCTWORK
Ducted Configuration
1. Use (2) screws (4.8x38mm) and wall
anchors to secure flue mounting bracket
to the ceiling or wall as shown.
2. Use 6" round metal duct to connect the duct
collar on the hood to the ductwork above.
3. Use duct tape to make all joints secure and
air tight.
4. Connect the upper section of decorative flue
to the bracket with screws provided
(3.9x6mm).
5. Slide the lower section of decorative flue
downward, until it fits properly around hood.
6. Secure decorative flue to hood with screws
provided (3.9x6mm).
DUCT
COLLAR
FLUE MOUNTING
BRACKET
DUCT TAPE
DECORATIVE
FLUE
6" ROUND
METAL DUCT
FASTEN FLUE
TO BRACKET
WITH SCREWS
(3.9x6mm)
FASTEN FLUE TO
HOOD
WITH SCREWS
(3.9x6mm)
INSTALL DUCT COLLAR
Attach the duct collar onto the hood; it must be
attached by means of 2 mounting screws
(3,9x9,5 mm Pan Head).
MOUNTING SCREWS
(3.9x9.5mm)
