B&K 4420M User Manual
Page 10
Page 8
Unbalanced - RCA type connectors accept line input from the preamplifier’s
unbalanced output connectors. There are two input connectors, that
may be used to connect the amplifier to the preamplifier.
RCA cable connector -
Operation -
For unbalanced operation, ensure the balanced switch between the
balanced inputs on the rear of the amplifier is in the ‘off’ (out) position. If
the amplifier does not have balanced inputs then it is always in
unbalanced mode.
Balanced -
XLR type connectors accept line input from the preamplifier’s balanced
output connectors. The Reference 4420M has balanced line inputs.
Balanced cable connector
-
Operation -
For balanced operation, ensure the balanced switch between the
balanced inputs on the rear of the amplifier is in the ‘on’ (in) position.

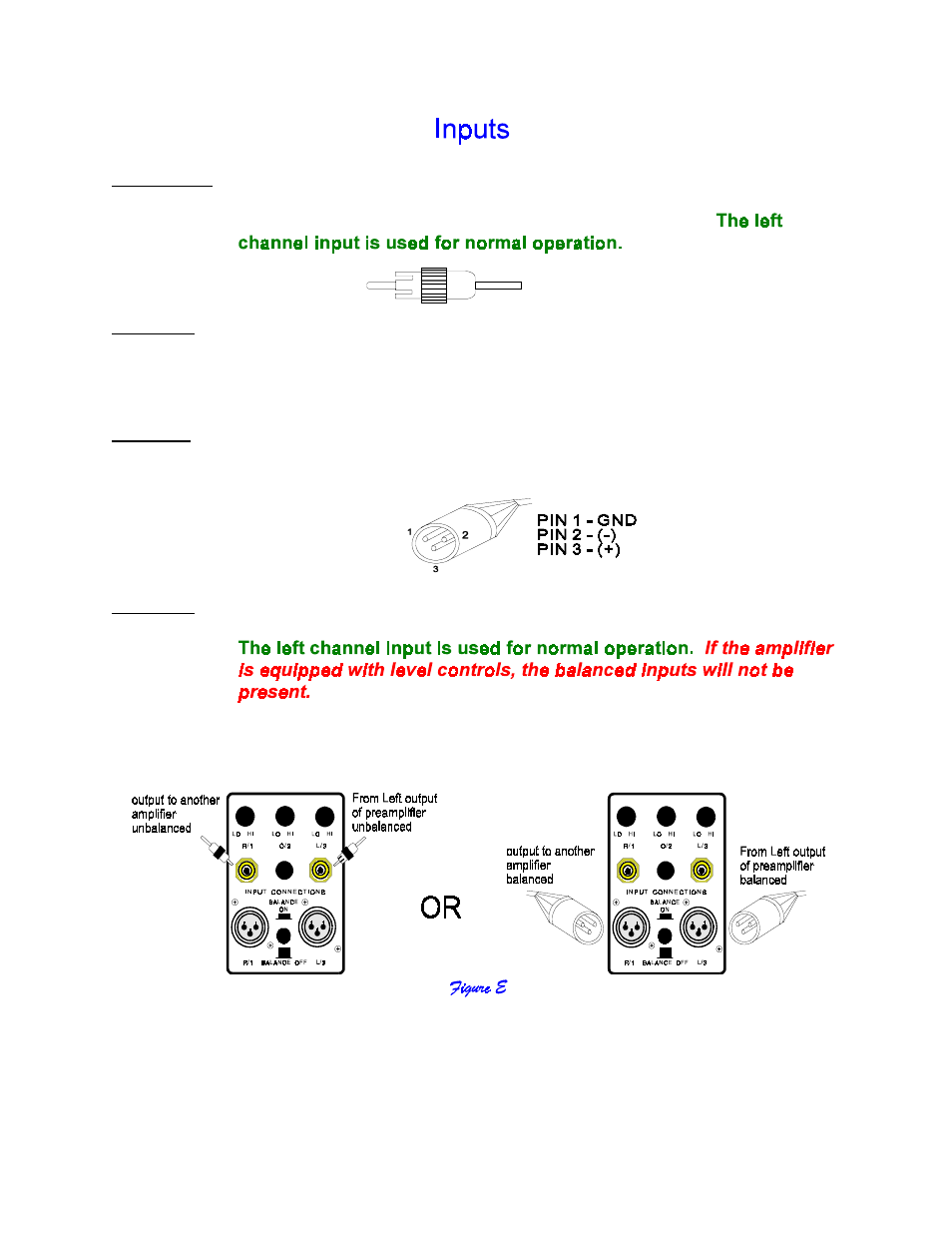

Here is a typical input setup:
