Express® Lavatory System SS-Series
Installation Instructions - For Service Only SS-3/AST/STD, SS-3/AST/JUV
7 Bradley Corporation • 215-1238 Rev. C; EN 03-813 5/11/04
Installation Instructions continue . . .
Installation Instructions continued . . .

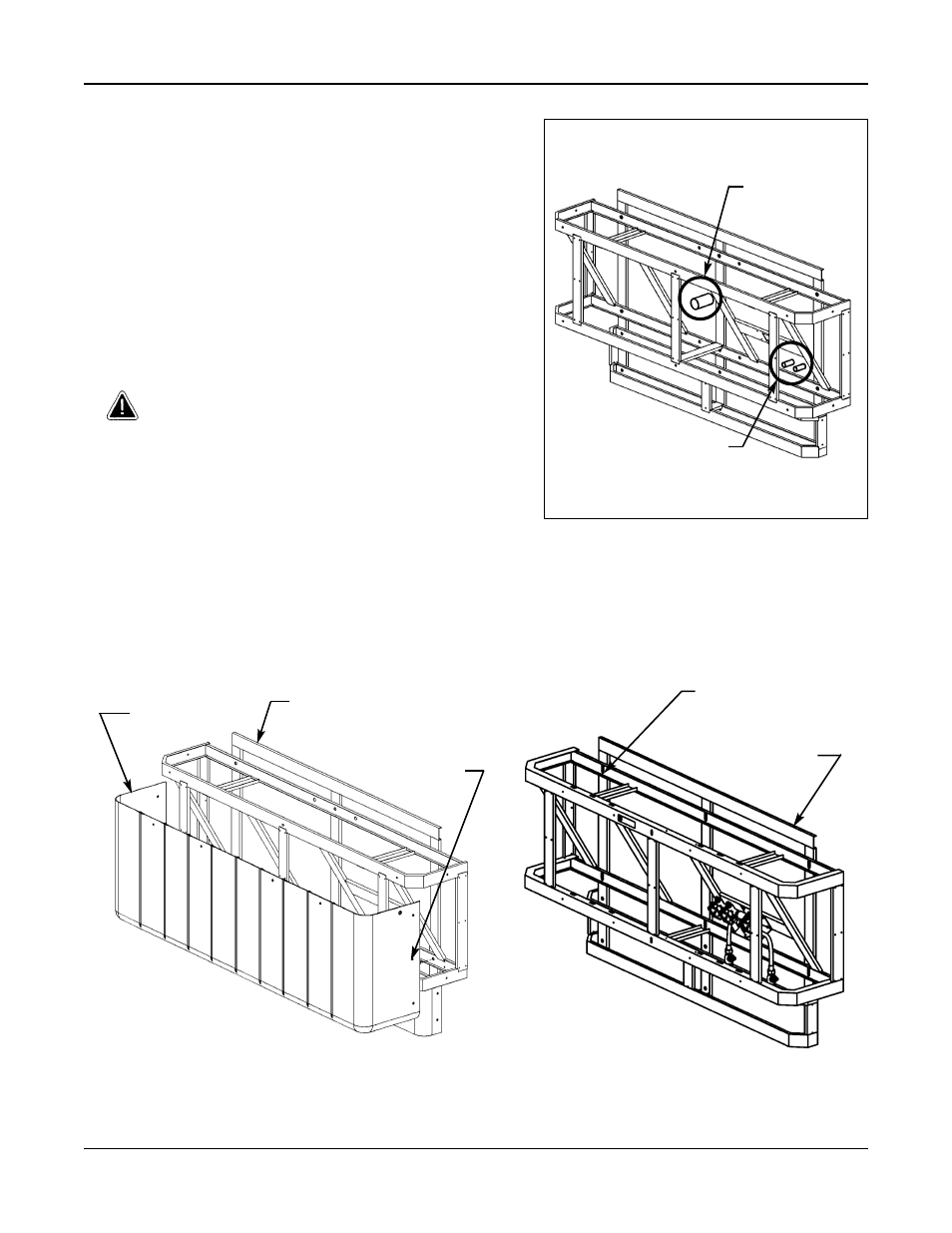

Step 2: Mounting frame to wall
1. Remove the ten Torx-head screws securing the
panel to the frame, and remove the panel
(see Figure 3).
Note: Scuff panel does not need to be removed.
2. Position the frame against the wall, ensuring that
it is level. If necessary, insert shims under the
frame until level.
Note: When mounted, the Standard and Juvenile
Height frames should rest on the floor.
IMPORTANT: Anchoring the frame to a wall
that is not flat may cause the
frame to bend. If necessary,
install shims to compensate
for any wall distortion.
3. Ensure that the back of the frame is flat against the wall. If wall is not flat, insert shims
behind the frame to ensure that it will not bend when anchored.
4. Once you have positioned the frame such that it is level and resting on the floor and flat
against the wall or shimmed, use the 3/8" bolts and washers to mount the frame to the wall
(see Figure 4).
Figure 4
(6) 3/8" BOLT
AND WASHER
FRAME
Figure 3
PANEL
FRAME
(10) TORX-HEAD
SCREW
Figure 2
1-1/2” NPT DRAIN
STUB-OUT
1/2” NPT HOT AND COLD
SUPPLIES OR TEMPERED
SUPPLY - STUB-OUTS
