Bryston 3B SST - Manual (Page 11)

0
0.01
0.001
0.002
0.003
0.004
0.005
0.006
0.007
0.008
0.009
%
20 20k 50 100 200 500 1k 2k 5k 10k
Hz

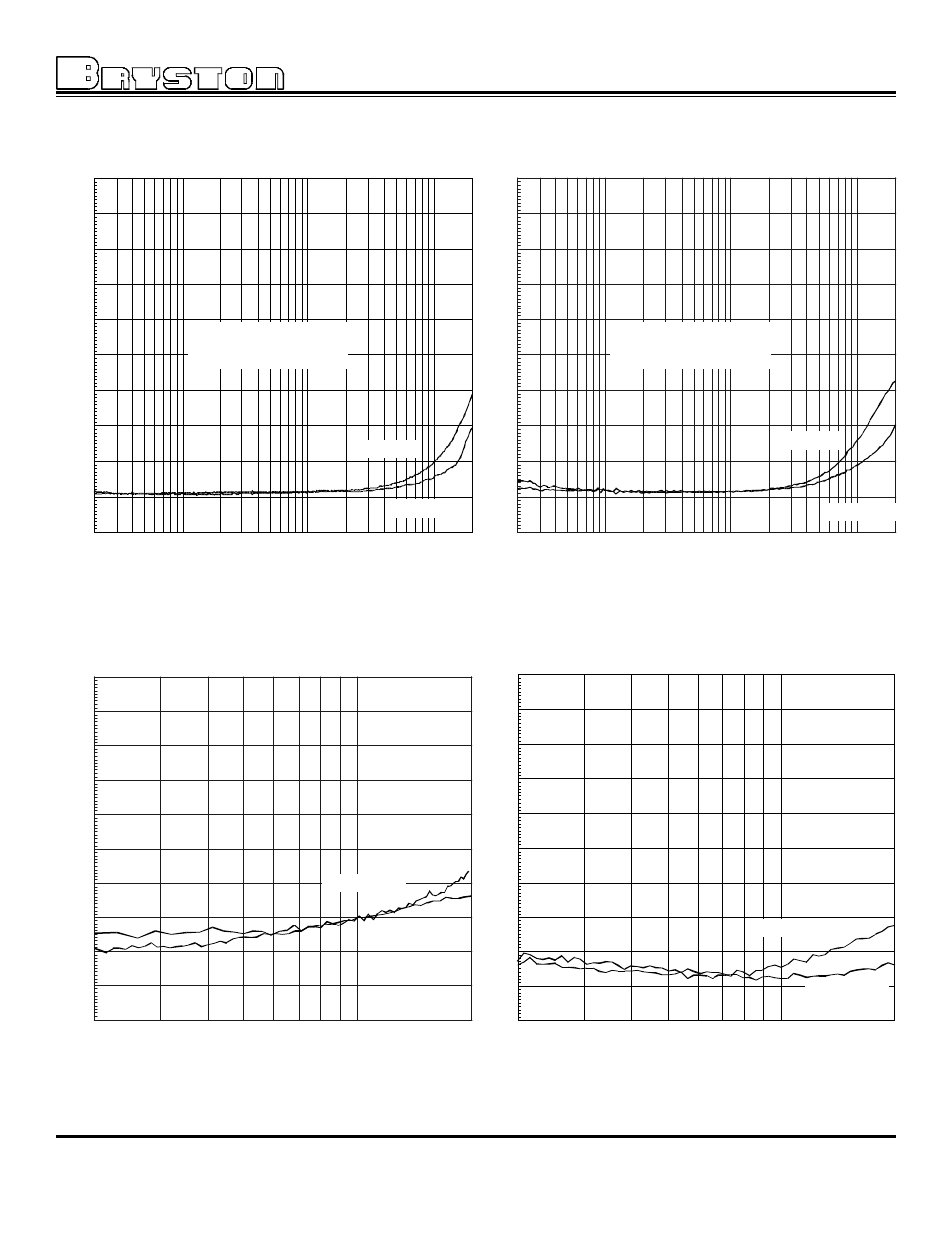

Typical THD+N Sweep 3BSST
4 ohm 250w
8 ohm 150w
3B SST and 4B SST Series Amplifiers
11
0
0.01
0.001
0.002
0.003
0.004
0.005
0.006
0.007
0.008
0.009
%
2k 20k 3k 4k 5k 6k 7k 8k 9k 10k
Hz
Typical IMD Sweep 3BSST
8 ohm 150w
4 ohm 250w
Graph shows that distortion is
essentially unaffected by load.
2v balanced input shown.
0
0.01
0.001
0.002
0.003
0.004
0.005
0.006
0.007
0.008
0.009
%
20 20k 50 100 200 500 1k 2k 5k 10k
Hz
Typical THD+N Sweep 4BSST
4 ohm 500w
8 ohm 3000w
0
0.01
0.001
0.002
0.003
0.004
0.005
0.006
0.007
0.008
0.009
%
2k 20k 3k 4k 5k 6k 7k 8k 9k 10k
Hz
Typical IMD Sweep 4BSST
8 ohm 300w
4 ohm 500w
Graph shows that distortion is
essentially unaffected by load.
2v balanced input shown.
