BUNN ® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

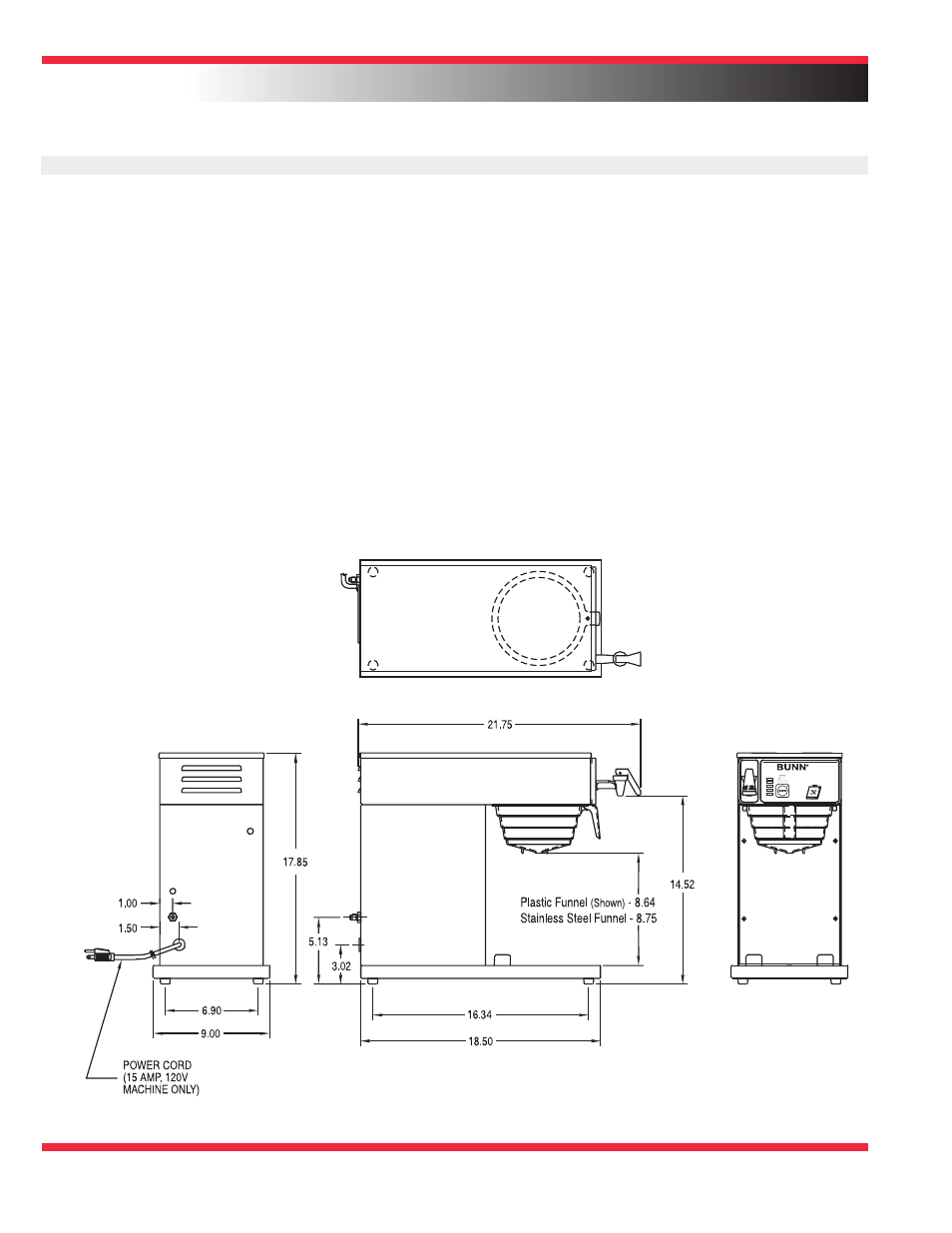

all dimensions shown in inches.
Dimensions & Specifications
Bunn-o-matic corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
Model Product # Volts Amps Tank Heater Total Brewing Cubic Shipping Cord
Watts Watts Capacity Measure Weight Attached
cDBcF15-tc* 29000.0107 120 12.5 1425 1500 4.2 gal./hr. 4.3 ft 3 30 lbs. Yes**
cDBcF15-tc DV 29000.0233 120 12.5 1425 1500 4.2 gal./hr. 4.3 ft 3 30 lbs. No
* Stainless steel funnel **Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Brewing capacity: based upon incoming water temp of 60ºF/15˚C (140ºF/60˚C rise) per 1/2 gallon brew time of 4 minutes.
Models listed as 120/208V or 120/240V must be connected to 208V or 240V electrical service respectively. Please refer to the installation manual.
electrical: If wired for 120V, requires 2-wires plus ground service rated 120V, single phase, 60 Hz. If wired for 120/208V
or 120/240V, requires 3-wires plus ground service rated 120/208V or 120/240V, single phase, 60 Hz.
Plumbing: 20-90 psi (138-621 kPa). machine
supplied with 1 ⁄
4
" male flare fitting.
