Blue Rhino CBT672B - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Parts List
1 Handle
2 Branding Plate
3 Vent Knob
4 Lid
5 Air Vent
6 Warming Rack
7 Cooking Grid
8 Charcoal Grid
9 Top Hinge (2)
10 Bottom Hinge (2)
11 Bottom Bowl
12 Leg (2)
13 Ash Receiver Assembly
14 Latch (2)

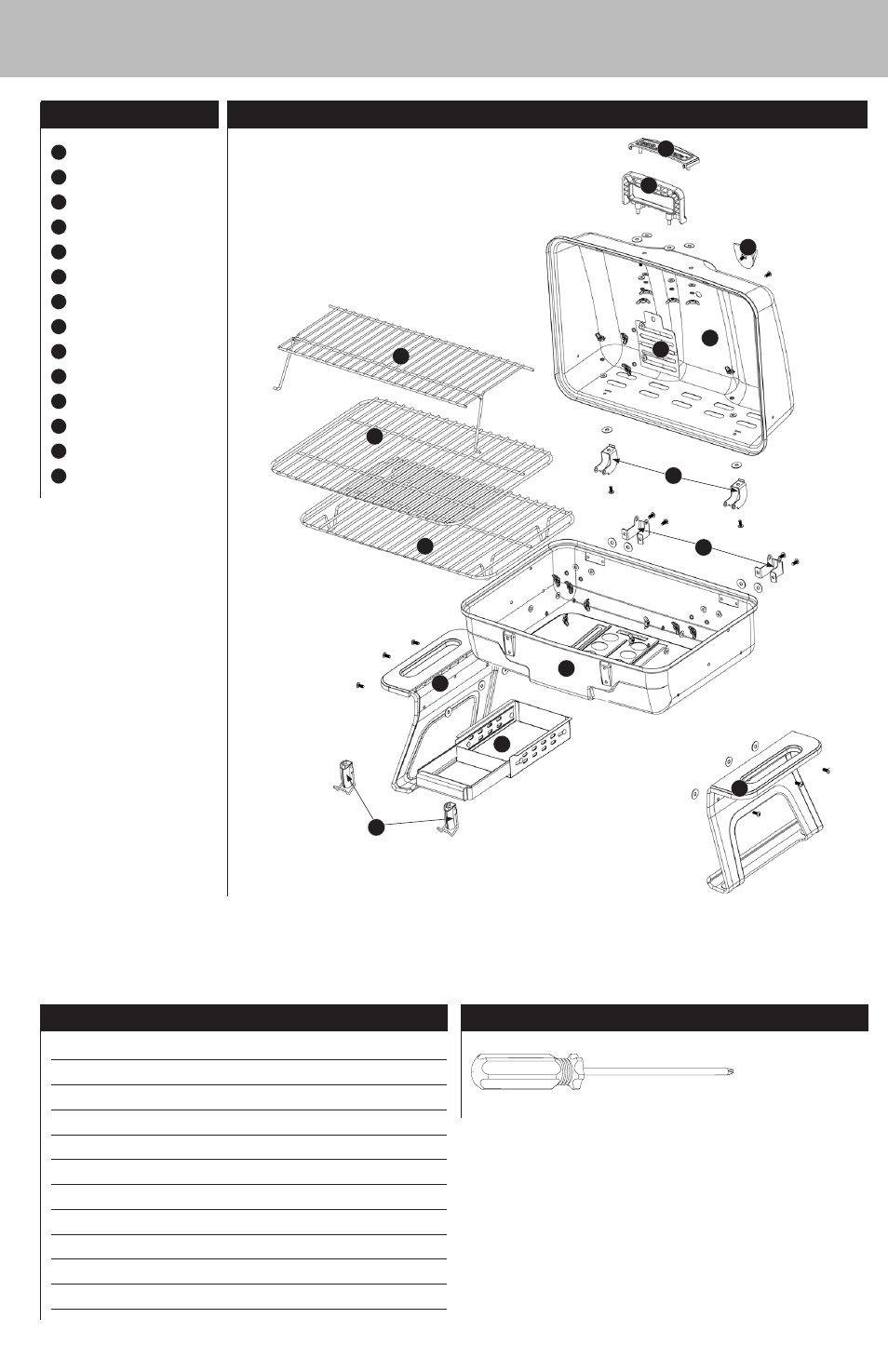

Exploded View
Hardware
A
Screw M4x10 Zinc Plated Phillips Truss Head 4 pcs
B
Screw M5x12 Zinc Plated Phillips Truss Head 13 pcs
C
Wing Nut M4 Steel 4 pcs
D
Wing Nut M5 Steel 18 pcs
E
Washer ø4 Zinc Plated 4 pcs
F
Washer ø5 Zinc Plated 17 pcs
G
Washer ø6 Heat Resistant 16 pcs
H
Lock Washer ø4 Zinc Plated 4 pcs
I
Lock Washer ø5 Zinc Plated 18 pcs
J
Pin ø6 x 100 Black Coated 2 pcs
K
Cotter Pin ø1.4 x 30 Zinck Plated 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
7
4
3
1
5
6
8
2
11
12
13
12
14
9
10
