MODEL QTRE080R

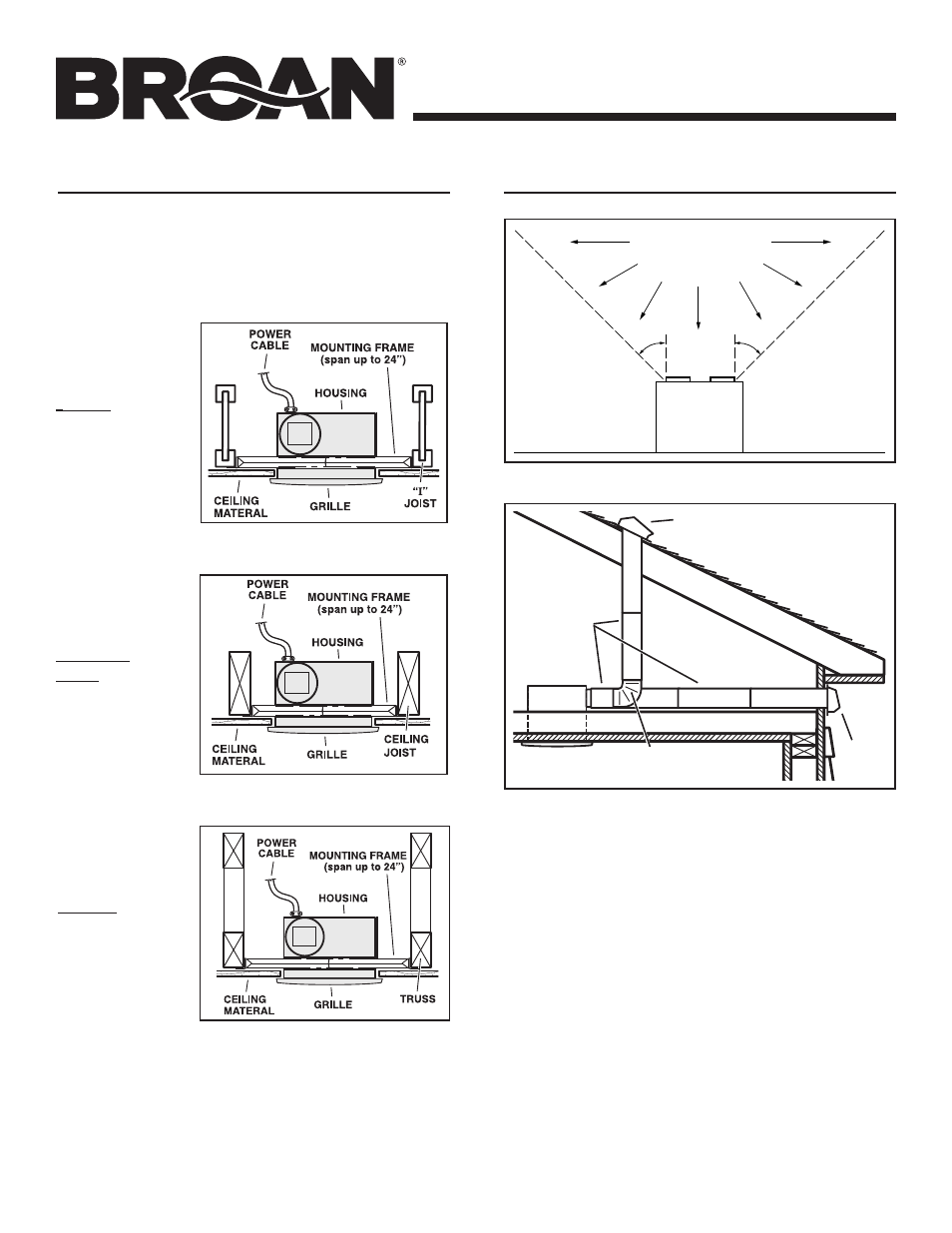

TYPICAL INSTALLATIONS
Housing
mounted
anywhere
between
trusses using
mounting
frame.
PLAN THE INSTALLATION
ROOF CAP
*
4-IN. ROUND
ELBOW
*
4-IN. ROUND
DUCT
*
WALL
CAP
* *
Purchase
separately
The unit will operate most quietly and efficiently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
Housing
mounted
anywhere
between
I-joists
using
mounting
frame.
Housing
mounted
anywhere
between
standard
joists
using
mounting
frame.
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45 o 45 o
NOT FOR USE IN
A COOKING AREA.
A mounting frame is provided to allow for accurate
positioning of the fan anywhere in the room. It can be
used with I-joists, standard joists and trusses, from 16” to
24” on-center.
