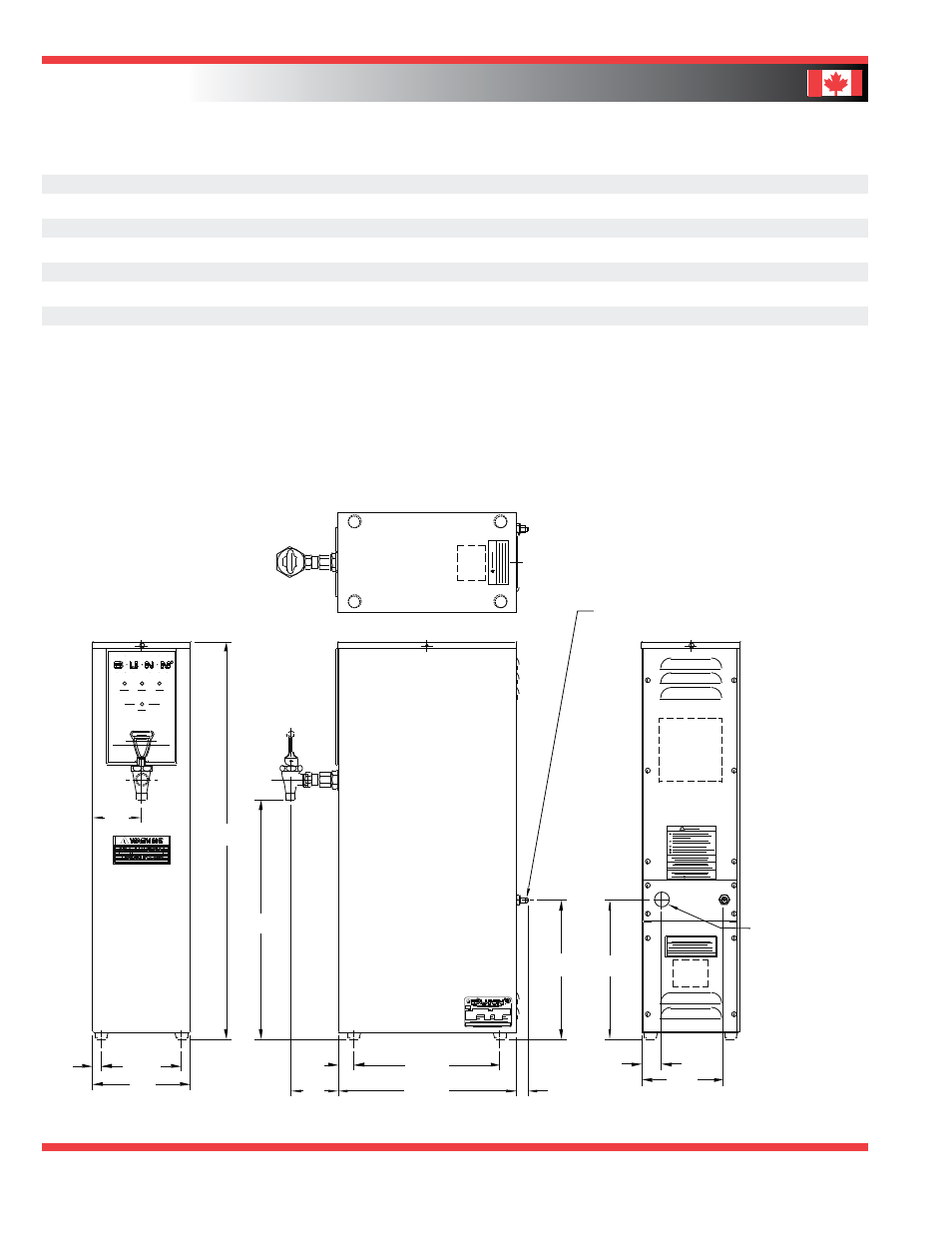

Dimensions & Specifications
Bunn-O-Matic Corporation of Canada - 280 Industrial Pkwy. S. Aurora, Ontario L4G 3T9 • 905-841-2866 • Fax 905-841-2775 • www.bunn.com
CANADA
Model Product # Volts Amps Tank Total ˚F/˚C Capacity/Hr. Capacity/Hr. Cubic Weight Cord
Heater Watts Settings cold water hot water ft 3 /m 3 lbs/kg Attached
Watts input 35˚F/1.7˚C input 140˚F/60˚C
H5E-15-120 12500.6031 120 12.5 1500 1500 155-200/68.3-93.3 Varies with application 4.1 / .116 34 / 15.4 Yes*
H5E-15-120 12500.6000 120 12.5 1500 1500 85-115/29.4-46.1 Varies with application 4.1 / .116 34 / 15.4 Yes*
H5E-40-208 12500.6008 208 19.2 4000 4000 200/93.3 Varies with application 4.1 / .116 34 / 15.4 No
H5X-40-240 12500.6004 240 16.7 4000 4000 212/100 7.3gal/27.6 liter 14.7 gal/55.7 liter 4.1 / .116 34 / 15.4 No
H5X-40-208 12500.6002 208 19.2 4000 4000 212/100 7.3gal/27.6 liter 14.7gal/55.7 liter 4.1 / .116 34 / 15.4 No
H5X-15-120 12500.6001 120 12.5 1500 1500 212/100 3.7gal/14.0 liter 8.1gal/30.7 liter 4.1 / .116 34 / 15.4 Yes*
H5X-60-240 12500.6005 240 25.0 6000 6000 212/100 9.9gal/37.5 liter 18.6gal/70.5 liter 4.1 / .116 34 / 15.4 No
H5X-60-208 12500.6003 208 28.8 6000 6000 212/100 9.9gal/37.5 liter 18.6gal/70.5 liter 4.1 /.116 34 / 15.4 No
*Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Electrical: Models - 15 Models have attached cordset and require 2-wire grounded service rated 120V, single phase, 60 Hz.
Other models require 2-wires plus ground service, single-phase. Supplied strain relief on rear side of machine.
Plumbing: 20-90 psi (138-621 kPa). Machine supplied with 1 ⁄
4
" (6.3 mm) OD male flare fitting.
