10
INSTALLATION

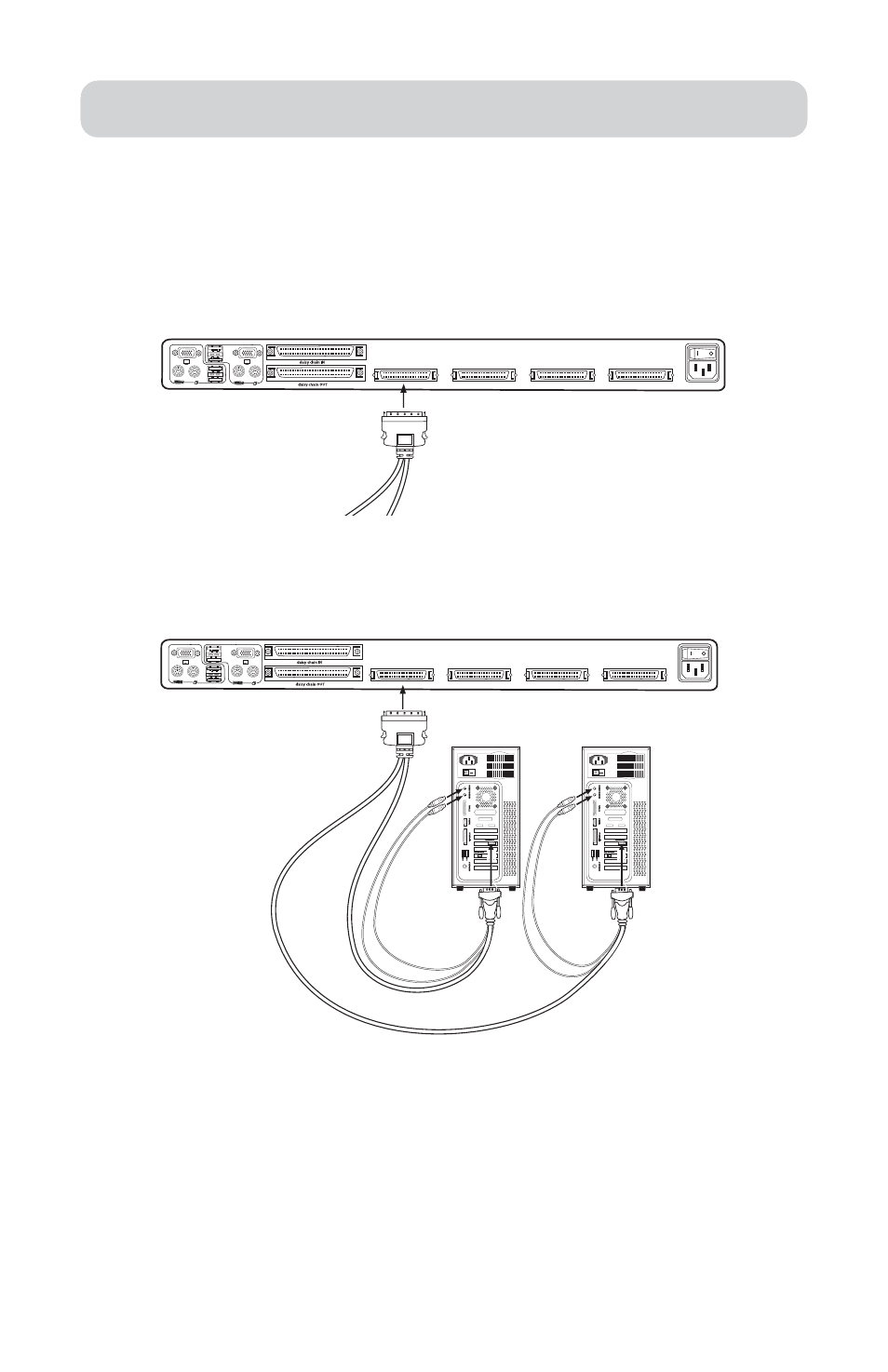

2. Using the OmniView ENTERPRISE Quad-Bus Series Dual-Port PS/2 KVM Cable
(F1D9400-XX), connect the high-density, 50-pin, SCSI 2-style connector to a free
Switch port, starting with the port for the first two computers. (For best results,
screw the connectors into the Switch and the computer, when possible.)
3. Connect the VGA and PS/2 connectors to the computer (make sure that you connect
the keyboard and mouse cables to the correct ports on your computer; purple
indicates the keyboard connector and green indicates the mouse connector).
4. Repeat steps 1 through 3 for each additional computer you wish to connect.
Hosts 1 & 2 Hosts 3 & 4 Hosts 5 & 6 Hosts 7 & 8
Hosts 1 & 2 Hosts 3 & 4 Hosts 5 & 6 Hosts 7 & 8
