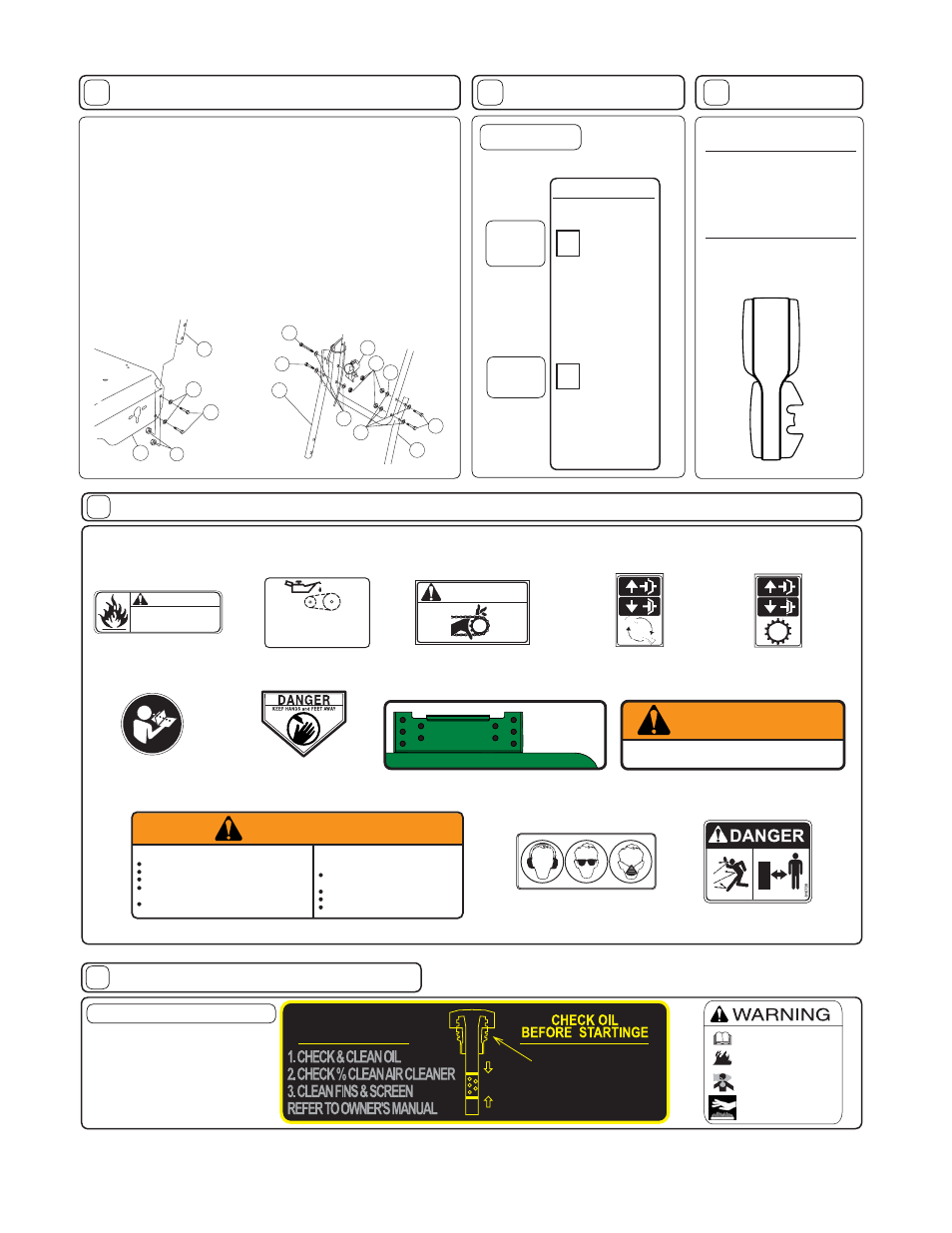

INSTRUCTION LABELS
CONTROLS
Throttle Control
These labels should be included on your Contour mower. If any of these labels are damaged, replace them before putting this
equipment into operation. Item and part numbers are given to help in ordering replacement labels..
Label Do Not Fill While
Engine Is Hot
Item 48 Part No.400268
EXPLOSIVE FUEL
STOP ENGINE AND ALLOW T O
COOL BEFORE REFUELING.
400268
WARNING
11 13
14
ASSEMBLY
CONTINUED
ENGINE LABELS 15
Label Cutting Hgt.
Item No. 58 Part No. 510147
Label Danger Keep Hands
and Feet Away
Item 61 PartNo.400424
WARNING
900327
Label Warning Guards
Item 63 Part No.900327
Label Mower Instruction Item No. 59 Part No. 510207
FIXED THROTTLE
Engine speed is factory set.
KAWASAKI
'
'
.. ..
1. REMOVE unit from carton and allow upper handle (item 7) to lay
on ground behind unit.
2. REMOVE hardware items 8, 71, 78, 87, , 96, & 97 from temporary
storage positions on lower handles (items 10).
3. ATTACH lower handle (item 10) to the main frame using hardware
(items 71, 78, & 96) removed from the previous step (see figure
below).
4. ATTACH upper handle to lower as shown in page 10, and securely
tighten all fasteners.
Note: Be sure the engine starter rope is properly installed in the starter
rope guide (item 8) before tightening the corresponding fasteners
(see fi gure below).
5. CONNECT spark plug wire to spark plug.
Owner's
Manual
Check
Owner's
Manual
510267
Warranty
Card
Check
Warranty
Card
400972
Literature Checklist
12 LITERATURE ASSY
EVERY 10 HOURS
830502 OIL CHAIN
Label Oil Chain
Item 62 PartNo.830502
3 in.
3.5 in.
2.5 in.
4 in.
2 in. Make sure both
sides are set to
same height
WARNING
Do not operate unless deflector is in place
TO PREVENT INJURY
WARNING
Follow all instructions in Owner's Manual.
Go across slopes, not up and down.
Do not mow when children or others are around.
Look down and behind before and while moving
backwards.
Keep safety guards, shields, switches, and etc.
in place and working.
AVOID SERIOUS INJURY OR DEATH. OBJECT THROWN BY BLADE
CAN CAUSE SERIOUS INJURY.
Inspect area and remove debris before
mowing.
Keep children and others away.
Wear eye protection.
Do not operate unless guard is in place.
Label Warning Mower
Item No. 60 Part No. 510206
Speed Control
Push foward for faster
speed, Pull back for
slower speed
SPEED
3
2
1
Page 4 of 12
Label Clutch Drive
Item 101 PartNo.500176
Label Read Owner's Manual
Item 109 PartNo.890301
890254
Label Danger Flying Material
Item No. 111 Part No. 810736 Label Ear Eye Breathing
Item No. 110 Part No. 890254
500176
Label Clutch Blade
Item 84 PartNo.500177
500177
ENGINE
MAINTENANCE
DO NOT TURN CAP
ON THREADS WHEN
CHECKING OIL LEVEL.
FULL
ADD
FOR SAFE OPERATION
READ OWNER'S MANUAL.
GASOLINE IS FLAMMABLE
KEEP AWAY FROM FLAME
OR SPARKS.
EXHAUST GAS IS POISONOUS
DO NOT RUN ENGINE IN
AN ENCLOSED AREA.
TO VOID BURN, DO NOT
TOUCH HOT MUFFLER.
P/N 510256
78
87
8
78
96
96
96
71
10
7
71
78
54
96
10
