Brinkmann Portable Tailgate Gas Grill User Manual
Page 23

Wing Notch
Grill Body Slot

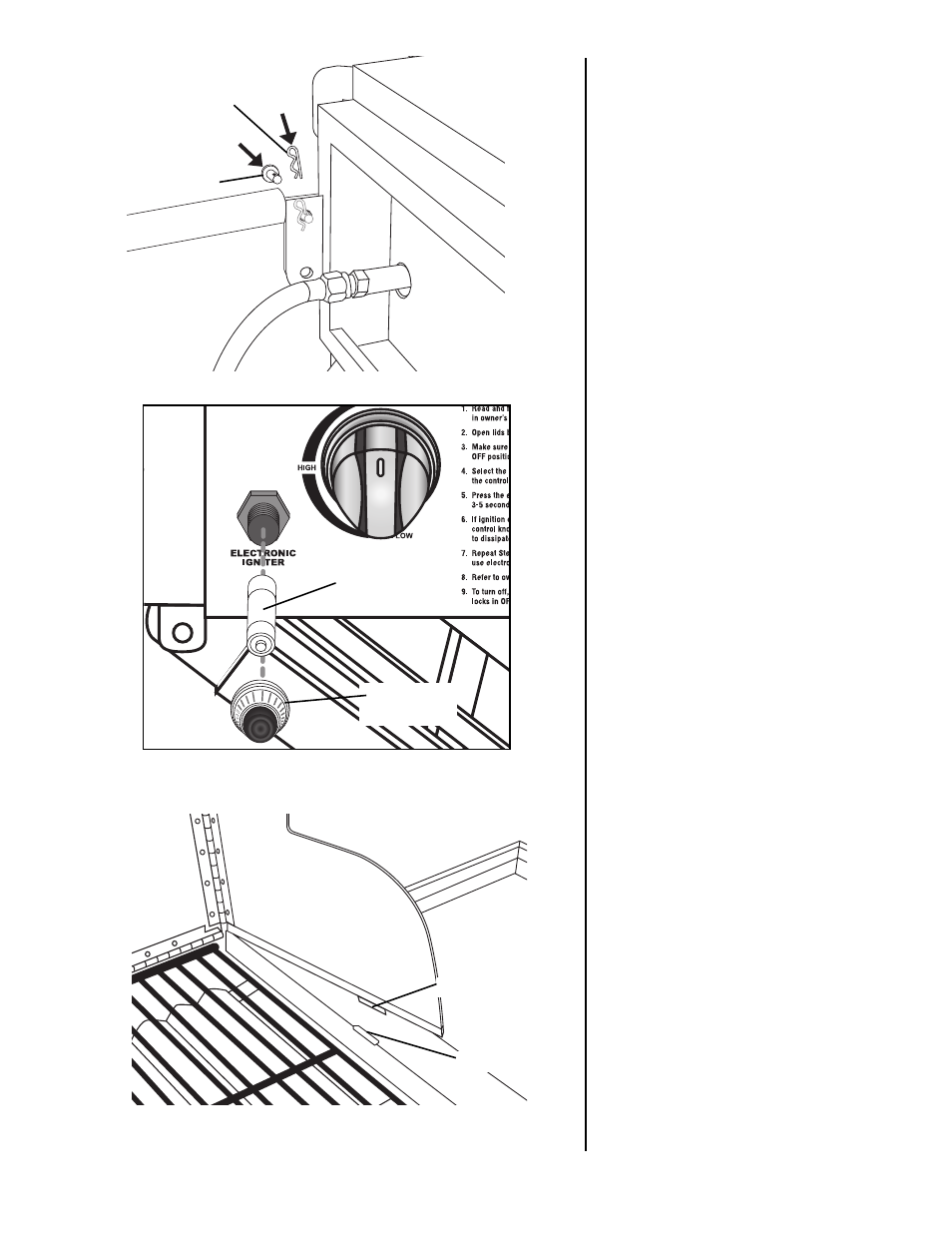

Step 3
Attach right grill handle to right
brackets using handle bolts and
cotter pins to secure.
Step 4
Remove electronic igniter button
and insert battery with positive end
of battery toward igniter cap.
Replace electronic igniter button
and make sure the igniter is working
properly.
Step 5
Lift wind guard and unfold wings.
Insert notch on wings into slots of
grill body.
22
Electronic
Igniter Button
Battery
Cotter Pin
Handle Bolts
