Basic information and preparations 12
ANTENNAS
The antenna requirements for good color television reception are more important than those for black & white
television reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connections that are provided with the various antenna systems.
1. A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal without
tools (not supplied).
2. A 300-ohm system is a flat “twin-lead” cable that can be
attached to a 75-ohm terminal through a 300-75-ohm
adapter (not supplied).

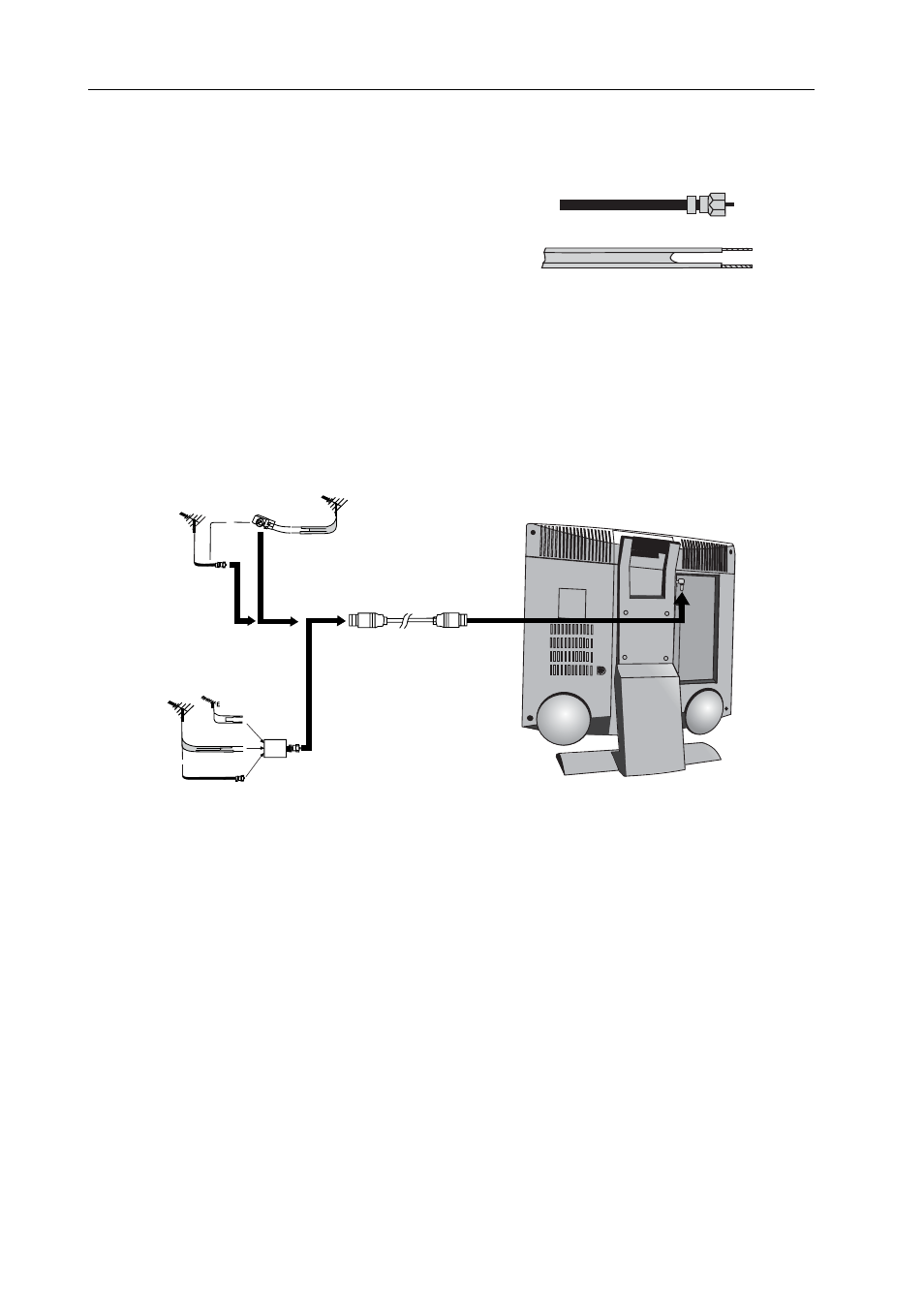

OUTDOOR ANTENNA CONNECTION
Use one of the following two diagrams if you connect an outdoor antenna.
A: Using a VHF/UHF combination outdoor antenna.
B: Using separate VHF and/or UHF outdoor antennas.
Connect the outdoor antenna cable lead-in to the ANT. terminal on the rear of the TV set.
A. Combination VHF/UHF Antenna
VHF/UHF
antenna
or
300/75-ohm
adapter
(not supplied)
VHF/UHF
antenna
300-ohm
twin-lead
To antenna input
terminal
75-ohm
coaxial cable
Antenna cable (not supplied)
B. Separate VHF and/or
UHF Antennas
VHF
antenna
UHF
antenna
300-OHM
twin-lead
Combiner
(not supplied) 300-OHM
twin-lead
IN OUT
75-ohm
coaxial cable
or
