TECH SPECS
Distance (Maximum) — User side: 984.2 ft. (300 m);
Server side: 164 ft. (50 m)
Resolution (Maximum) — 1900 x 1440 at 164 ft. (50 m)
CE Approval — Yes
Connectors —
KV1416A-R2, KV1424A-R2:
Local analog console port:
Monitor: (1) HD15 F;
Keyboard and mouse: PS/2: (2) 6-pin mini DIN F; USB: (2) Type A F;
User ports: (2) RJ-45;
Servers: (16) or (24) RJ-45;
Audio: (1) 3.5-mm jack;
Serial RS-232 (DTE): (1) DB9 F;
Power control: (1) DB9 M;
Power input: (1) IEC 320 M; (1) barrel F for optional redundant
power supply;
Modem: (1) DB9 M;
IP: (1) RJ-45 10-/100-Mbps Ethernet, autosensing;
KV1400A: (1) RJ-45, (2) 6-pin mini DIN M, (1) HD15 M;
KV1402A: (1) RJ-45, (2) 6-pin mini DIN M, (1) HD15 M, (1) 3.5-mm plug;
KV1401A: (1) RJ-45, (1) USB Type A M, (1) HD15 M;
KV1403A: (1) RJ-45, (1) USB Type A M, (1) HD15 M, (1) 3.5-mm plug;
KV1404A: (1) RJ-45, (1) 8-pin mini DIN M, (1) HD15 M, (1) 3.5-mm plug
Power — 100–240 VAC, 50–60 Hz, autosensing
Size — KV1416A-R2, KV1424A-R2: 1.75"H (1U) x 19"W x 11"D
(4.4 x 48.3 x 27.9 cm)
Item Code
ServSwitch ™ CX with IP
(1) Analog Console Port + (1) IP User Port
+ (2) Remote User Ports
(16) Servers KV1416A-R2
(24) Servers KV1424A-R2
For each server connection, you need…
ServSwitch CX Server Access Modules
PS/2 ® KV1400A
with Audio KV1402A
USB KV1401A
with Audio KV1403A
Sun ® with Audio KV1404A
To connect a remote PS/2 console to the ServSwitch CX
with IP using CATx cable, order…
ServSwitch CX Remote Units
Basic KV04-REM
with Audio KV04A-REM
with Audio and Skew Compensation KV04AS-REM

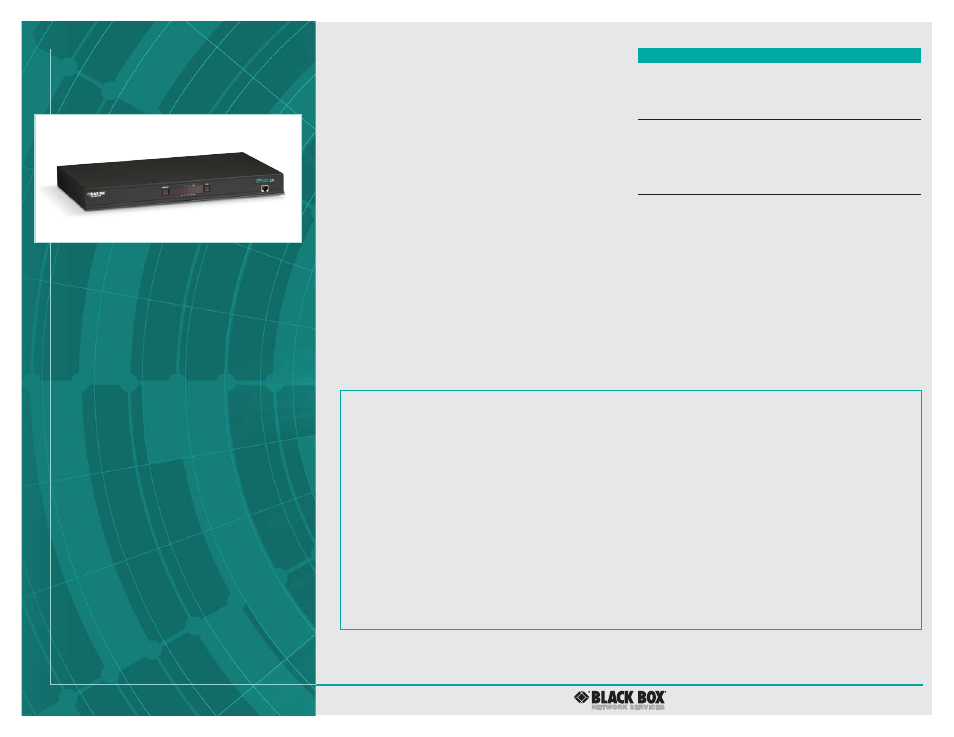

KV1416A-R2
