BLACK BOX
®
2 of 3
01/26/2010
#26558

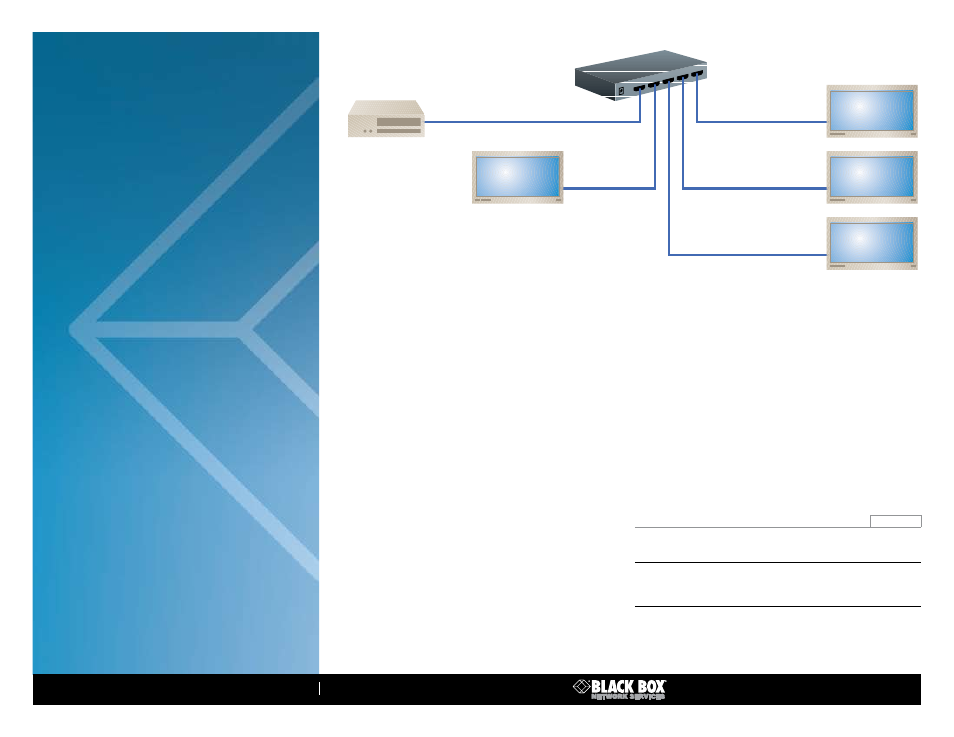

Typical application.
»
Split HDMI audio and video signals for display
on more than one HD LCD, plasma, or other
high-def screen.
»
Drive signals as far as 40 feet (12.1 m).
»
Send video from a DVD player, satellite
receiver, digital recorder, or even a PC.
»
Cascade up to three units for more outputs.
»
The digital signals are buffered
so uncompressed HD video and multichannel
audio are reproduced without loss.
FeaTureS
BLACK BOX
®
HDMI Splitters enable you to stream High-Definition
Multimedia Interface (HDMI) signals from a single source to multiple
screens and create impressive high-definition presentations.
The source of your video can be an HD DVD player, D-VHS player,
satellite receiver, digital recorder, or other type of HDMI equipment,
or a PC with a DVI connector. And, on the output side, you can use
two or four high-definition plasma, LCD, or similar screens.
The splitters buffer the digital signal so uncompressed HD video
and multichannel audio are reproduced without any loss. They also
feature 1.65-Gbps bandwidth for transmitting HDMI signals in their
entirety error-free.
The HDMI Splitters are ideal for trade shows, conference rooms,
training rooms, and home theater setups. Plus, they’re a great choice
for splitting signals in retail applications where you want to keep
source equipment in a secure area. You can even cascade multiple
units up to three levels to output HDMI video/audio to additional
displays in widely distributed applications.
They also support HDTV resolutions up to 1080i and 1080p
and feature a compact design for use in crowded equipment rooms
and A/V cabinets.
OVERVIEW
HDMI Splitter
(AC552A-4)
HDTV screens
HDTV screen
HD DVD player or other HDMI video
source
(can also use a PC with
DVI output)
T e C H S P e C S
Bandwidth (Maximum) — 1.65 Gbps
Distance (Maximum) — 40 ft. (12.1 m)
MTBF — 95,000 hours (calculated estimate)
Resolution — Output and input: PC: VGA, SVGA, XGA, SXGA, UXGA
(1600 x 1200);
Component (Y-Pb-Pr): 480i, 480p, 720p, 1080i, 1080p
CE Approval — Yes
Connectors — Input: (1) HDMI F;
Output: (2) or (4) HDMI F
Indicators — (1) Power LED
Power — Input: 100–240 VAC, 50–60 Hz, autosensing;
Output: External 9 VDC (center-positive >1000 mA)
Size — 0.9"H x 7.5"W x 3.75"D (2.3 x 19.1 x 9.5 cm)
Weight — 1.1 lb. (0.5 kg)
Item
Code
HDMI Splitters
2-Channel
aC552a-2
4-Channel
aC552a-4
For DVI connections, an adapter is required. Order…
HDMI Adapters
HDMI Male to DVI Female
Fa790
HDMI Male to DVI Male
Fa795
HDMI Swivel Adapters, 24-Pin
HDMI Male to DVI Female
Fa791
HDMI Female to DVI Male
Fa793
