Functional description and specifications, Demolition hammer – Bosch 11304 User Manual
Page 6
FIG. 2
-6-
Model number
11304
Voltage rating
120 V 50 - 60Hz
Amperage rating
15.0 A
No load speed
n
0
1,340/min
Shank style
Standard 1-1/8" hex, air tool steel
or Bosch internal locking steel.
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

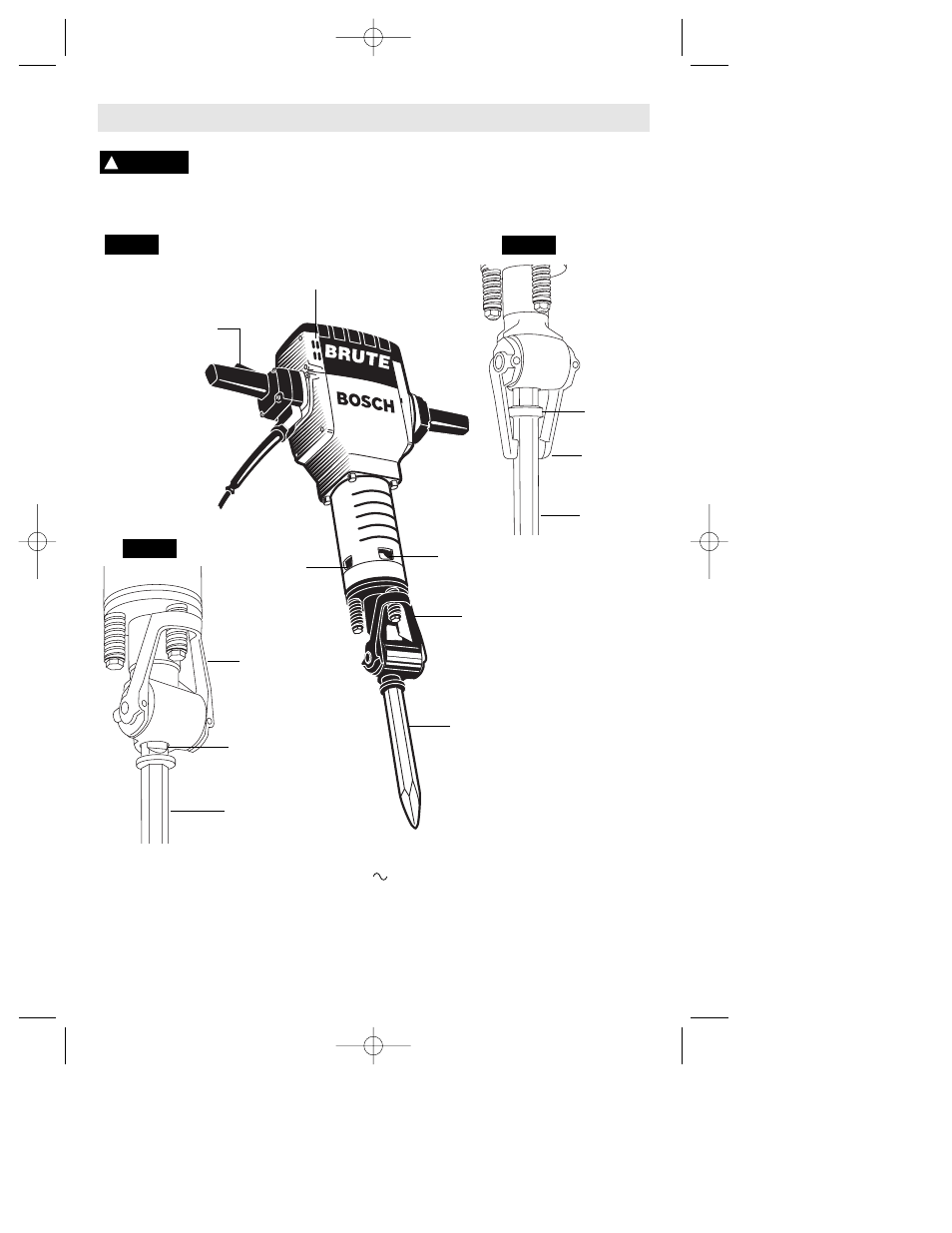

Demolition Hammer
PADDLE ON/OFF
SWITCH
BOSCH
INTERNAL
LOCKING
STEEL
AIR VENTS
FIG. 1
FIG. 3
TOOL
RETAINER
LEVER
NOTCH
(Bosch internal
locking steel)
BOSCH
INTERNAL
LOCKING
STEEL
TOOL
RETAINER
LEVER
COLLAR
(Standard
air steel)
STANDARD
AIR STEEL
AIR VENTS
AIR VENTS
TOOL
RETAINER
LEVER
