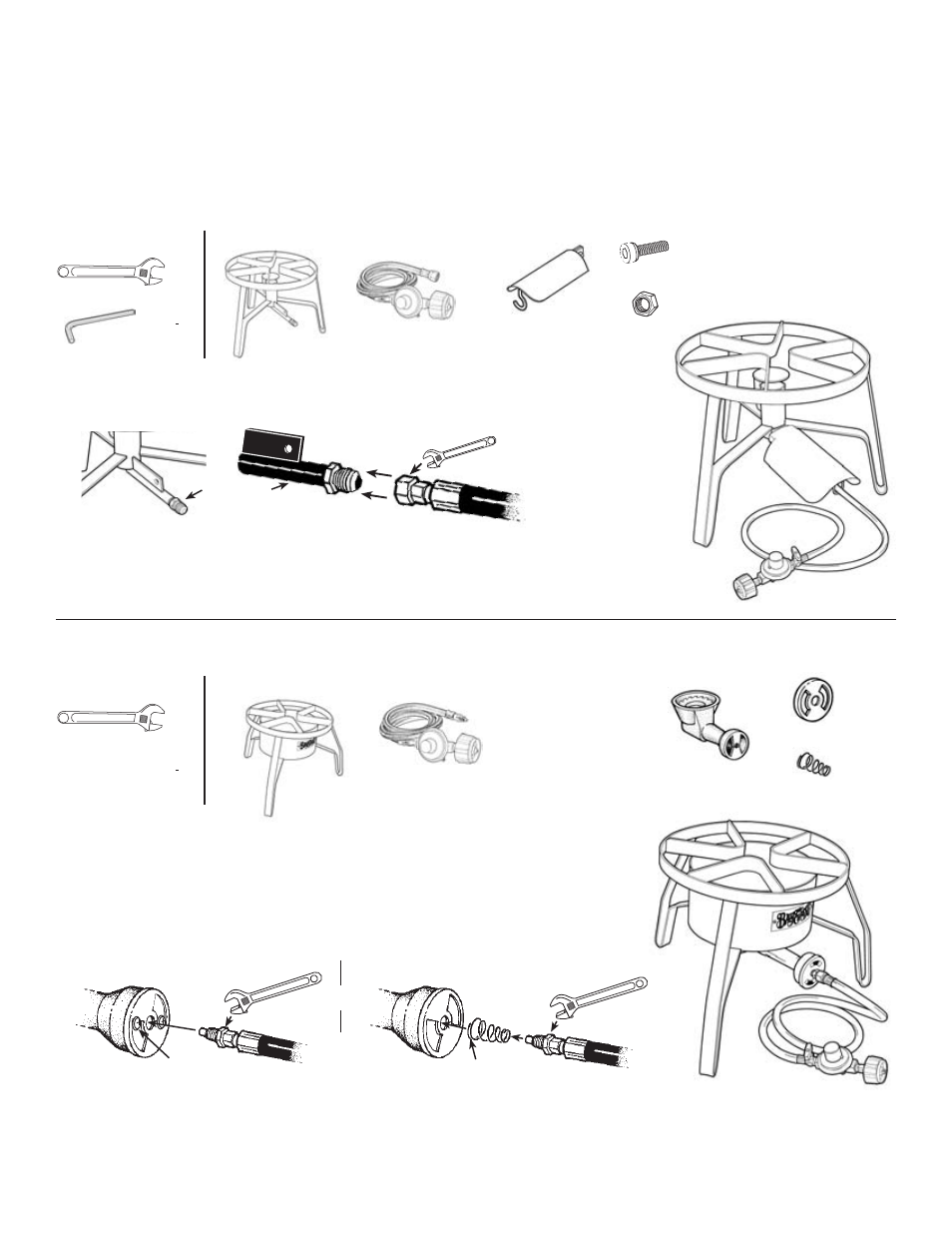

ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING
YOUR COOKER. Inspect contents in the box to ensure all parts are included and undamaged.
FOR MISSING PARTS OR ASSISTANCE, PLEASE CALL 1-800-864-6194 M-F 8am - 5pm CST.
Proof of purchase will be required.
TOOLS REQUIRED:
Adjustable Wrench
9
PARTS INCLUDED:
1- Frame
1- Regulator
Hose Assembly
Model #SP1 Jet Cooker
TOOLS REQUIRED:
Adjustable Wrench
PARTS INCLUDED:
1- Frame
1- Regulator
Hose Assembly
Model #SP10 Cooker
Hex Wrench, provided
1. Remove components from the box and packing.
2. Attach Hose to Orifice Bar - Screw Hose on to end of Orifice Bar. Wrench tighten.
Refer to Connecting Regulator Hose Assembly to Cooker on page 12.
3. Attach Hose Guard to Cooker - Line up hole on Hose Guard with hole on Support Bar.
Attach using Hex Bolt and Nut. Use Wrench to tighten.
1. Remove components from the box and packing.
2. Attach Burner to Crossbar - Remove locking nut from bottom
of burner. Line up burner bolt to hole in crossbar. Insert the bolt through
the crossbar and screw on locking nut. Wrench tighten.
3. Attach Hose to Burner - In one of two ways as shown below:
Refer to Connecting Regulator Hose Assembly to Cooker on page 12.
NOTE: Do not over tighten brass hose connector to burner. The air control shutter
must be able to easily turn for adjustment of flame quality. If you over tighten the brass hose connector to the burner and
the air shutter cannot turn, then unscrew the brass hose connector until the shutter can be easily turned... Very Important!
ASSEMBLED
UNIT
ASSEMBLED
UNIT
1 - BG10 Burner
with Locking Nut
1 - Hex Bolt
1 - Nut 1- Hose Guard
1- Air Shuter
1- Spring
NOTE: BG10 Burner
may have Air Shutter
attached with screws
instead of using a
Spring.
Turn Air Control Shutter to
adjust flame quality Turn CLOCKWISE
Wrench Tighten
OR
Turn CLOCKWISE
Wrench Tighten
Turn Air Control Shutter to
adjust flame quality
Place large end of spring
against Air Control Shutter Screws may need tightening
DO NOT over tighten!
IMPORTANT:
Must be able to turn
Air Control Shutter...
DO NOT over tighten!
Turn CLOCKWISE
Wrench Tighten
Orifice Bar
from SP1 Jet Cooker
NO
SPRING
