Page 5
Exploded Views and Parts Lists
Item Part #
Description
1
186059GS
ADAPTER, Mounting, Alternator
2
190032GS
ASSY., Rotor (Includes Item 8)
3
206562GS
STATOR
4
186060GS
RBC, with O-Ring (p/n 189197GS)
5
86308HGS
HHCS, M6 - 1.0 x 140 SEMS
6
91825GS
ASSY., Holder, Rectifier/Brush
7
66849GS
TAPTITE, M5 - 0.8 x 16
8
65791GS
BEARING
9
81917GS
PIN, Roll, 4mm x 10

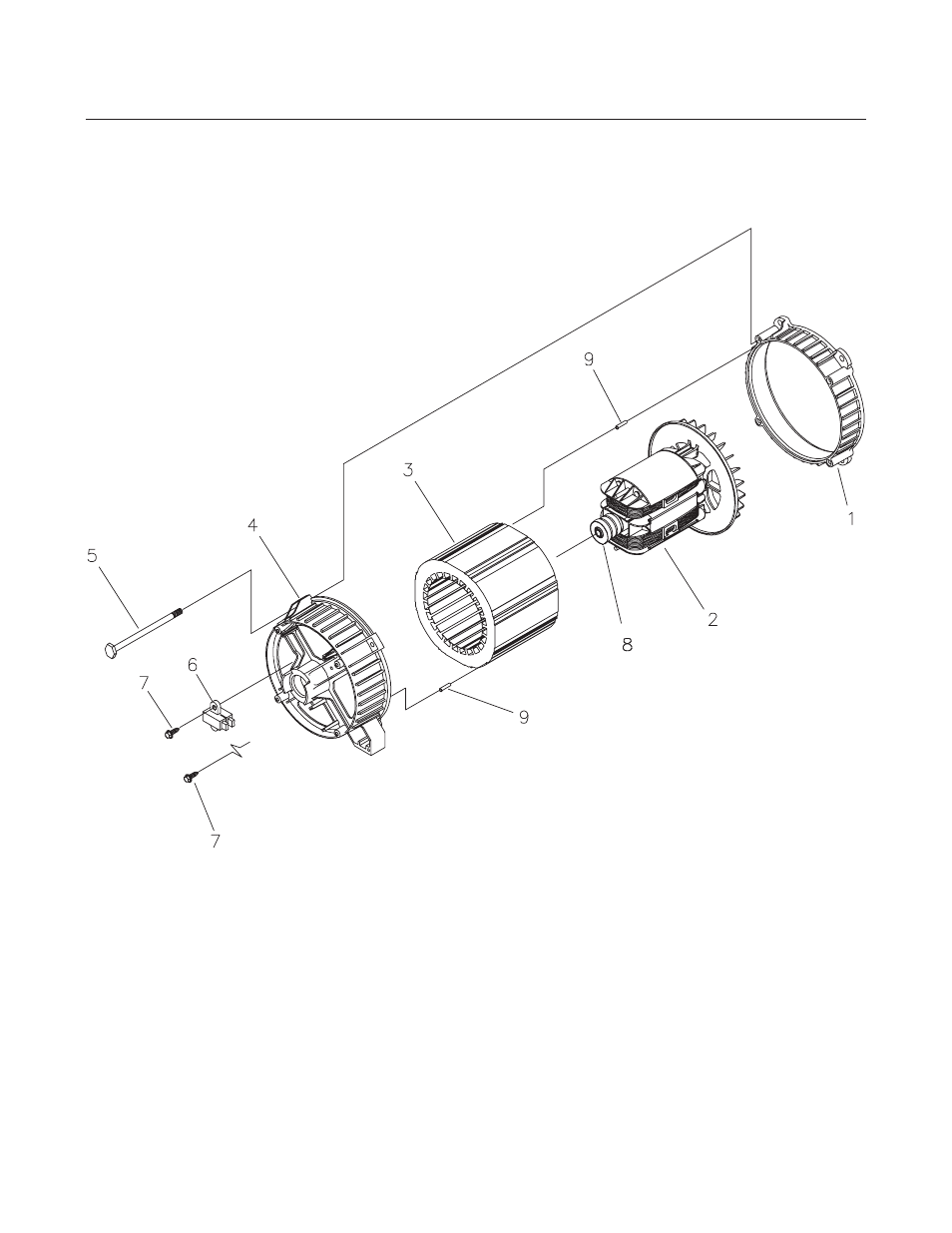

ALTERNATOR EXPLODED VIEW & PARTS LIST
5
