3. Mounting the cable basket

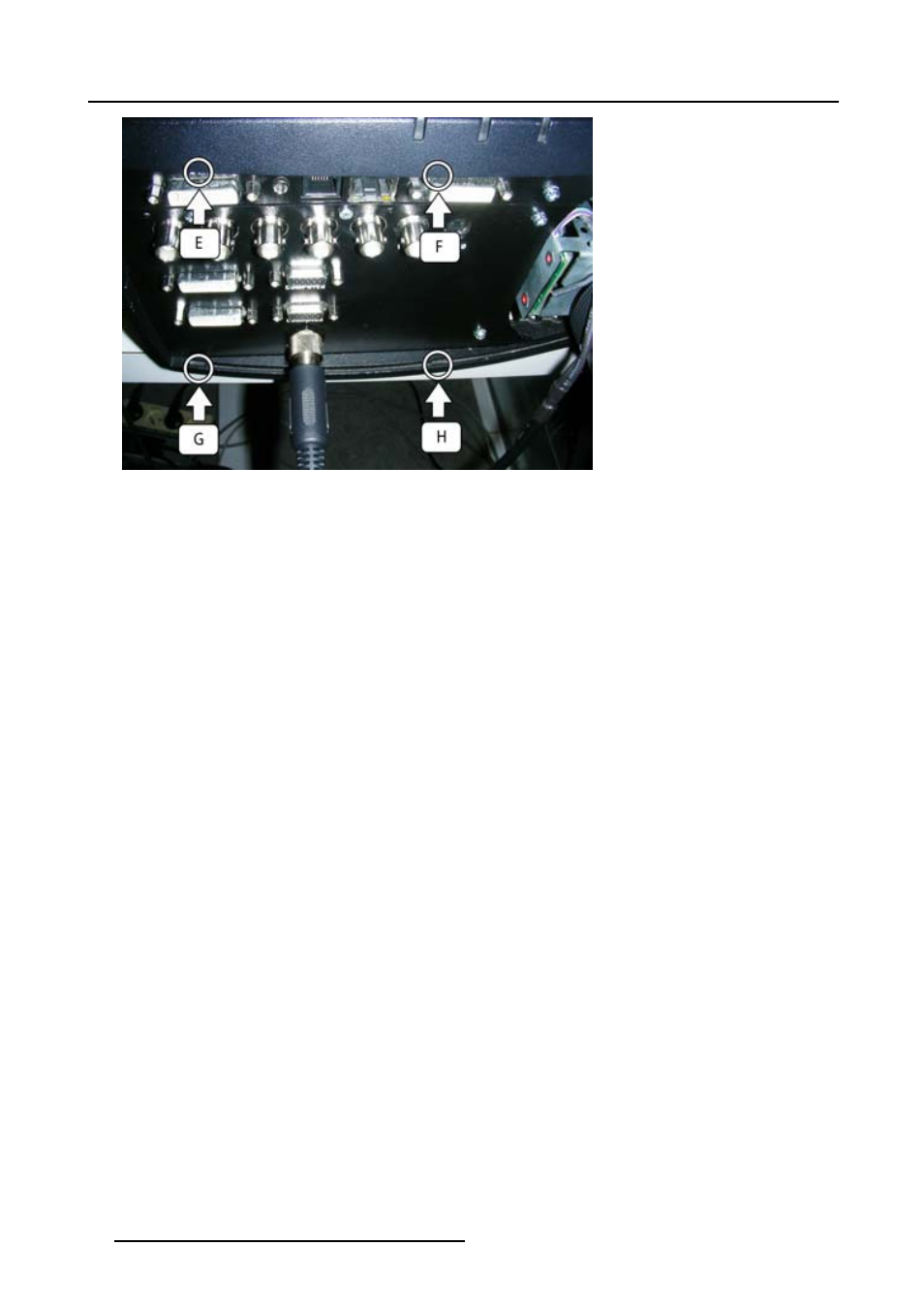

Image 3-2
Projector: top slots (E), (F) and bottom slots (G), (H)
4. Now press the top of the cable basket slightly downwards so that E and F of the cable basket fits into the top two slots E and F
of the projector
5. After fitting the cable basket to the slots, push the cable basket towards the projector slowly so that it fits tight
