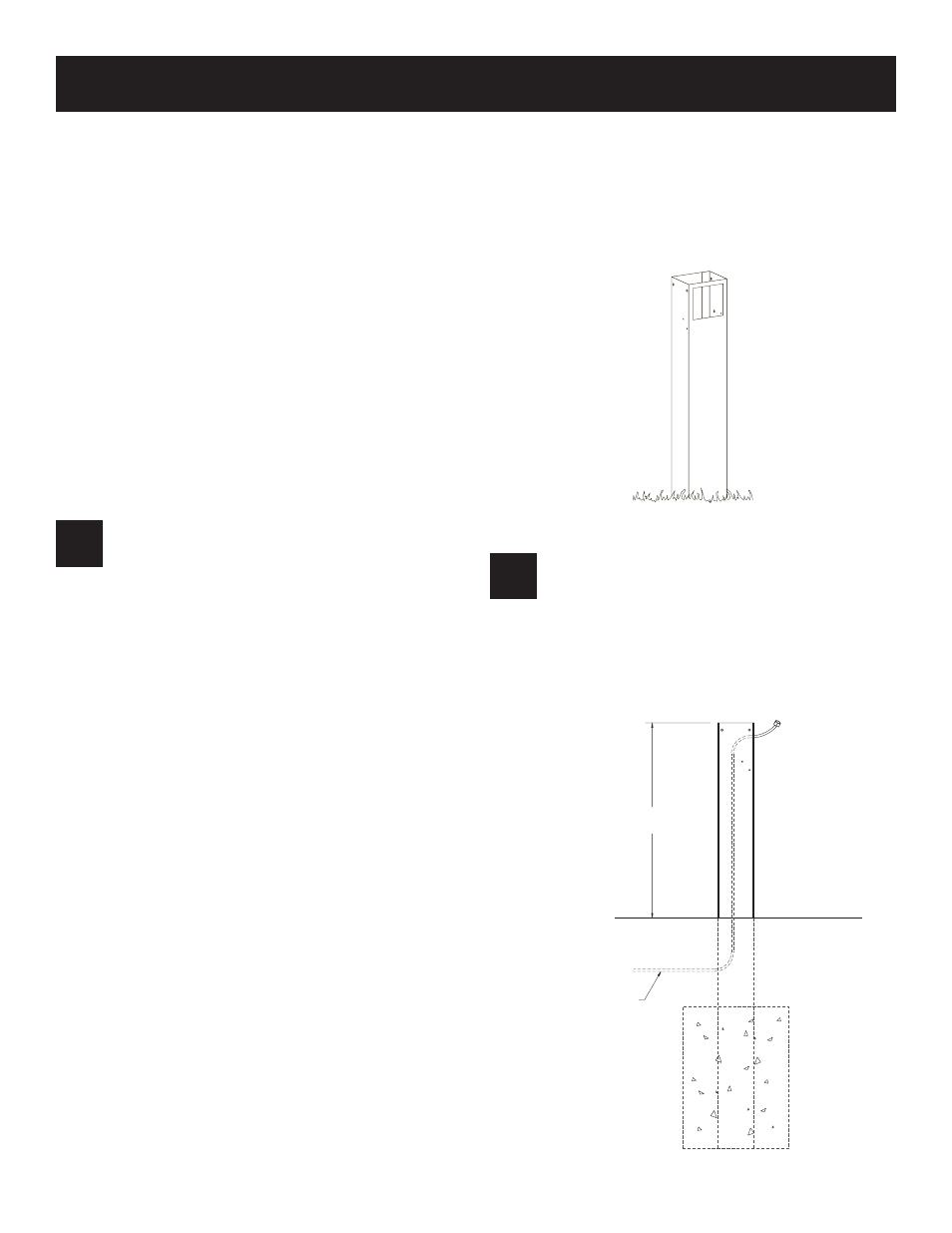

Page 6

B101074-0-1006

The BP48 and SSP48 In-Ground Posts are only for use

with Broilmaster Gas Grills. Before proceeding with

installation read your Owner’s Manual for the proper

location and minimum clearances to combustible ma-

terials for your grill and in-ground post.

Verify that all parts listed in the exploded view of this

product have been included before beginning this in-

stallation.

Recommended Tools:

• Two adjustable wrenches or a socket set

• A medium Phillips screwdriver

• Pipe thread sealer or Teflon tape (for gas connec-

tions)

• Soapy water solution (to test for leaks)

Dig a hole approximately 12" in diameter and 24" in

depth at the desired grill location.

Note: “Normal Installation” height is achieved when the

top of the 48" post (7) is 25 1/4" above ground. This

height provides a cooking surface height of 34 1/2"

above ground when grids are placed in the high level

position.

Carefully lower the in-ground post into the hole using

the following guidelines:

• The rectangular cut-out is located near the TOP of

the post and should be above ground after installa-

tion. Figure 1.

• The rectangular cut-out must face in the SAME

direction as the front of the grill.

• Hole depth and post measurements should be

checked to ensure desired height.

Note: Make any adjustments at this time.

Prepare concrete or a standard pre-mix according to

the manufacturer’s package directions.

Position the 48" post in the center of the hole. A level

should be used when aligning the post to achieve precise

vertical alignment. Hold the post in place while pouring

the concrete mixture into the hole around the post.

After the concrete has set, insert the stainless steel flex

tube assembly in the post. Figure 2.
Note: Do not attempt to cut or alter the stainless steel

flex tube assembly in any way.

C

AUTION

: T

HE

CONCRETE

MIXTURE

MUST

NOT

COVER

THE

GAS

SUPPLY

ENTRY

HOLE

ON

THE

POST

. T

HE

GAS

SUPPLY

ENTRY

HOLE

(2"

DIAMETER

HOLE

)

IS

LOCATED

18 3/4"

FROM

THE

BOTTOM

OF

THE

POST

.

Make a final alignment check with the level, and adjust

as needed. Allow concrete to set (usually 24 hours).

F

IGURE

2

1

I

N

-G

ROUND

P

OST

I

NSTALLATION

2

25-1/4"

GAS SUPPLY

PIPING SYSTEM

F

IGURE

1
