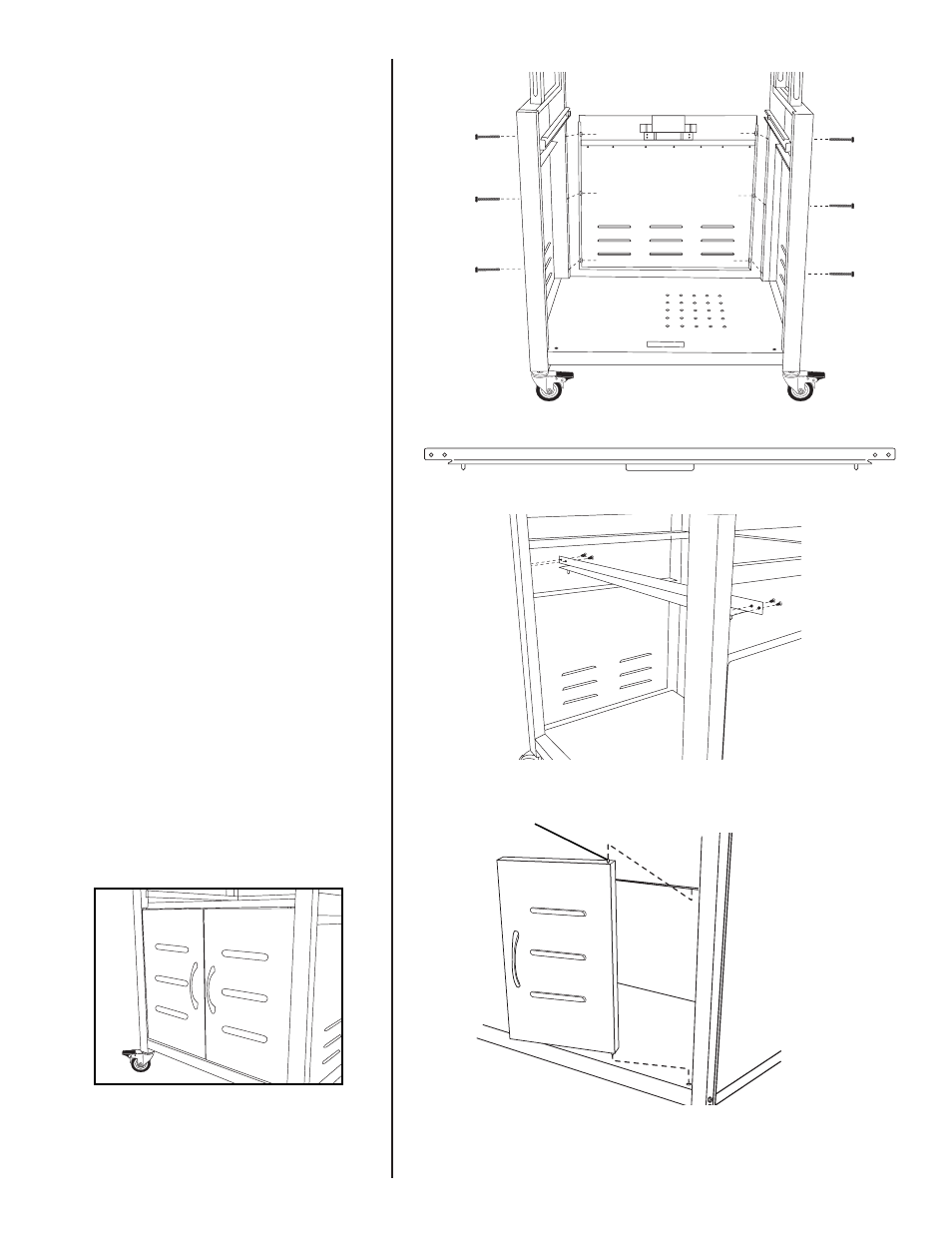

Step 4
Attach back cart panel by using six
M6 X 60mm bolts.
Note: Leave bolts hand tight until
Step 11.
Step 5
Install door bracket using the four
#10 X 1/2” self taping screws. Make
sure door stop is set toward back of
cart.
Step 6
Insert right side door, placing lower
pivot into the pivot hole on bottom
cart panel, then align door with cart
frame. Depress spring pin located
on top edge of door and slide door
toward side cart panel until spring
pin locks into hole in door bracket.
Repeat for other door.
Door bracket
Spring Pin
