Blue Rhino CBT626A - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
4
1
3
Parts List
1 Handle
2 Air Vent
3 Lid
4 Warming Rack
5 Cooking Grid
6 Charcoal Grid
7 Top Hinge (2)
8 Bottom Hinge (2)
9 Cooking Grid Support (4)
10 Bottom Bowl
11 Air Damper
12 Latch
13 Leg (4)
5
6
2

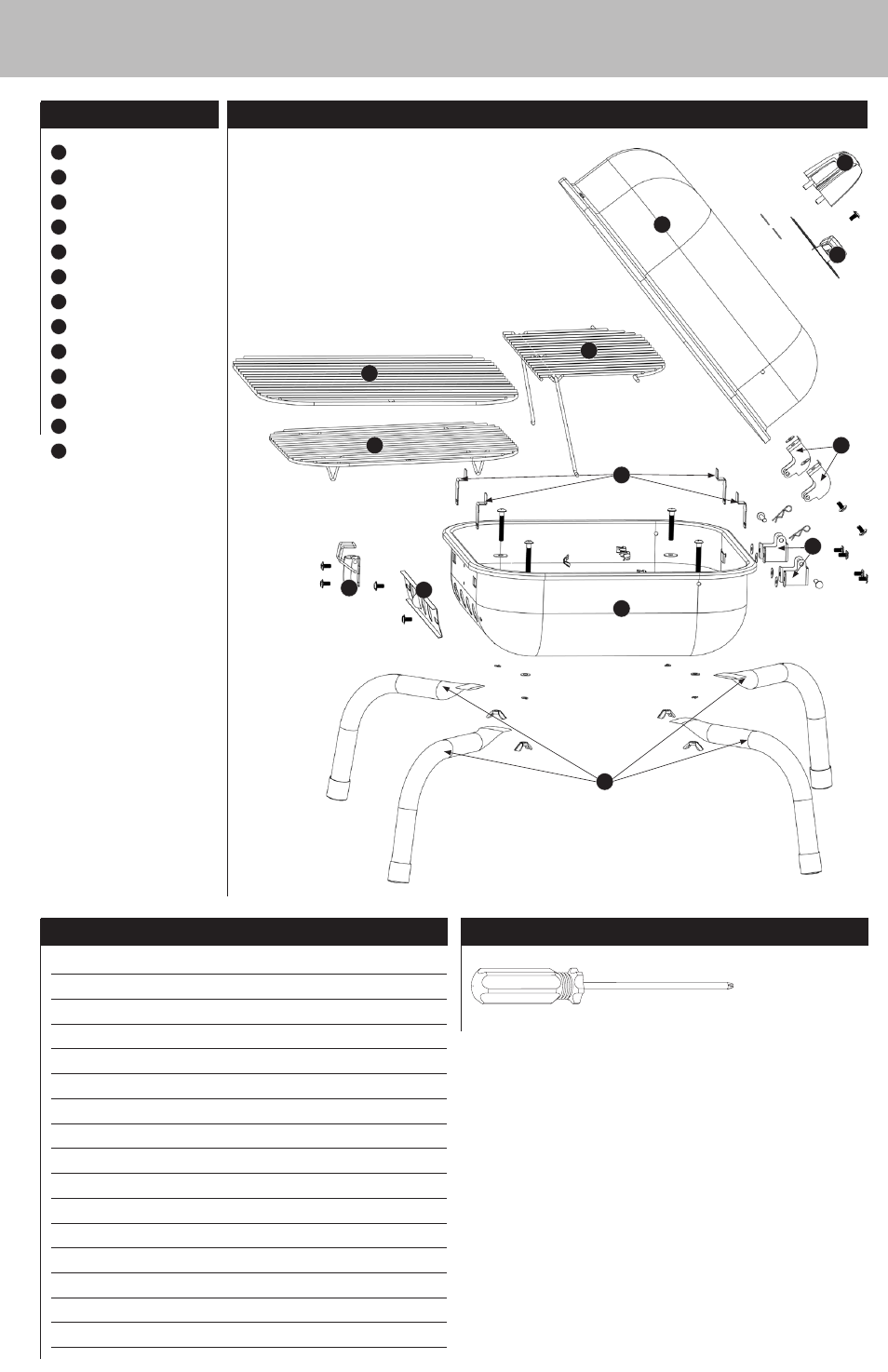

Exploded View
10
11
Hardware
A
Screw M4x12 Zinc Plated Phillips Truss Head 2 pcs
B
Screw M4x12 Zinc Plated Phillips Truss Head 2 pcs
C
Screw M5x12 Zinc Plated Phillips Truss Head 7 pcs
D
Screw M5x30 Zinc Plated Phillips Truss Head 4 pcs
E
Wing Nut M4 Steel 4 pcs
F
Wing Nut M5 Steel 11 pcs
G
Wing Nut M6 Steel 2 pcs
H
Washer ø4 Zinc Plated 2 pcs
I
Washer ø5 Zinc Plated 10 pcs
J
Washer ø6 Zinc Plated 6 pcs
K
Washer ø6 Heat Resistant 8 pcs
L
Lock Washer ø4 Zinc Plated 2 pcs
M
Lock Washer ø5 Zinc Plated 11 pcs
N
Lock Washer ø6 Zinc Plated 2 pcs
O
Pin ø6 x 100 Black Coated 2 pcs
P
Cotter Pin ø1.4 x 30 Zinck Plated 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
12
7
8
9
13
