Installation FL-1H, FL-1L
Bradley Corporation • 215-1511 Rev. D; EN 07-808 5/30/07 7

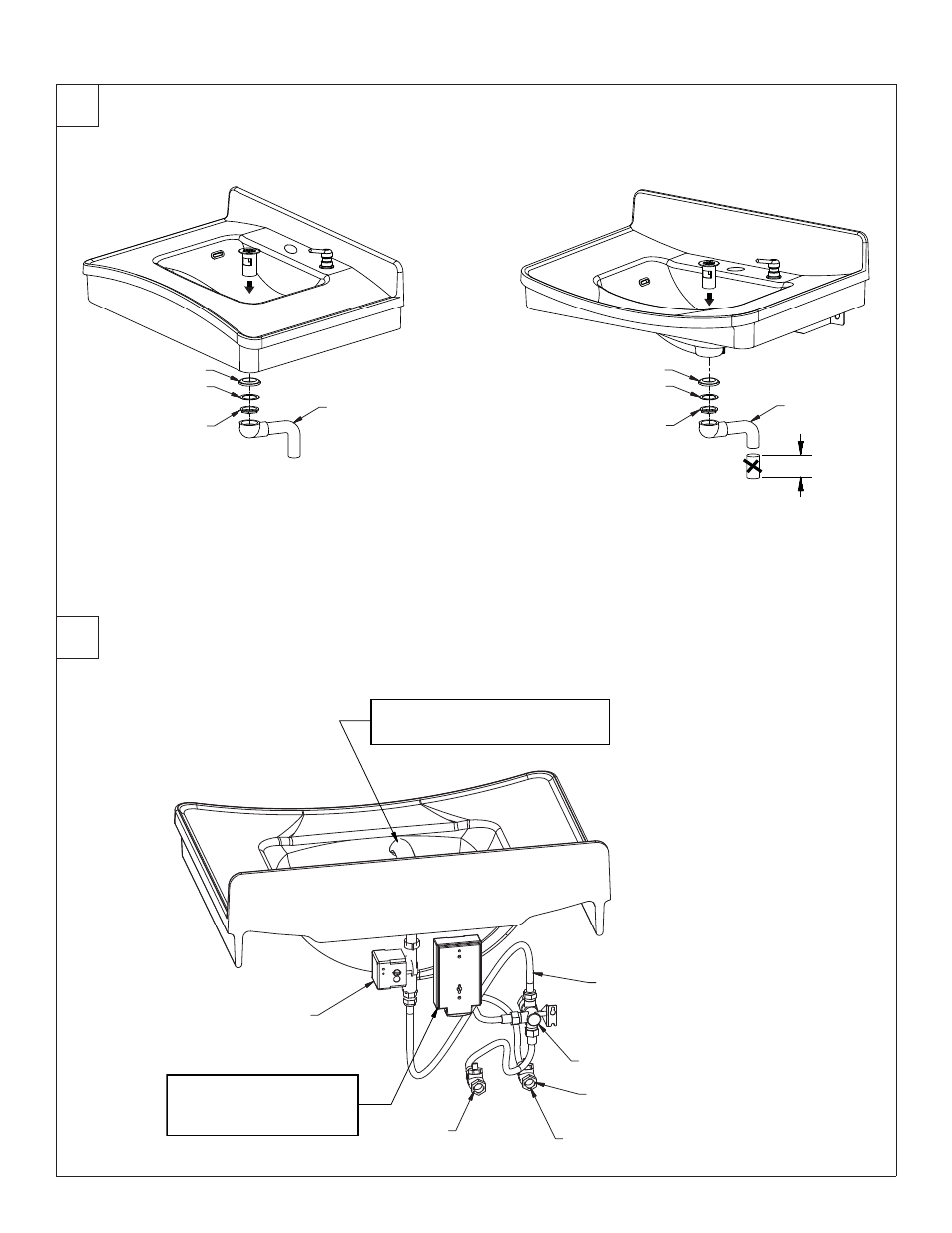

4 Faucet Battery Box
3 Drain and Tailpiece
4" (102mm)
Friction
Rubber
Nut
Friction
Rubber
Nut
Tailpiece Tailpiece
FL-1H
FL-1L
B Install the faucet according to
manufacturer’s instructions
Faucet Valve
Control Module
1/2" Flexible Hose (qty. 3)
(269-1735)
Hot
Cold
Mixing Valve
A
Mount the Faucet
Battery Box to the wall
at desired location.
Stop/Check Valve
FL-1L shown
FL-1H is similar
