The B1520DSP allows you to connect and mix two keyboards. If you want to
play more than two keyboards, you can use a submixer (e.g. MicroMIX MX400)
to mix down the signals and route them to the B1520DSP using submixer output
connectors. The second MIC/LINE input can be used to connect the monitor signal
from the PA mixing console, so that you can also hear the other members of
your band.
5. Installation
Both audio inputs and outputs of the BEHRINGER B1520DSP are fully balanced.
To maximize interference compensation, try to establish balanced connections to
other equipment, whenever possible.
◊ Make sure that only competent people install your B1520DSP.
They must be sufficiently earthed during and after the installation
process. Otherwise, electrostatic discharges may negatively affect the
operating characteristics of your equipment.
output
For unbalanced use, pin 1 and pin 3
have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
input
1 2
3
1 2
3
Balanced use with XLR connectors

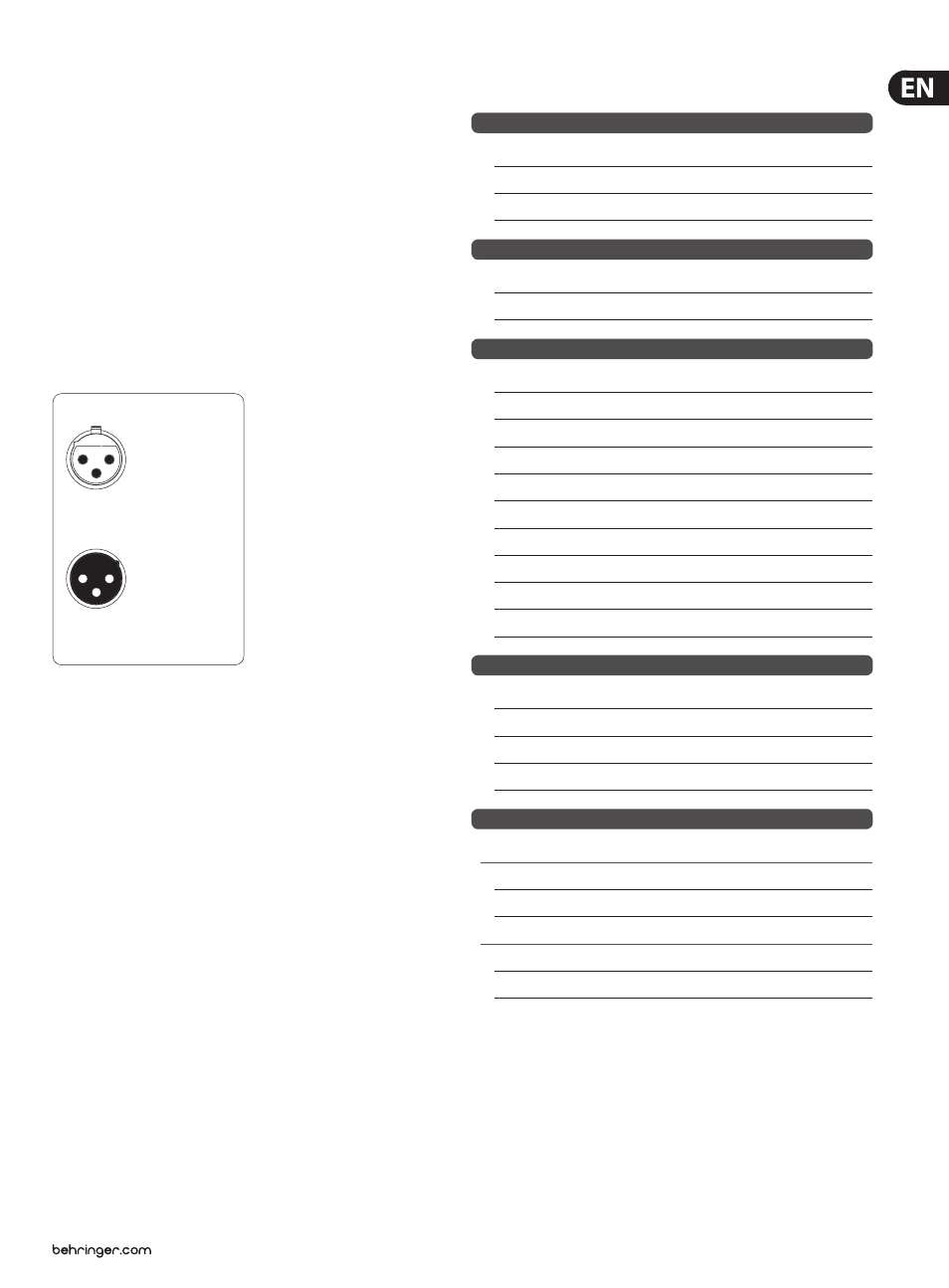

Fig. 5.1: XLR connector
6. Specifications
Audio Inputs
MIC/LINE (2) XLR (balanced)
Input impedance 27 kOhm
Sensitivity -40 to +10 dBu
Audio Outputs
LINE OUT XLR (balanced)
Output impedance 120 Ohm
Processing
DSP 24-bit Motorola
AD/DA converter 24-bit / 48 kHz
Limiter dual protection for woofer and driver
Dynamic EQ dual parametric EQ’s
NOISE GATE variable (off to -30 dB)
TIMED TURNOFF switchable (3 min < -45 dBr)
CONTOUR switchable speech / music contour
EQ HIGH +/- 15 dB (12 kHz)
EQ LOW +/- 15 dB (100 Hz)
LOW CUT 40 - 160 Hz (24 dB/Oct.)
Loudspeaker System Data
Frequency range 40 Hz to 20 kHz
Crossover Butterworth, 1.5 kHz, 24 dB/Oct.
Max. sound pressure level 128 dB @ 1 m
Dispersion angle 90° x 45°
Output Power
Low-Frequency Range
RMS @ 1% THD 320 W @ 8 Ohm
Peak Power 460 W @ 8 Ohm
High-Frequency Range
RMS @ 1% THD 80 W @ 8 Ohm
Peak Power 140 W @ 8 Ohm
