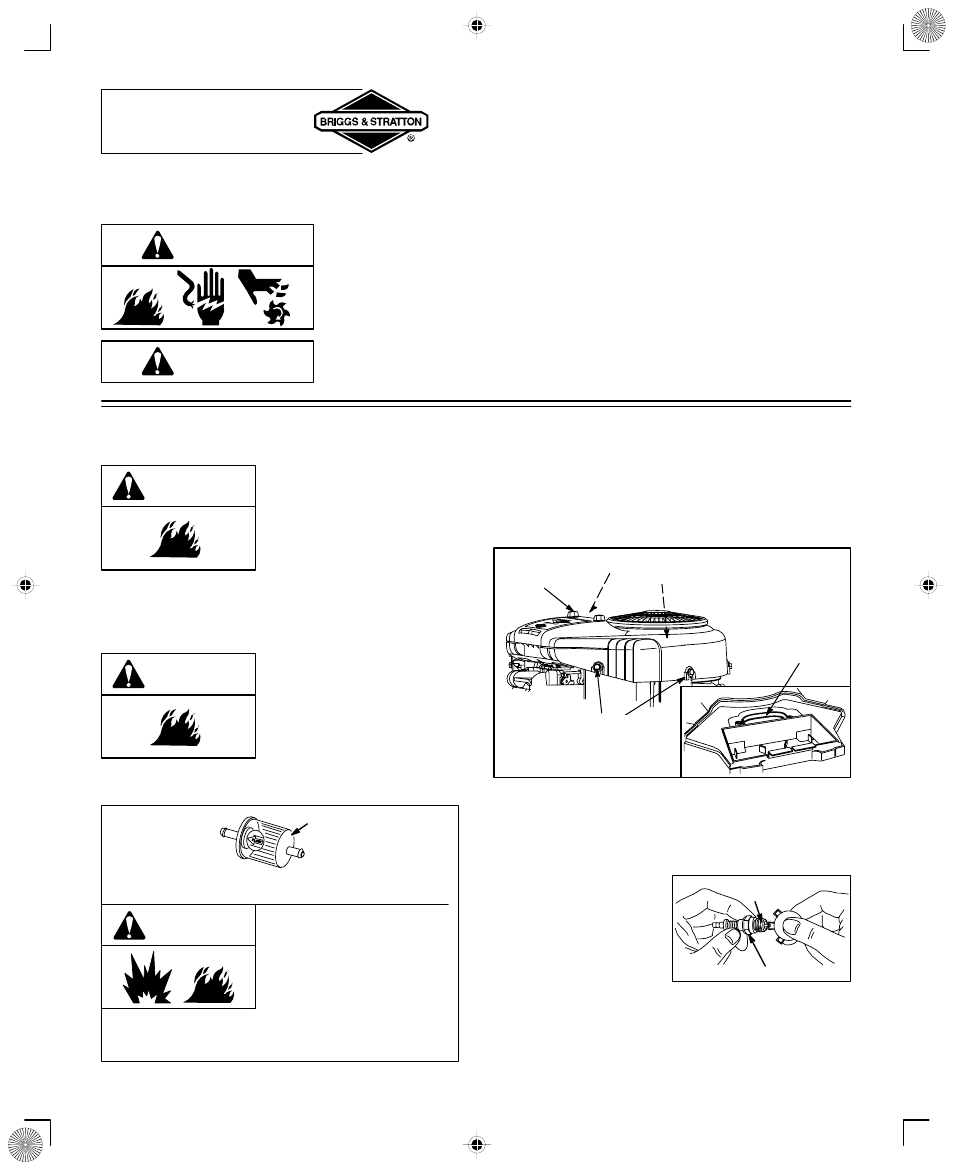

MAINTENANCE

ENGINE AND ENGINE PARTS

We recommend that you see an authorized Briggs & Stratton Service Dealer for all maintenance and service of the engine
and engine parts. Use only genuine Briggs & Stratton parts.

WARNING

If you perform any maintenance on the engine, first disconnect the spark plug wires
from the spark plugs, and disconnect the battery at the negative terminal (electric
starter engines only) to prevent unintentional sparking. Unintentional sparking can
result in fire or electric shock. Unintentional start-up can result in entanglement,
traumatic amputation or laceration. Use only correct tools.

WARNING

•

Do not strike the flywheel with a hammer or hard object because the flywheel may
later shatter during operation.

•

Do not tamper with governor spring, links or other parts to increase engine speed.

MUFFLER

Replacement parts for the
muffler must be the same and
installed in the same position
as the original parts, other-
wise fire can occur.

If muffler is equipped with spark
arrestor screen, remove

screen for inspection. Replace screen if damaged or plugged.

WARNING

FUEL SYSTEM

Replacement parts for fuel
system (cap, hoses, tanks,
filters, etc.) must be the same
as original parts, otherwise
fire can occur.

WARNING

FUEL FILTER (if equipped)

[1]

Disconnect spark plug
wires and keep away
from spark plugs.

[2]

Drain fuel tank or close
fuel shut-off valve before
replacing fuel filter.
Otherwise, fuel can leak
out, creating a fire/explo-
sion hazard.

PART NO. 493629

ОО

FILTER

WARNING

AIR COOLING SYSTEM

Debris may clog the engine’s air cooling system. Remove
blower housing and clean area shown to prevent overheat-
ing and engine damage.

SCREWS

AIR CLEANER

KNOBS

CLEAN AREAS UNDER

BLOWER HOUSING

OF ALL DEBRIS

CARBURETOR

AIR INTAKE

SPARK PLUG

Use only Briggs & Stratton Spark Tester (part number
19368) to check for spark.

Note: In some areas, local
law requires using resistor
spark plug to suppress igni-
tion signals. If this engine
was originally equipped with
resistor spark plug, use
same type for replacement.

.030” (0.76 mm)

WIRE GAGE

RESISTOR P/N 491055

VALVE CLEARANCE

Check valve clearance yearly. (See Tune-up Specifications
on page 6).
