Outdoor Fireplace Model No. WAD517A

© 2005 Blue Rhino Global Sourcing, LLC. All Rights Reserved. UniFlame

®

is a registered trademark of Blue Rhino Global Sourcing, LLC. All Rights Reserved.

WAD517A-CHL-102 E

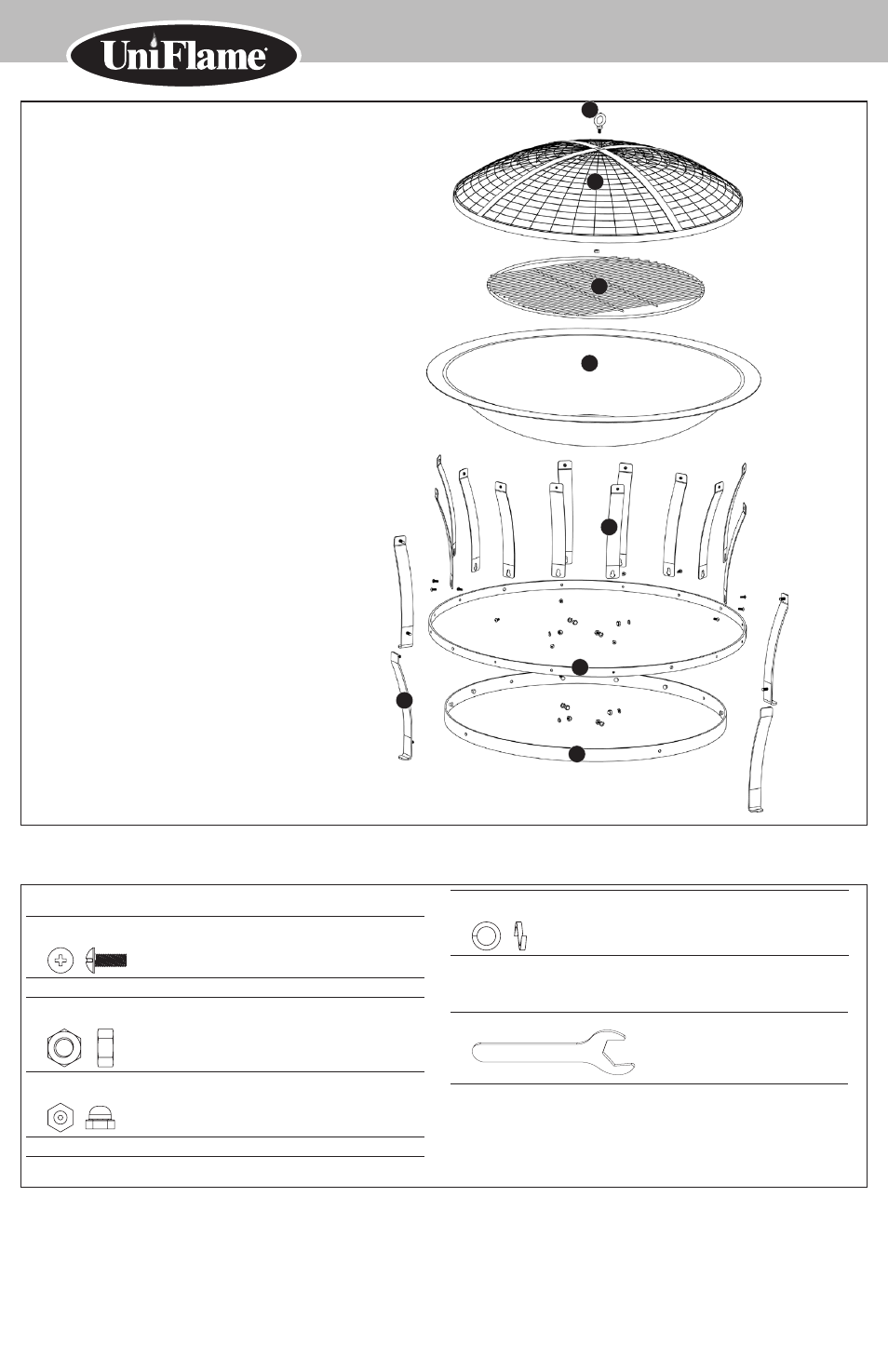

Exploded View

1. Spark Arrestor Handle

2. Spark Arrestor

3. Wood Grate

4. Bowl

5. Accent Strips (12)

6. Top Stand Ring

7. Legs (4)

8. Bottom Stand Ring

1

2

3

5

Hardware

A. Screw

12 pc

M4x10 Black Nickel Plated Phillips Head Screw

B. Nut

1 pc

M6 Black Nickel Plated Hex Nut

C. Cap Nut

8 pcs

M6 Black Nickel Plated Cap Nut

D. Lock Washer

8 pcs

M6 Black Nickel Plated Lock Washer

Tool Needed

E. M6 Wrench*

1 pc

*Not shown at actual size.

4

6

7

8
