ENGLISH
EUROLIVE User Manual
5
Application Examples 5.
Full-range stereo operation 5.1
In the following example, the main output signal of a mixing
console is connected to a power amplifier. Both the outputs and
inputs are stereo. A B212XL/B215XL is connected to each of the
amp outputs, and these speakers reproduce the entire frequency
range (a full range).
Using several B212XL/B215XL 5.2
loudspeakers
For larger rooms, you can connect several B212XL/B215XL
speakers.

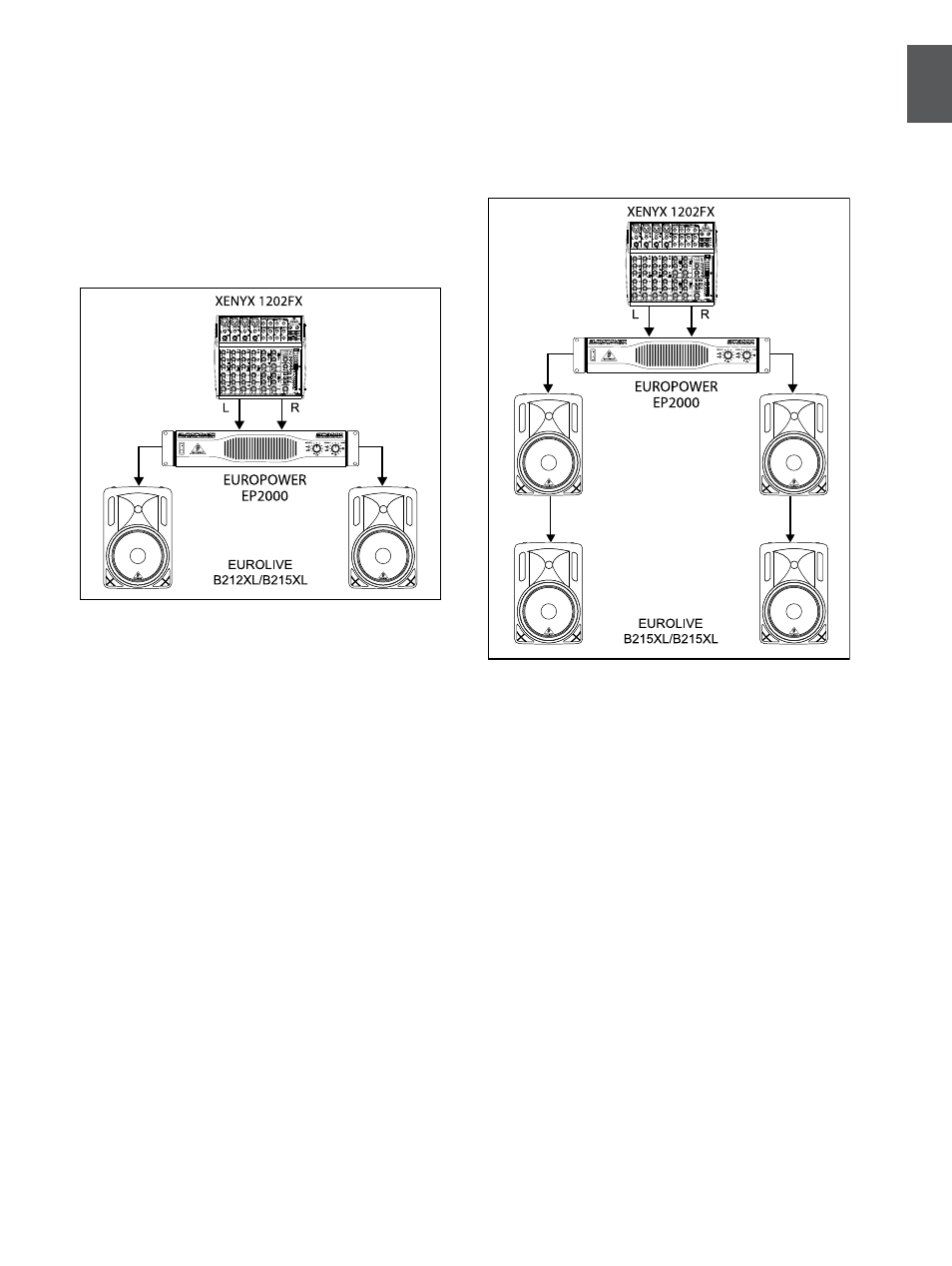

Fig. 5.1: Full-range stereo operation
Fig. 5.2: Wiring several B212XL/B215XL loudspeakers
