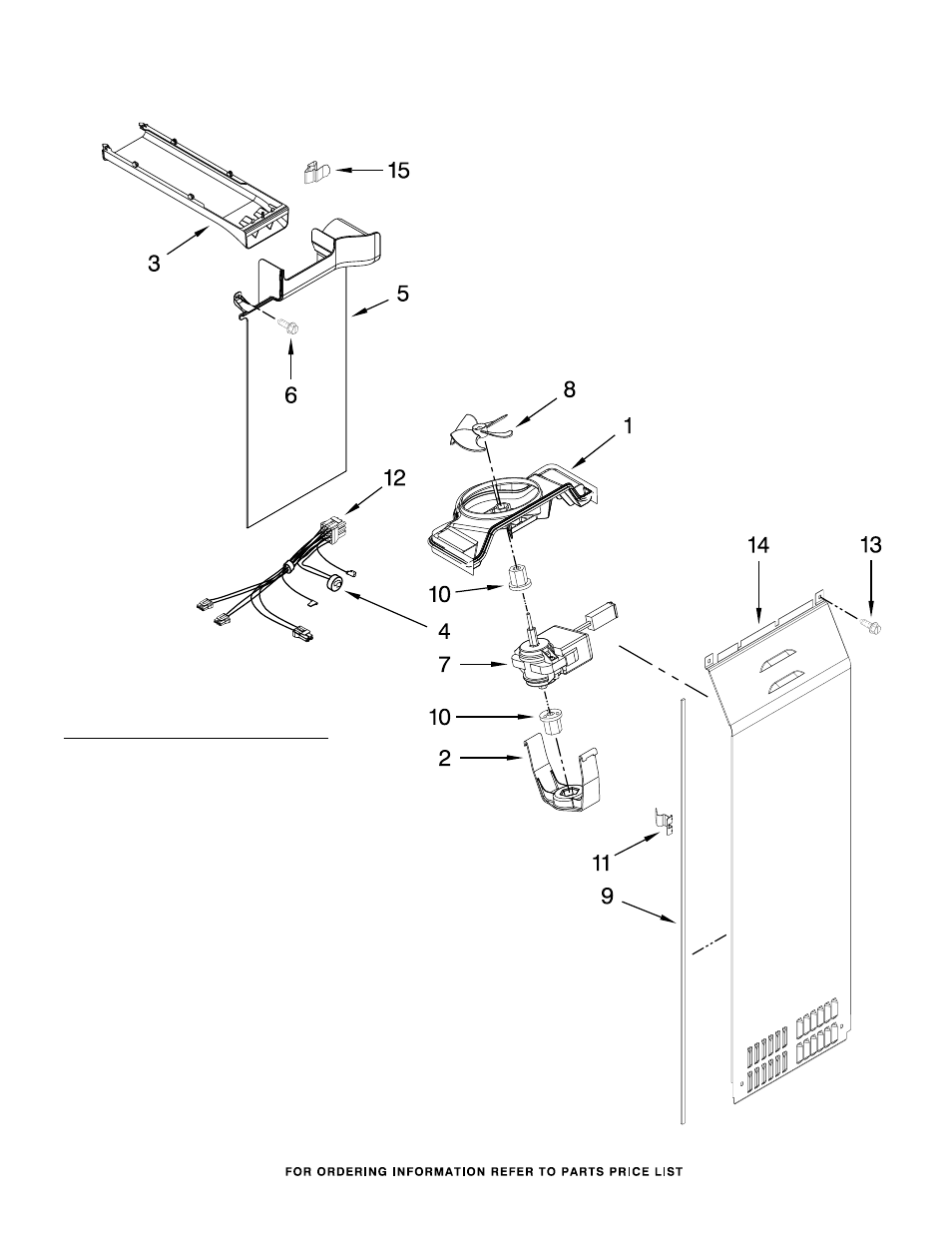

AIR FLOW PARTS
19
For Models: GSC25C6EYY01
(Monochromatic Stainless)
W10461961
Illus. Part
No. No. DESCRIPTION
1 W10251462 Fan Scroll
2 W10260421 Retainer,
Fan Motor
3 W10260388 Air Duct, Upper
4 W10260437 Bi−Metal, Defrost
5 W10251475 Air Duct Freezer
6 W10001260 Screw
7
2315549 Fan Motor
8
2169142 Fan Blade
9 W10240370 Gasket, Evaporator
Cover
10
2176759 Fan Grommet (2)
11 W10274578 Clip, Mounting
12 W10242409 Harness, Fan
Evaporator
(Includes #4)
13 W10142292 Screw, Evap Cover
14 W10388269 Cover, Evaporator
(Includes #9)
15 W10274578 Clip, Air Duct
