MGW SUBWOOFERS
Ported Enclosure
Box Volume *1.5 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 3 Inches
Port Length 6.1 Inches
* Box is given as internal air volume including port and driver displacement.
MGW1024PT RECOMMENDED ENCLOSURES
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume * 0.55 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
5 Hz 5 Hz 10 10 50 50 100 100 500 500 1000 1000
0 0 dB dB
Frequency Frequency
66
12 12
-6 -6
-12 -12
-18 -18
-24 -24
F3 = 32 F3 = 32
Ported Enclosure Ported Enclosure
Sealed Enclosure Sealed Enclosure
5 Hz 5 Hz 10 10 50 50 100 100 500 500 1000 1000
0 0 dB dB
Frequency Frequency
66
12 12
-6 -6
-12 -12
-18 -18
-24 -24

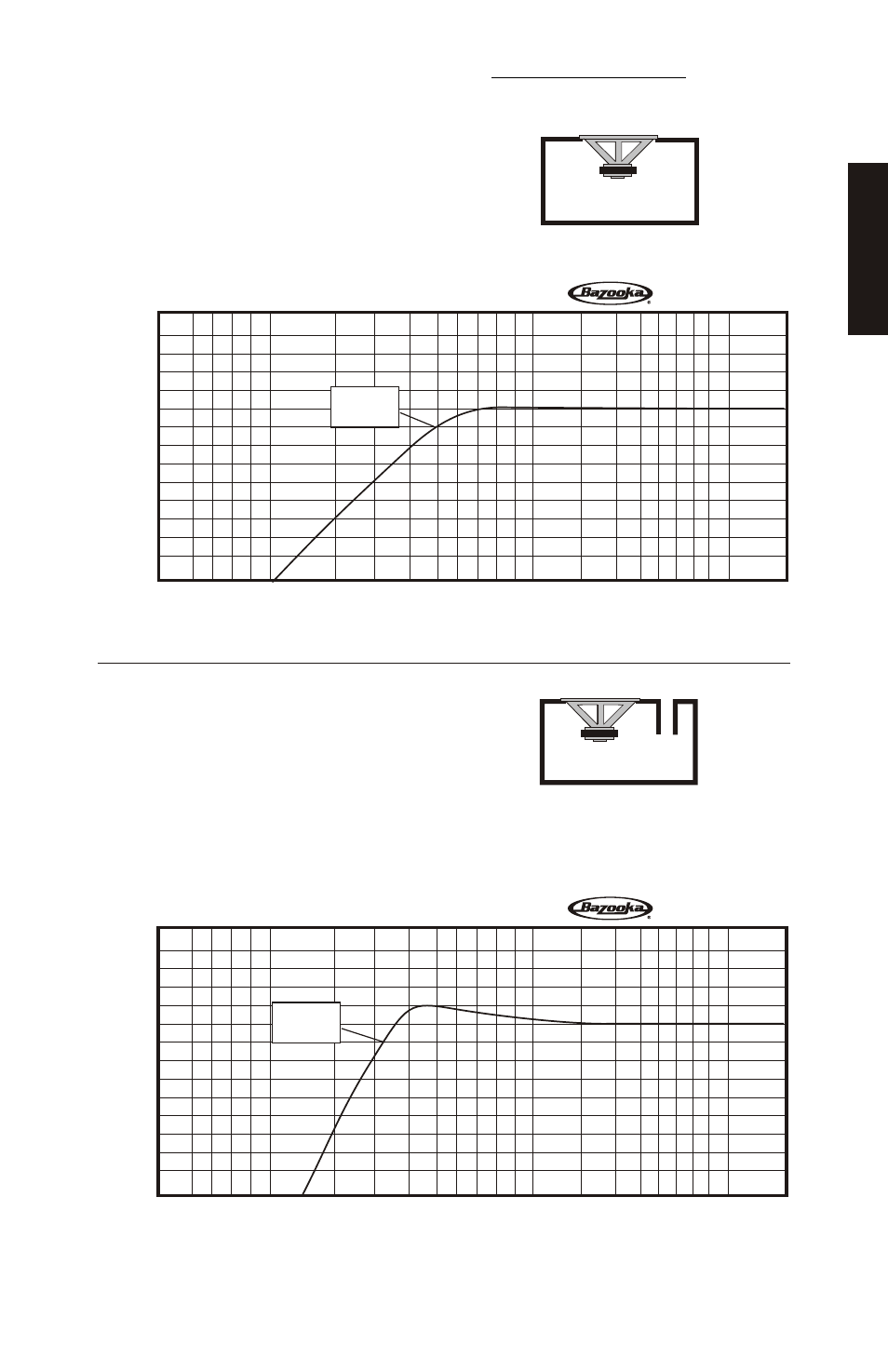

MGW1024PT Amplitude Response (dB/Hz) MGW1024PT Amplitude Response (dB/Hz)
MGW1024PT Amplitude Response (dB/Hz) MGW1024PT Amplitude Response (dB/Hz)
F3 = 49 F3 = 49
