10

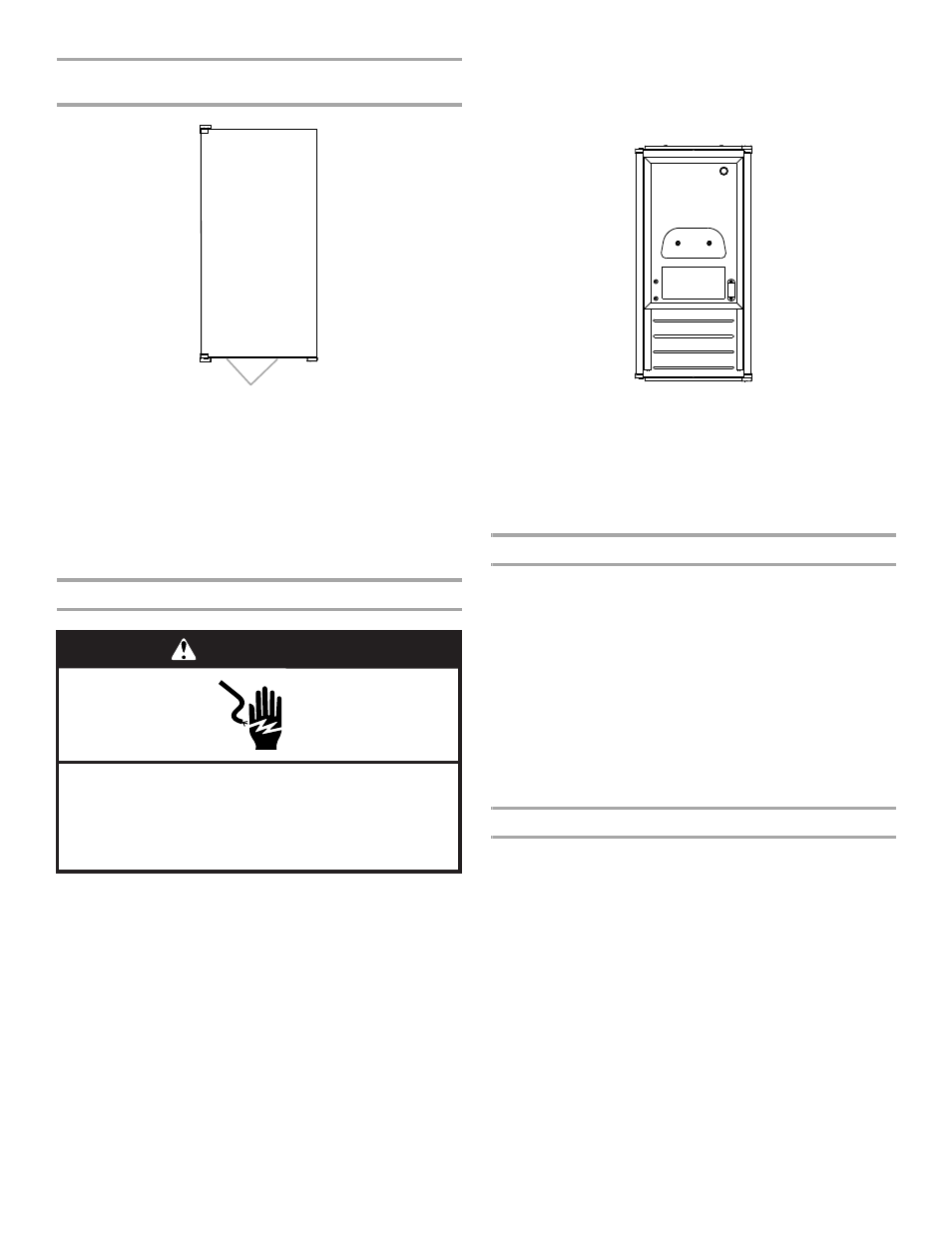

Remove Stainless Steel Door Wrap Panel
(on some models)
1. Remove the 2 hex-head screws located under the stainless
steel door wrap panel flange on the bottom of the door.
2. Pull up and outward on the door wrap panel from the bottom.
3. Rotate the door wrap panel until it separates from the door
and pull up.
NOTE: Be sure the edge guards do not separate from the
door wrap panel.
Door Stop and End-Cap Reversal
1. Unplug the ice maker or disconnect power.
2. Remove the handle screws and handle (on some models).
3. Remove the hinge pin from the top hinge.
4. Remove the door from the hinges and replace the top hinge
pin.
5. Remove the screw and door stop at corner A. Remove the
screw and end cap at corner C. Place the door stop at corner
C, and tighten screw. Place the end cap at corner A, and
tighten screw.
6. Remove the screw and door stop at corner D. Remove the
screw and end cap at corner B. Place the door stop at corner
B, and tighten screw. Place the end cap at corner D, and
tighten screw.
7. Depending on your model, the brand badge for the front door
of your ice maker may be in the package with the Use and
Care Guide. Fasten the brand badge to the door.
8. Set the door aside.
Reverse Hinges
1. Unscrew and remove the top hinge. Replace the screws in
the empty hinge holes.
2. Remove the screws from the bottom of the opposite side of
the ice maker cabinet. Turn the top hinge upside down so
that the hinge pin points up. Place the hinge on the bottom
opposite side of the ice maker and tighten screws.
3. Remove the “old” bottom hinge screws and hinge. Replace
the screws in the empty hinge holes.
4. Remove the screws from the top of the opposite side of the
ice maker cabinet. Turn the hinge upside down so that the
hinge pin points down. Place the hinge on the top opposite
side of the ice maker and tighten the screws.
5. Remove the top hinge pin.
Replace Door
1. Place the door on the bottom hinge pin.
2. Align the door with the top hinge hole and replace the top
hinge pin.
3. Replace the handle and handle screws.
Replace Door Wrap (on some models)
1. Place the door wrap flange onto the door top and ensure that
it fits correctly.
2. Rotate the door wrap downward until it covers the door
surface completely.
3. Install the 2 hex-head screws into the bottom of the door.
A. Hex-head screws
A
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
A. Top corner open (no end cap)
B. Beginning top corner end cap C. Beginning bottom corner end cap
D. Bottom corner open (no end cap)
A B
D C
