Whirlpool EV200FXBQ User Manual
Freezer, 64 cm) clearance between the appliances, Handle is integrated into the door
including
handle
C
B
A
Freezer
PRODUCT MODEL NUMBERS

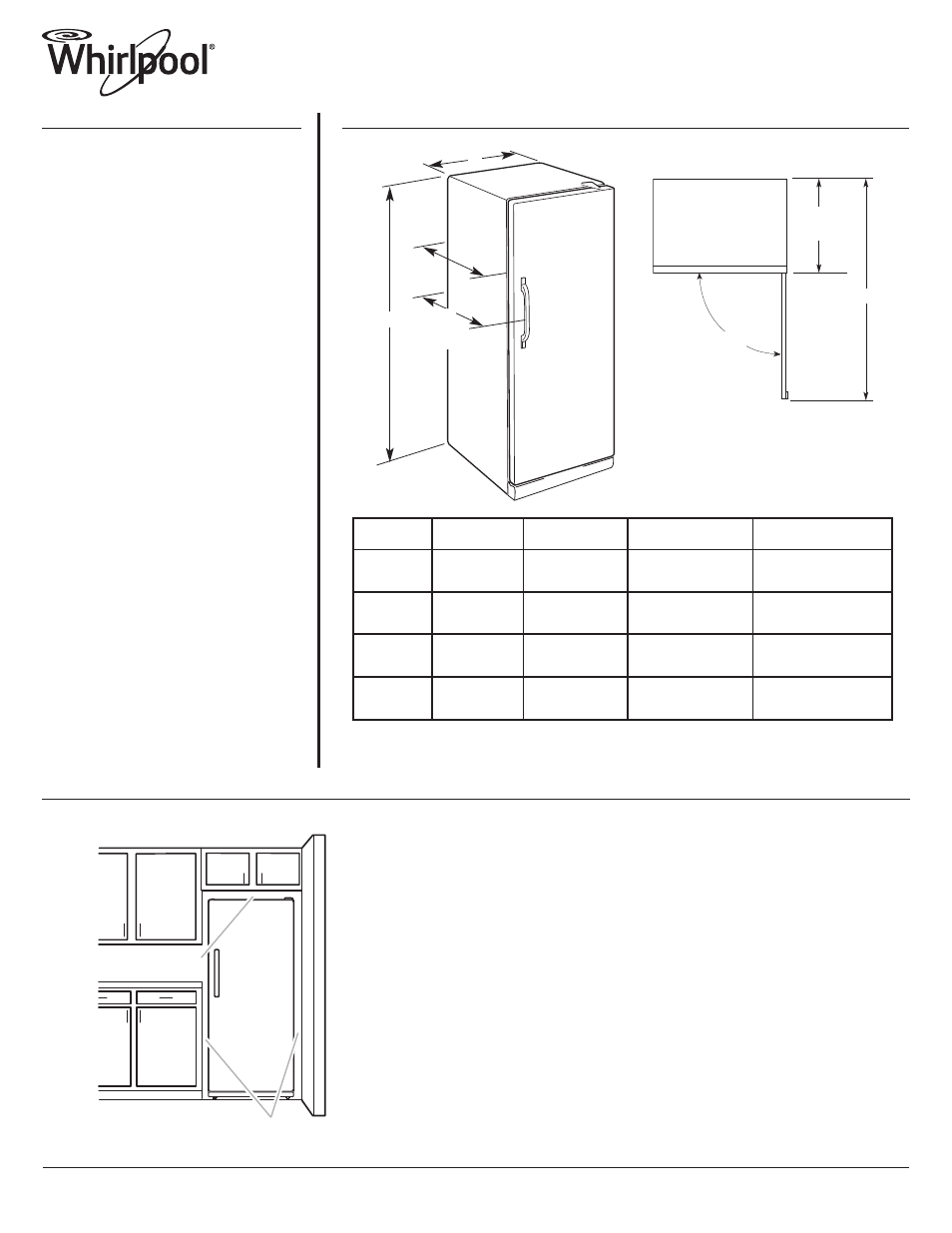

PRODUCT DIMENSIONS
LOCATION REQUIREMENTS
EV160FXB
EV180NZB
EV200FXB
EV200NZB
Recommended grounding method
A 115 Volt, 60 Hz., AC only, 15- or
20-amp fused, grounded electrical
supply is required. It is recommended
that a separate circuit serving only
your freezer be provided. Use an outlet
that cannot be turned off by a switch.
Do not use an extension cord.
Water Pressure
A cold water supply with water
pressure of between 30 and 120 psi
(207 to 827 kPa) is required to operate
the water dispenser and ice maker. If
you have questions about your water
pressure, see “Troubleshooting” or call
a licensed, qualified plumber.
Reverse Osmosis Water Supply
If a reverse osmosis water filtration
system is connected to your cold water
supply, the water pressure to the
system needs to be a minimum of
40 to 60 psi (276 to 414 kPa).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10326799B
4/3/13
3" (7.5 cm)
3" (7.5 cm)
IMPORTANT: Do not install the freezer near an oven, radiator, or other
heat source, nor in a location where the temperature will fall below 40°F
(5°C).
Check the strength of the floor before installing your freezer. It should
hold the weight of a freezer fully loaded with food.
Allow at least 3" (7.5 cm) of air space at the top and on both sides of
the freezer and 1" (2.5 cm) between the back of the freezer and the wall.
If the freezer is to be against a wall, leave extra space on the hinge side
so the door can open wider.
NOTE: This freezer may be installed side by side with another
refrigerator or freezer. Allow for a 3" (7.5 cm) clearance at the top and
sides and a
1
⁄
4
" (0.64 cm) clearance between the appliances.
Model Number
Height “A”
Width “B”
Depth - With Handle “C” Depth - Door Open 90
˚
“D”
EV160FXB*
61
⁵⁄₁₆
" (155.7 cm)
30" (76.2 cm)
30
¹⁄₄
" (76.8 cm)
55
³⁄₅
" (141.2 cm)
EV180NZB
67
⁵⁄₁₆
" (170.9 cm)
30" (76.2 cm)
31
⁵⁄₁₆
" (79.5 cm)
56
³⁄₅
" (143.8 cm)
EV200FXB
67
¹⁄₄
" (170.8 cm)
33" (83.8 cm)
31
¹⁄₄
" (79.4 cm)
58
³⁄₅
" (148.8 cm)
EV200NZB
67
¹⁄₄
" (170.8 cm)
33" (83.8 cm)
31
¹⁄₄
" (79.4 cm)
59
³⁄₅
" (151.4 cm)
without
handle
30
¹⁄₄
"
(76.8 cm)
90˚
D
25
¹⁄₂
"
(64.8 cm)
Top View
D
25
¹⁄₂
"
(64.8 cm)
90˚
*Handle is integrated into the door.
