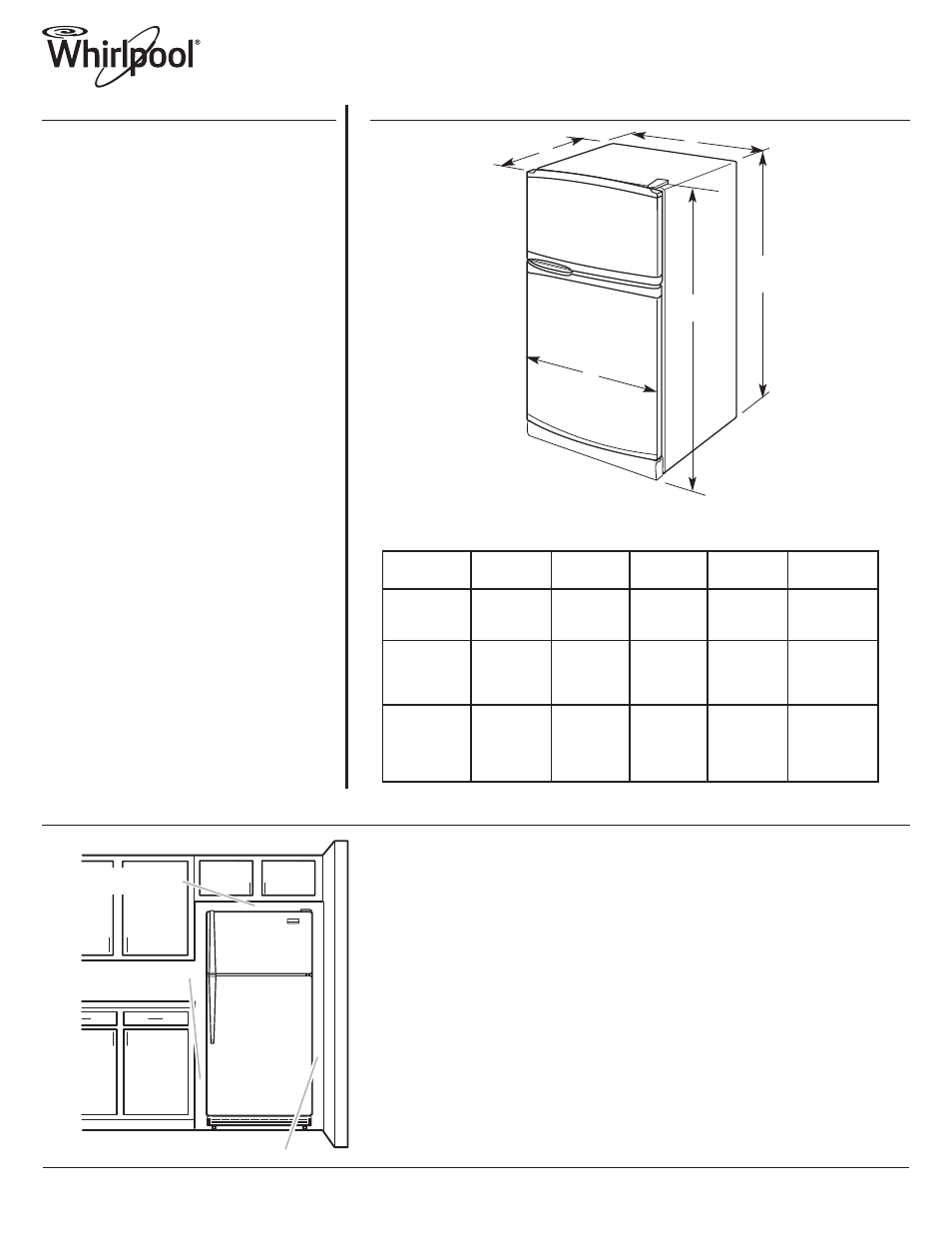

Whirlpool W8RXEGMWS User Manual
Top mount refrigerator
Top Mount Refrigerator
PRODUCT MODEL NUMBERS
PRODUCT DIMENSIONS
LOCATION REQUIREMENTS
ER6AHKXS
ER8AHKXR
ER8AHMXR
ER8YHMXS
W6RENGFW
W8RXEGMV
W8RXEGMW
W8RXNGMB
W8RXNGMW
Electrical:
A 115-volt, 60-Hz, AC-only, 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.
Water:
A cold water supply with water pressure
between 30 and 120 psi (207 and 827 kPa) is
required to operate ice maker and water dispenser.
If you have questions about your water pressure,
call a licensed, qualified plumber.
IMPORTANT: The pressure of the water coming
out of a reverse osmosis system going to the
water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
Reverse Osmosis Water Supply: If a reverse
osmosis water filtration system is connected to
your cold water supply, the water pressure to the
reverse osmosis system needs to be a minimum
of 40 to 60 psi (276 to 414 kPa).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 2316016ER
11/1/13
1
/
2
" (1.25 cm)
2" (5.08 cm)
" (7.5 cm)
3
C
D
top of
cabinet
B
A
E
overall
To ensure proper ventilation for your refrigerator, allow for a
1
⁄
2
" (1.25 cm) space on
each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator
top. Allow at least 1" (25.40 mm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra space at the back for
the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: It is recommended that you do not install the refrigerator near an oven,
radiator, or other heat source, nor in a location where the temperature will fall below
55°F (13°C).
Model Size
Depth “A”
Cab. Width
“B”
Door Width
“C”
Cab. Height
“D”
Overall Height
“E”
16 cu. ft.
ER6AHKXS
W6XNGFW
30
3
⁄
8
"
(77.2 cm)
28"
(71.1 cm)
28
1
⁄
8
"
(71.4 cm)
65
3
⁄
8
"
(166.1 cm)
66"
(167.6 cm)
18 cu. ft.
ER8AHKXR
ER8AHMXR
ER8YHMXS
30
7
⁄
8
"
(78.4 cm)
28"
(71.1 cm)
28
1
⁄
8
"
(71.4 cm)
67
3
⁄
8
"
(171.1 cm)
68"
(172.7 cm)
18 cu. ft.
W8RXEGMV
W8RXEGMW
W8RXNGMW
W8RXNGMB
30
3
⁄
8
"
(77.15 cm)
28"
(71.1 cm)
28
1
⁄
8
"
(71.4 cm)
67
3
⁄
8
"
(171.1 cm)
68"
(172.7 cm)
Dimensions “D” and “E” include rollers
extended
3
⁄
4
" (1.9 cm)
