B&C Speakers Mid-bass 15 PE 40 User Manual
15 pe 40 mid-bass
B&C
2

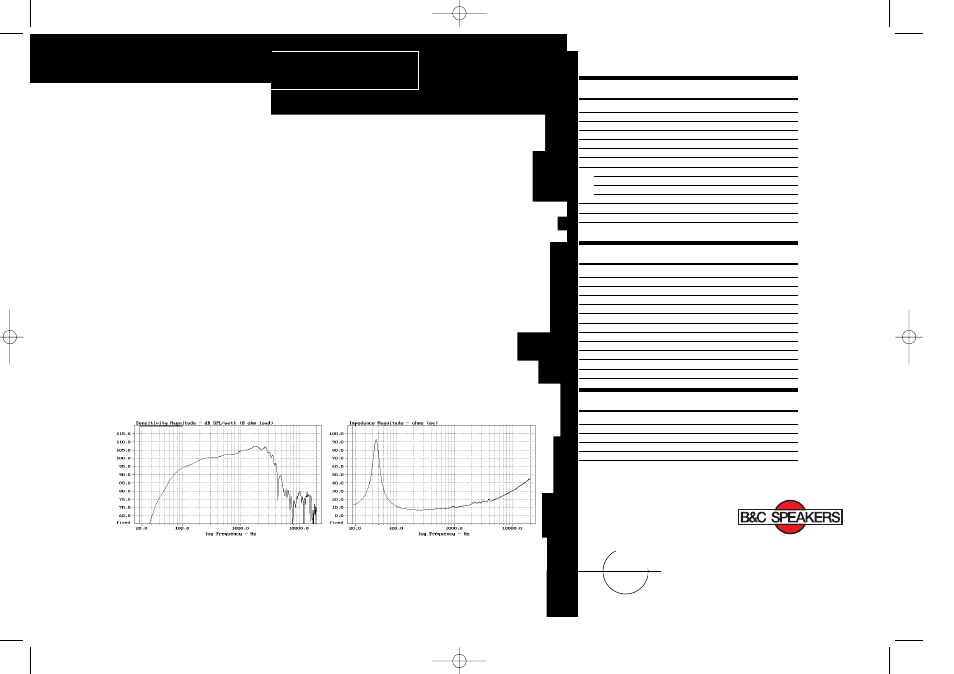

15 PE 40
Mid-bass
15 PE 40
Mid-bass
Extremely high
efficiency mid bass,
2.5” aluminium voice
coil, best sound
reproduction,
excellent flat
response up to 3
kHz.
Specifications
Nominal diameter
15” (380 mm.)
Nominal impedance
8 ohms
Pe (max)
250 watts R.M.S
Power Handling 1
350 w. cont. program
Sensitivity (1W/1m) 2
101.5 dB.
Frequency range
44 - 3800 Hz.
Voice coil diameter
65 mm.
winding material
aluminium
former material
glass fibre
winding depth
12 mm.
Magnetic gap depth
7 mm.
Magnet diameter
190 mm.
Flux density
1.4 T
Also available in 4 ohms, data upon request
Thiele & Small Parameters
Fs
44 Hz.
Re
5.5 ohms
Qes
0.285
Qms
5.3
Qts
0.27
Vas
205 dm.3
Sd
855 cm.2
η0
5.9 %
X max
± 3 mm.
Mms
65 gr.
Bl
18.6 Tm
Le
1.1 mH
Mounting Informations
Overall diameter
393 mm.
Bolt circle diameter
372 mm.
Baffle cutout diameter
354 mm.
Depth
171 mm.
Net weight
8.6 Kg.
1 AES standard
2 Pink noise 100 to 2000 Hz.
Progetto4 7-01-2005 16:56 Pagina 2
