INSTALLATION
CONNECTING TO AV EQUIPMENTS
-10-

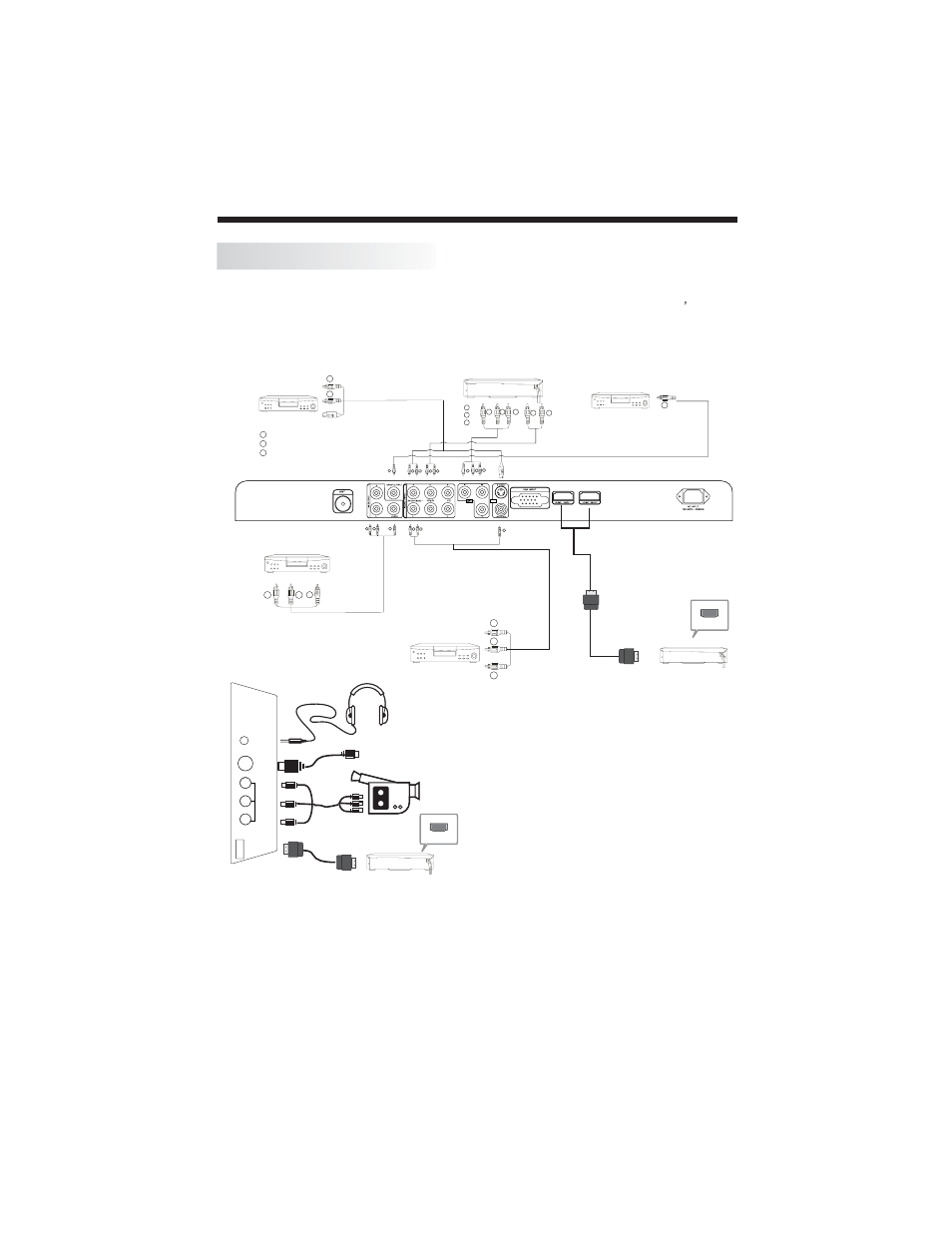

This TV provides two groups of AV, two S-Video, one group of YPbPr for convenient connection to VCR,
DVD or other video equipment, three group of HDMI for HD signal input. Please refer to the owner s manual
of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo
system as well as a number of other electronic items.
YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i,1080p.
