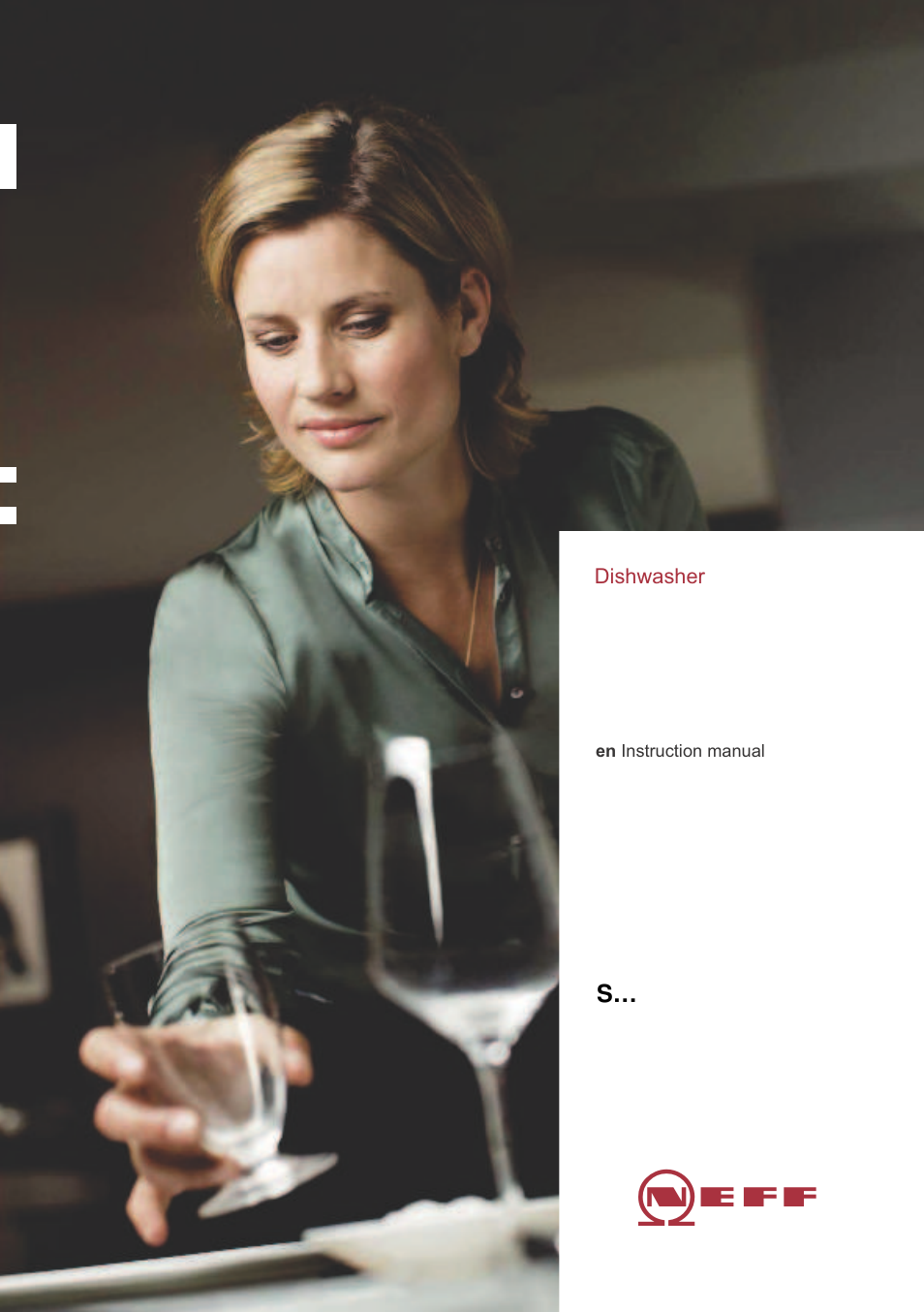

Neff S71M63X2GB User Manual
Neff Washers
This manual is related to the following products:
Table of contents
Document Outline
- 8 Intended use
- Delivery
- 1. Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
- 2. Please dispose of the packaging material in an environmentally friendly manner.
- 3. Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.
- Installation
- In daily use
- Childproof lock (door lock)Door lock *
- Damage
- Disposal
- 7 Protection of the environment
- * Getting to know your appliance
- + Water softening system/Special salt
- Water softening system/Special salt
- Setting
- 1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
- 2. Set value can be found in the water hardness table.
- 3. Open the door.
- 4. Switch on ON/OFF switch (.
- 5. Hold down programme button # and press START button ` until •:‹.... is indicated on the digital display.
- 6. Release both buttons.
- 1. Press programme button 3.
- 2. Press START button `.
- 3. Close the door.
- Water hardness table
- Using special salt
- Using detergents with salt componentDetergents with salt component
- Switching off salt refill indicator/water softening systemSwitching off water softening system
- , Rinse aid
- Rinse aid
- 1. Open the dispenser 9" by pressing and lifting the plate on the cover.
- 2. Carefully pour rinse aid up to the max. mark in the filler opening.
- 3. Close cover until it clicks shut.
- 4. To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Hold down programme button # and press START button ` until •:‹.... is indicated on the digital display.
- 4. Release both buttons.
- 5. Press programme button # until the factory set value §:‹† is indicated on the digital display h.
- 1. Press programme button 3.
- 2. Press START button `.
- 3. Close the door.
- Switching off rinse aid refill indicator
- - Utensils
- Utensils
- Not suitable
- Glass and utensil damage
- Loading the dishwasher
- Unloading the dishwasher
- Cups and glasses
- Pans
- Cutlery basket
- EtagereEtagere *
- Folding spikesFolding spikes *
- Small accessories holder *Small accessories holder
- Knife shelf *Knife shelf
- Adjusting the height of the basketAdjusting the height of the basket *
- Top basket with side levers
- 1. Pull out the top basket 1* out.
- 2. To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.
- 3. To raise the basket, hold the basket on the sides of the upper edge and lift it up.
- 4. Before re-inserting the basket again, ensure that it is at the same height on both sides. Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.
- Top basket with upper and lower roller pairs
- . Detergent
- / Overview of programmes
- Overview of programmes
- The max. possible number of programmes is illustrated in this overview. The corresponding programmes and their arrangement can be found on the fascia.
- Programme selection
- Information for test institutes
- 0 Additional options
- 1 Operating the appliance
- Operating the appliance
- Programme data
- Aqua sensorAqua sensor *
- Switching on the appliance
- Optical display while the programme is runningOptical display while the programme is running *
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Hold down programme button # and press START button ` until •:‹.... is indicated on the digital display.
- 4. Release both buttons.
- 5. Press programme button # until the factory set value ‚:‹‚ is indicated on the digital display h.
- 1. By pressing the button 3, you can switch the function off ‚:‹‹ or on ‚:‹‚.
- 2. Press START button `.
- 3. Close the door.
- Remaining running time display
- Timer programmingTimer programming *
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Press button P + until the digital display h jumps to œ:‹‚.
- 4. Press P + or – button until the displayed time corresponds with your requirements.
- 5. Press START button `, timer programming is activated.
- 6. To delete timer programming, press the P + or – button until h œ:‹‹ is indicated on the digital display.
- 7. Close the door.
- End of programme
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Hold down programme button # and press START button ` until •:‹.... is indicated on the digital display.
- 4. Release both buttons.
- 5. Press programme button # until the factory set value ›:‹ƒ is indicated on the digital display h.
- 1. Press programme button 3. Each time the button is pressed, the set value increases by one level; when the value of ›:‹„ has been reached, the display jumps back to ›:‹‹ (off).
- 2. Press START button `, the set value is saved.
- 3. Close the door.
- Automatic switch off after end of programme or interior light*Automatic switch off / interior light
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Hold down programme button # and press START button ` until •:‹... is indicated on the digital display.
- 4. Release both buttons.
- 5. Keep pressing programme button # until the value ˜:‹... is indicated on the numerical display h.
- 1. Press programme button 3.
- 2. Press START button `.
- 3. Close the door.
- Switching off the appliance
- Interrupting the programme
- Terminating the programmeTerminating the programme (Reset)
- Changing the programme
- Intensive drying
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Hold down programme button # and press START button ` until •:‹.... is indicated on the digital display.
- 4. Release both buttons.
- 5. Press programme button # until the factory set value š:‹‹ is indicated on the digital display h.
- 1. Press the button 3 to switch the Intensive drying on š:‹‚ or off š:‹‹.
- 2. Press START button `.
- 3. Close the door.
- 2 Cleaning and maintenance
- Cleaning and maintenance
- Overall condition of the machine
- Special salt and rinse aid
- Filters
- 1. After each washing cycle check the filters for residue.
- 2. Unscrew filter cylinder as illustrated and take out filter system.
- 3. Remove any residue and clean filters under running water.
- 4. Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.
- Spray arms
- 3 Fault, what to do?
- Fault, what to do?
- Note
- Waste water pump
- 1. First always disconnect the appliance from the power supply.
- 2. Take out top basket 1* and bottom basket 1j.
- 3. Remove the filters 1Z.
- 4. Scoop out water, use a sponge if required.
- 5. Prise out the white pump cover (as illustrated) using a spoon. Grip the cover on the crosspiece and lift diagonally inwards. Remove cover completely.
- 6. Check impeller wheel and remove any foreign objects.
- 7. Place cover in the original position and press down until it engages (click).
- 8. Install filters.
- 9. Re-insert baskets.
- 4 Customer service
- 5 Installation and connection
- Installation and connection
- 1. Checking appliance on delivery
- 2. Installing the appliance
- 3. Waste water connection
- 4. Fresh water connection
- 5. Electrical connection
- Safety instructions
- Delivery
- Technical specifications
- Installation
- Waste-water connection
- Fresh water connection
- Warm water connection *Warm water connection
- Setting hot water:
- 1. Open the door.
- 2. Switch on ON/OFF switch (.
- 3. Hold down programme button # and press START button ` until •:‹... is indicated on the digital display.
- 4. Release both buttons.
- 5. Press programme button # until the factory set value ‘:‹‹ is indicated on the digital display h.
- 1. By pressing the 3 button, you can switch the hot water setting off ‘:‹‹ or on ‘:‹‚.
- 2. Press START button `.
- 3. Close the door.
- Electrical connection
- Removing the appliance
- Transportation
- Drain the appliance according to the following steps:
- 1. Turn on the tap.
- 2. Open the door.
- 3. Switch on ON/OFF switch (.
- 4. Select programme with the highest temperature.
- 5. Press START button `.
- 6. Close the door.
- 7. Open door after approx. 4 minutes.
- 8. Press START button ` until ‹:‹‚ is indicated on the digital display.
- 9. Close the door.
- 10. Open door after approx. 1 minute.
- 11. Switch off ON/OFF switch (.
- 12. Turn off the tap, disconnect supply hose and drain water.
- Protection against frostProtection against frost (Emptying the appliance)
