What’s included
For both aCs335a and aCs335a-as versions:
✦
Local unit
✦ Remote unit
✦ Zip-style VGA CPU cable, 6-ft. (1.8-m), with
HD15 male/female and (2) 6-pin mini-DIN male/male
✦ (2) power supplies and cords
✦ User’s manual
aCs335a-as also includes:
✦
Serial CPU cable, 6-ft. (1.8-m), DB9 female/DB9 male
✦ Audio CPU cable, 6-ft. (1.8-m), stereo jack/
3.5-mm stereo jack
Item Code
ServSwitch Fiber Optic KVM Extender aCs335a
with Serial and Bidirectional Stereo Audio aCs335a-as
For indoor runs between extenders or demarcs, order…
Terminated Fiber Optic Breakout Cable, ST-ST
Custom Lengths 6-Fiber eFN110-stst
For outdoor runs between demarcs, order…
Loose-Tube Multistrand 62.5 Multimode Fiber Cables Bulk
(Unterminated), Custom
6-Fiber eXN3006a
12-Fiber eXN3012a
Armored Loose-Tube Outside-Plant Fiber Cables, Bulk
(Unterminated) for Extreme Conditions, 1000-ft. (304.8-m)
6-Fiber eXN4070a-1000
12-Fiber eXN4075a-1000
NOTE: Versions of these cables with other fiber counts are also
available. For more information, see blackbox.com, or call our
FREE Tech Support.
You may also need…
19" Rackmount Kit for ACS335A or ACS335A-AS
for 1 Extender rMK235
for 2 Extenders rMK235-2
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p.m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communi cations magazine, 90%
of network managers surveyed say that getting the technical support
they need is extremely important when choosing a vendor. But even
though network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support contract, the
technical support and service they receive falls far short of their
expectations—and certainly isn’t worth what they paid.
At Black Box, we guarantee the best value and the best support.
You can even consult our Technical Support Experts before you buy if
you need help selecting just the right component for your application.
Don’t waste time and money—call Black Box today.
Why Buy From Black Box?
Exceptional Value.
Exceptional Tech Support. Period.
T e C h S P e C S
Cable Required — 62.5/125-µm or 50/125-µm multimode fiber optic cable
with at least (3) or (5) strands and terminated with ST connectors
Optical Budget Total (Typical) — –5 dBm
Optical Center Wavelength — 850 nm
Resolution (Maximum) — 1280 x 1024 @ 75 Hz
Video Compatibility — RGBHV with 0.7-Vpp RGB signals plus TTL 5-V
horizontal/vertical synchronization signals; RGB with 0.7-Vpp RGB signals
with the G signal carrying (composite) synchronization signals
CE Approval — Yes
Connectors — Local unit: Keyboard and mouse: (4) 6-pin mini-DIN F;
Monitor: (1) HD15 M, (1) HD15 F;
Interconnect: ACS335A: (3) ST;
ACS335A-AS: (5) ST;
ACS335A-AS local unit also includes: Audio: (2) 3.5-mm jacks;
Serial: (1) DB9 F (RS-232);
Remote unit: Keyboard and mouse: (2) 6-pin mini-DIN F;
Monitor: (1) HD15 F;
Interconnect: ACS335A: (3) ST;
ACS335A-AS: (5) ST;
ACS335A-AS remote unit also includes: Audio: (2) 3.5-mm jacks;
Serial: (1) DB9 M (RS-232)
Indicators — (1) 7-segment display on remote unit;
(1) Device Ready status LED on local and remote unit
Temperature Tolerance — Operating: 41 to 113°F (5 to 45°C);
Storage: -13 to +140°F (-25 to +60°C)
Humidity Tolerance — Up to 80%, noncondensing
Power —90–240 VAC, 47–63 Hz, autosensing, external, with IEC 320
connector and cord
Size — Each unit: 1.7"H x 7.1"W x 5.2"D (4.3 x 18 x 13.2 cm)
Weight — Each unit: 2.6 lb (1.2 kg)

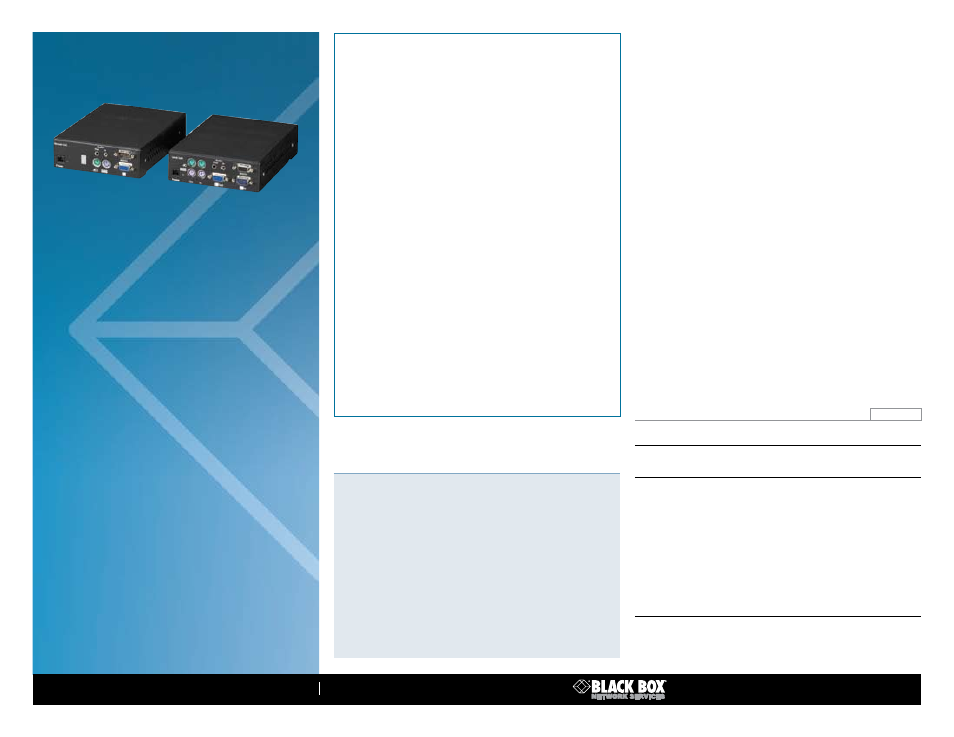

ACS335A-AS
