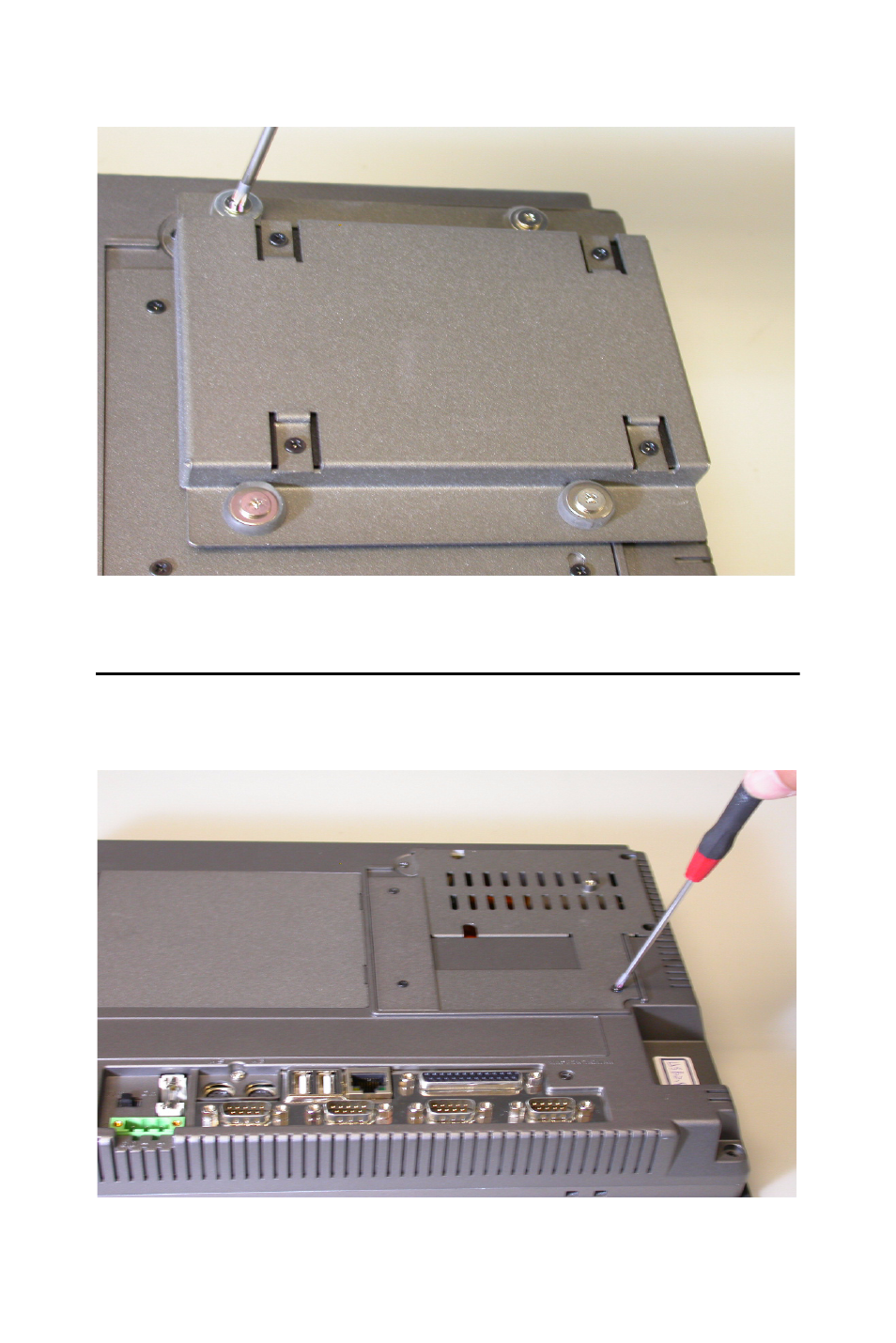

Figure E.13: Fastening the HDD holder

E.2 Internal HDD Kit Assembly

Please follow the steps to assemble the internal HDD kit.
1.

Remove the default HDD cover from the system.

Figure E.14: Removing the HDD cover
