Appendix E HDD Kit Assembly
TPC-1261H provides two way to assemble the HDD into the system. The
ruggized HDD kit is to resist against the high vibration.
E.1 Ruggedized HDD Kit
Please follow the assembly procedure to install the HDD into the system.
1.
Remove the default HDD cover from the system. The required
parts are shown below.
.

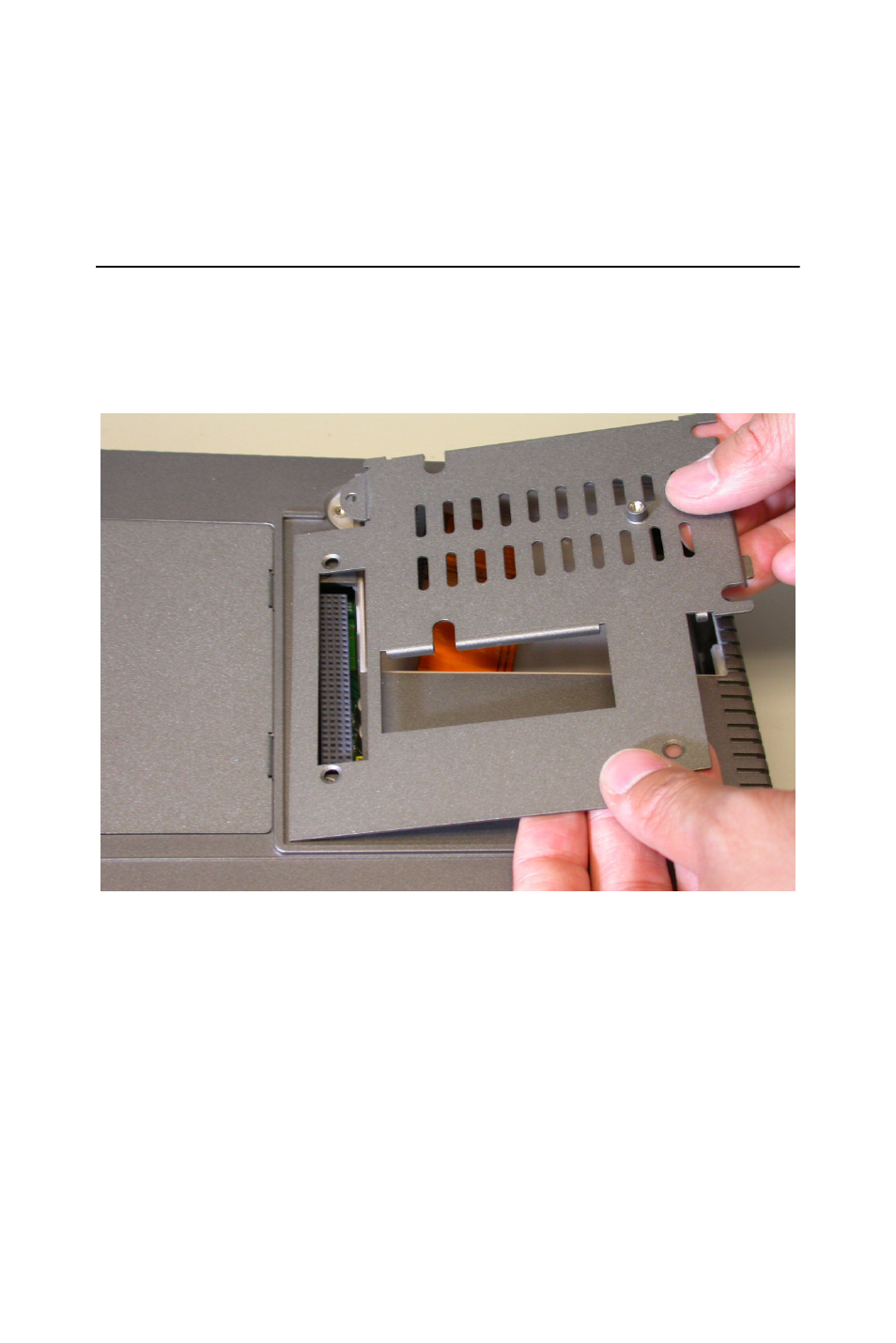

Figure E.1: Removing the HDD cover
