Hardware
A
Screw M4x10 Zinc Plated Phillips Truss Head 2 pcs
B
Screw M5x10 Zinc Plated Phillips Truss Head 10 pcs
C
Screw M6x18 Zinc Plated Phillips Truss Head 2 pcs
D
Wing Nut M4 Steel 2 pcs
E
Wing Nut M6 Steel 2 pcs
F
Washer ø6.4 Steel 2 pcs
G
Washer ø6.4 Heat Resistant 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
4
1
3
7
8
12
10
9
2
Parts List
1 Lid Handle 55-09-082
2 Lid* 55-09-081
3 Cooking Grid 55-10-353
4
Heating Element and
Heat Reflector Plate*
55-09-077
5 Top Hinge* (2) 55-07-181
6 Left Bottom Hinge* 55-09-078
7 Right Bottom Hinge* 55-09-084
8 Bottom Bowl* 55-10-352
9 Left Side Handle 55-09-080
10 Right Side Handle 55-09-086
11 Left Front Leg 55-09-079
12 Right Front Leg 55-09-085
13 Control Panel 55-09-073
14 Rear Leg (2) 55-07-161
15 Grease Cup 55-09-075
16
Temperature Control
Assembly / Electric Cord
55-10-354
17 Lock 58-07-810
* Pre-Assembled

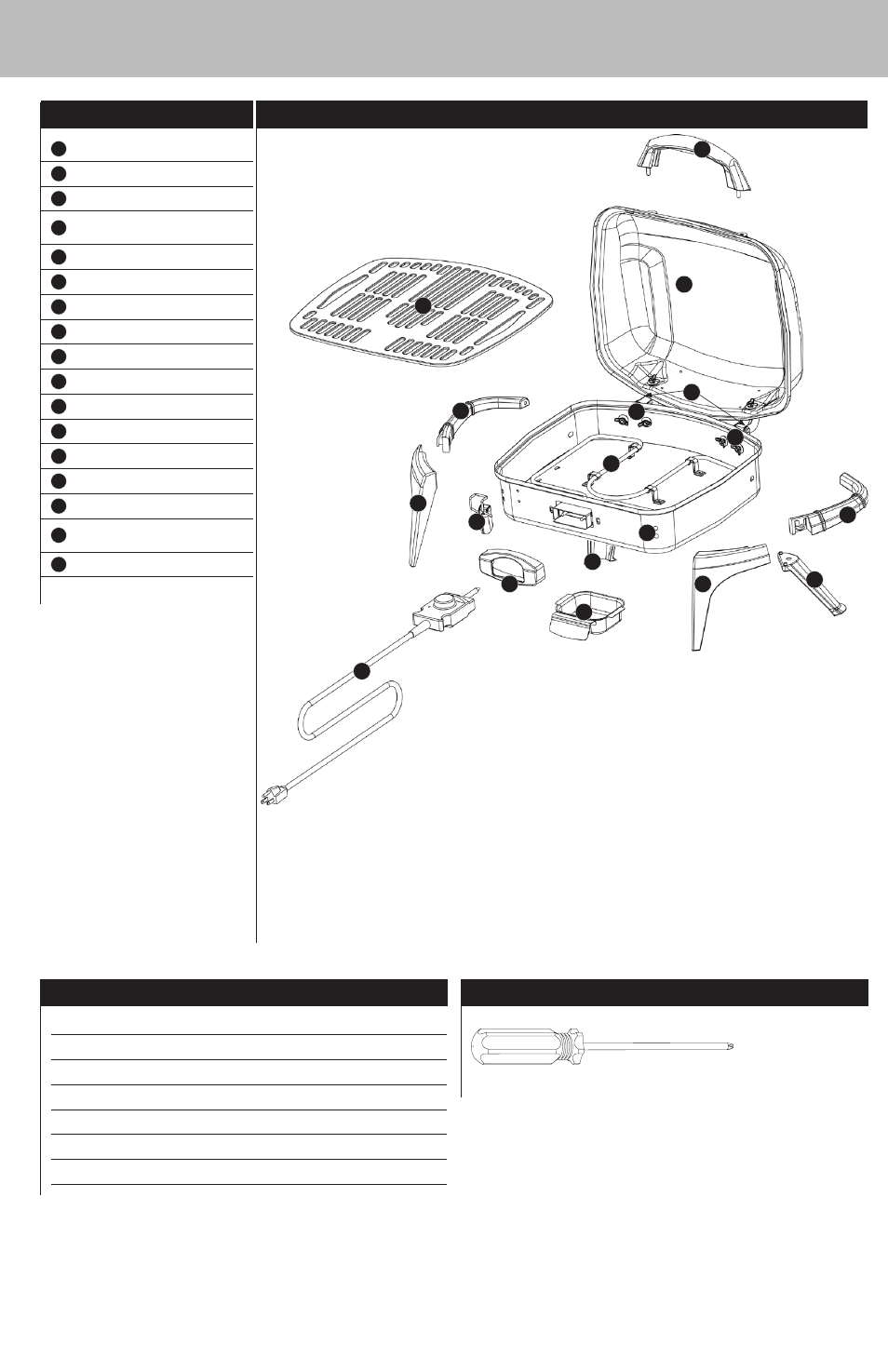

Exploded View
11
13
14
15
16
5
6
14
17
