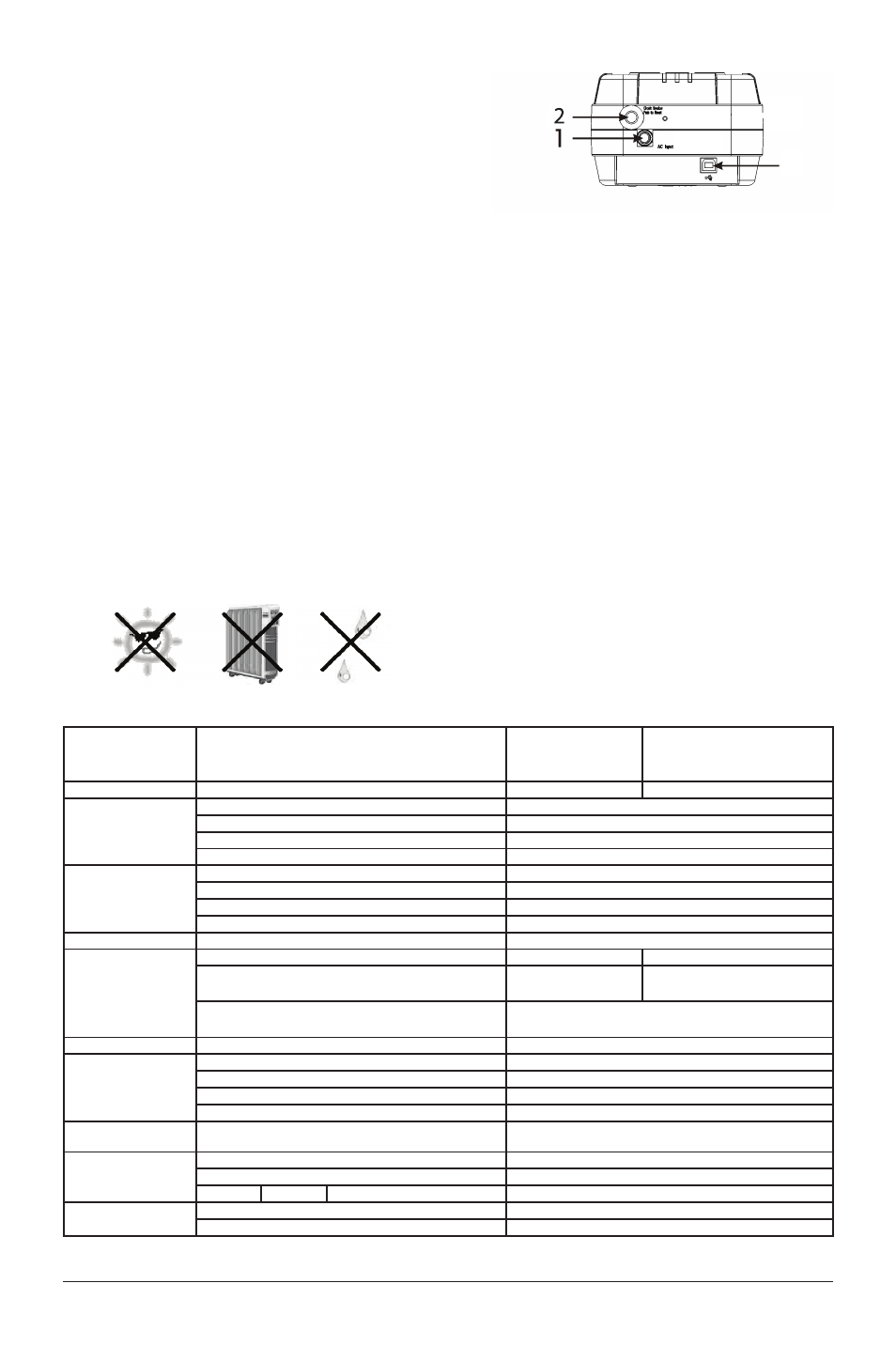

Overview | Side Panel
1. AC Input Power Cord (See #1 on Fig. 1)
Provides power to your Battery Backup.
2. AC Breaker (Circuit Breaker; see #2 on Fig. 1)
Should a power overload occur, the circuit breaker triggers the unit to turn
off AC power. To restore power, press the “circuit breaker” button to reset,
then press the “Power” button.
3. USB Communication Port (See #3 on Fig. 1)
The unit features a USB communication port. Installation of the cable and the Bulldog Plus Software, which allows the unit to connect
to your computer, is optional. The unit will provide backup power whether or not the cable and software are installed; however, without
them you will be unable to utilize the data management product features.
Overview | Alarms
Backup (Slow Alarm)
When the unit is in “backup” mode (running on battery), the YELLOW LED illuminates and the unit emits an audible alarm. The alarm
stops when the unit returns to normal online operation.
Low Battery (Rapid Alarm)
In “backup” mode, when the battery energy runs low, the unit beeps rapidly until it either shuts down from a depleted battery or returns
to normal online operation.
Fault (Continuous Alarm)
When the unit fails, it emits an audible alarm continuously to warn of a fault condition. Disconnect the equipment prior to checking it.
Overview | Storage
Storage Conditions
Store the unit covered and upright in a cool, dry location with its battery fully charged. Before storing, charge the unit for at least twelve
(12) hours.
Extended Storage
During extended storage in environments where the ambient temperature is -15 en +30 °C, charge the unit’s battery every six (6)
months. During extended storage in environments where the ambient temperature is +30 en 45 °C, charge the unit’s battery every
three (3) months.
Note:
Overview | Technical Specifications
All specifications are subject to change without prior notice.
Model
F6H400ukUSB
F6H400exUSB
F6H400evUSB F6H600ukUSB
F6H600exUSB
F6H600evUSB
Capacity VA/W 400VA/200W 600VA/300W
Input
Voltage 220/230/240VAC
Frequency 50/60Hz
Max input current 5A
Phase Single
Output
(inverter Mode)
Voltage Range 220/230/240VAC+10%
Frequency 50Hz or 60Hz+1Hz
Max output current 5A
Waveform Modified Sinwave
Transfer Time Typical 2-6ms
Battery
Battery Type 12V4.5Ahx1 12V5Ahx1
Backup Time at a PC load with monitor
(Typical 100W)
6-11 Minutes 10-15 Minutes
Recharging Time
16 hours max
(recharge up to 90% capacity)
Display LED Power on, Backup, Fault
Audible Alarm
Battery Mode Sounding every 5 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously Sounding
Protection Full Protection
Overload, Overcharge, Modem/Phone Line Surge
Protection and Short Circuit Protection
Physical
Dimension (DxWxH) 352mm*134mm*86mm
Net Weight 2.9KG
Shucko France UK 4 sockets for surge protection with battery backup
Environment
Operation Temperature 0-40oC
Operation Humidity 0-90%
