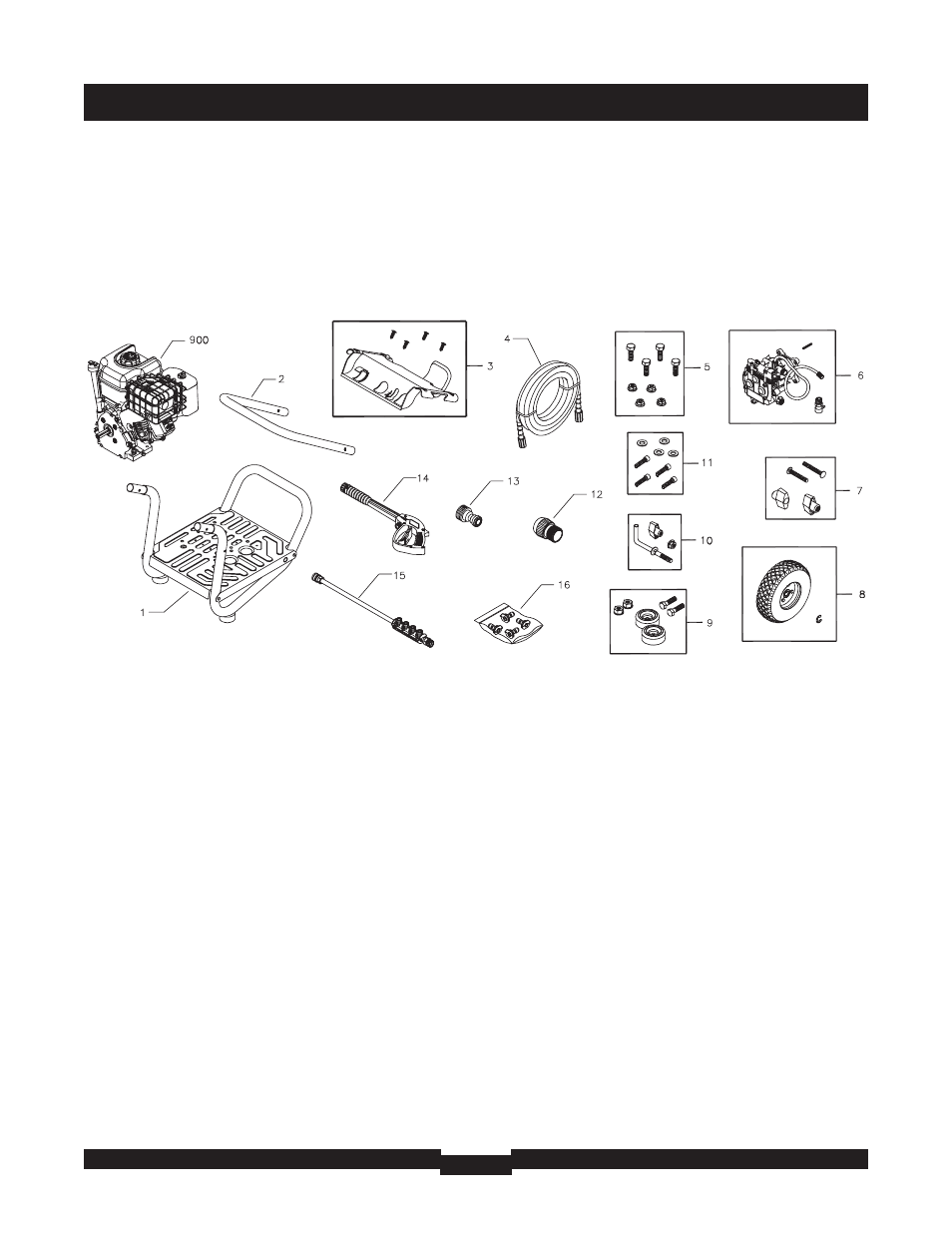

EXPLODED VIEW AND PARTS LIST
2
Item Part # Description
1 198732GS ASSY, Base
2 M194567GS HANDLE
3 200170GS ASSY, Billboard w/Decals & Clips
195964GS Clips, Tree
4 196006GS HOSE
5 192318GS KIT, Engine Mounting Hardware
6 198347GS ASSY, Pump
23139DGS Key
94298GS Valve, Thermal Relief
7 B2203GS KIT, Handle Fastening
8 194509GS KIT, Wheel
191265GS E-Ring
9 192310GS KIT, Vibration Mount
10 193819GS KIT, Hook
11 192131GS KIT, Pump Mounting Hardware
12 96016GS QUICK CONNECT, Female, Plastic
13 95456GS QUICK CONNECT, Male
14 193482GS GUN
15 192198GS EXTENSION, w/Nozzle Holder
Item Part # Description
16 196902GS KIT, Nozzle
198841GS Nozzle, QC, Plastic, Soap
195983WGS Nozzle, QC, Red
195983XGS Nozzle, QC, Yellow
195983ZGS Nozzle, QC, White
900 § ENGINE
Item Not Illustrated
203763GS MANUAL, Operator’s
MS3431 MANUAL, Engine
191267SGS AXLE
192014GS FITTING, 1/2"
192015GS FITTING, 3/4"
200171GS KIT, INT’L Tag Warning
6048 KIT-O-Ring
Optional Accessories
6039 PUMP SAVER
§ - Contact Engine Manufacturer
EXPLODED VIEW AND PARTS LIST - MAIN UNIT
