I n s t a l l a t i o n
22
• Check the +12-V power pin and the ignition pin on the car radio
and the respective pins of the ISO cable. If necessary, swap the
pins on the fuses of the ISO cable. Plug the ISO cable to the two
open ISO connectors.
2. Plug the ISO cable to the respective connector on the hands-free unit.
3. Cut the loop indicated with scissors in the figure.
4. Connect the stereo outputs of the hands-free unit to the AUX input
of the car radio. Use an appropriate cable specific to your car radio
(this cable is not supplied with the car kit).
After you have connected the ISO cable and the stereo output cable,
connect the external input device CU-11 and the microphone MP-2 to
the respective connectors on the hands-free unit.
To charge a compatible Nokia mobile phone through the car kit, connect
one end of the supplied charging cable CA-134 to the hands-free unit and
the other end to the 2.0-mm (0.08 inch) charging connector of the phone.

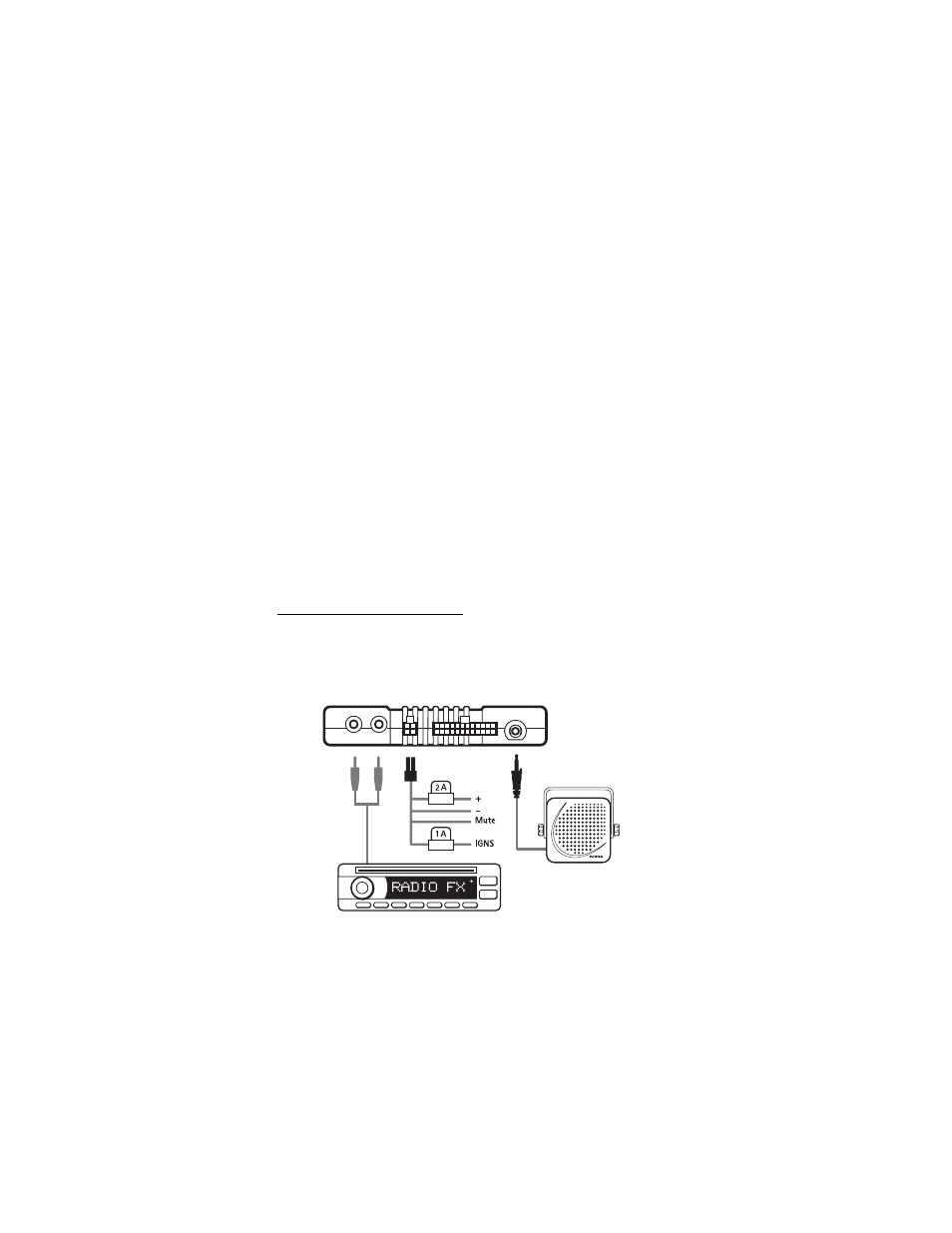

Use the power cable PCU-4
In this setup, the car radio is muted when you make or receive a call.
The loudspeaker SP-3 is used for calls, and the amplifier and equaliser of
your car radio are used for music played on a connected device that
supports the A2DP Bluetooth profile.
