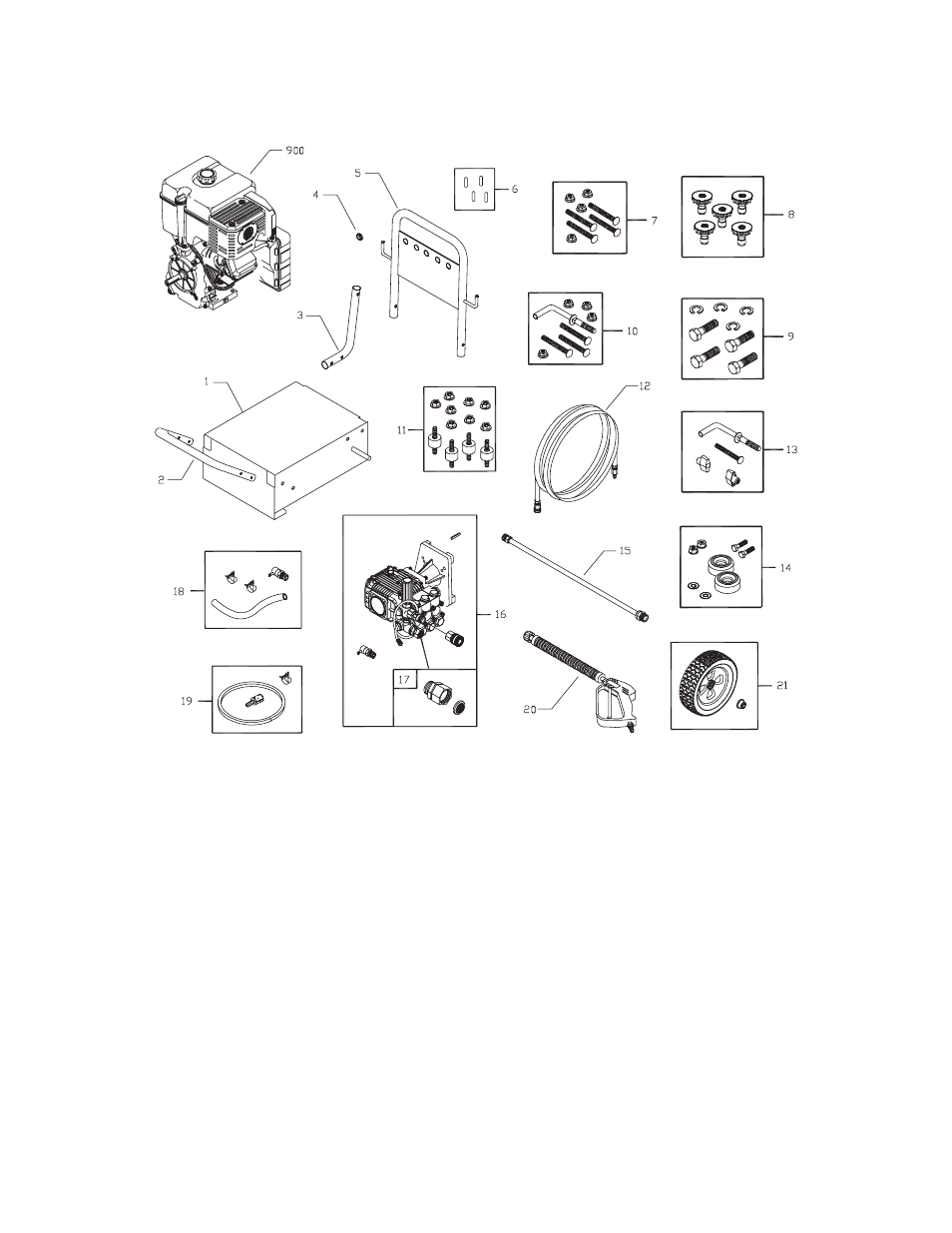

Exploded View and Parts List — Main Unit
Item Part # Description
1 A189641GS BASE
2 BB1982GS BUMPER
3 BB1981GS HANDLE, Lower
4 30809GS GROMMET
5 B190293GS HANDLE
6 192126GS KIT, Vinyl Cap
7 192129GS KIT, Lower Handle Hardware
8 B4847GS KIT, Nozzles
191903A Nozzle, QC, Red
191903B Nozzle, QC, Yellow
191903C Nozzle, QC, Green
191903D Nozzle, QC, White
191903ZZ Nozzle, QC, Black
9 192132GS KIT, Pump Mounting Hardware
10 192130GS KIT, Bumper Mounting Hrdwr
11 192134GS KIT, Engine Mounting Hrdwre
12 B4805GS HOSE
13 187978GS KIT, Upper Handle Hardware
14 192553GS KIT, Vibration Mount
15 200595GS EXTENSION, QC
16 195110GS ASSY, Pump
195016GS Valve, Thermal Relief
63281GS Key
95458GS Quick Connect
Item Part # Description
17 192135GS KIT, Garden Hose Inlet
18 192136GS KIT, Thermal Relief
19 192168GS KIT, Chemical Hose
20 B1436BGS GUN
21 192124GS KIT, Wheel
190146GS Pushnut
900 § ENGINE
Items Not Illustrated
191806GS MANUAL, Operator’s
MS6669 MANUAL, Engine
BB3061BGS OIL BOTTLE
6048 KIT, O-Ring Maintenance
87815GS GOGGLES
192015GS FITTING, Hose
192139GS KIT, Decal, Srv
Optional Accessories
6039 PUMP SAVER
§ - Contact Engine Manufacturer
