Briggs & Stratton 1687077 - Manual

1
Installation
Instructions
44” Roller Bar Mower Kit
Part No. 1687077
For Conquest / 1700 / 2700 / YT / Broadmoor / 1600 / 2600 / LT

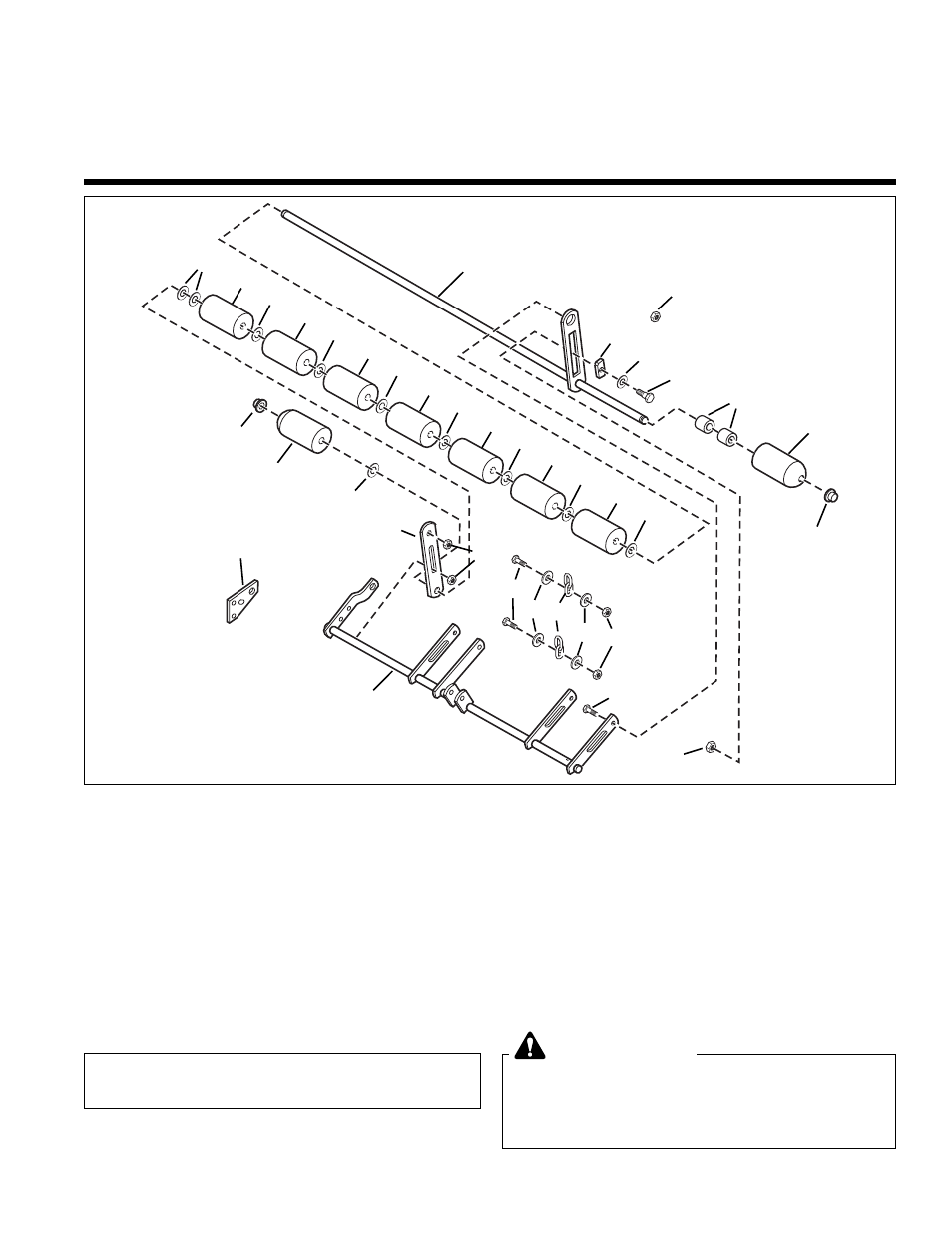

Figure 1. Kit Contents: 1687077
Ref Part No. Qty. Description
1 1716159A 1 ROLLER BAR, 44 Mower
2 2860681 2 LOCKNUT, Top Lock, 3/8-16
3 1677507 1 SLIDE
4 1924361 1 WASHER, 1/2
5 2172622 1 BOLT, Shoulder, 3/8-16 x 11/32
6 1924366 10 WASHER, 5/8
7 1722036 2 ROLLER
8 1960520 2 PUSH NUT, 5/8
9 1668513 7 ROLLER
10 1704074A 1 BAR
11 1931352 1 CARRIAGE BOLT, 3/8-16 x 1-1/2
12 1731383A 2 CAPSCREW, Hex, 5/16-18 x 1-1/2
13 1919381 4 WASHER, 5/16
14 1731384 2 LOCKNUT, ESNA, 5/16-18
15 1731383 2 CHAIN, 2 Link
16 1704080 1 PLATE, Support
17 1733521A 1 ROCKER SHAFT 44 Mower
18 1930644 2 LOCKNUT, 1/2-13
19 1602946 2 SPACER
This kit is is to convert a frame hung mower to a
roller bar mower.
1 6
2
3
4
5
2
16
11
10
17
6
8
7
6
12
19
7
8
14
9
Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
and disconnect the spark plug wire(s).
WARNING
6
9
6
9
6
9
6
9
6
9
6
9
18
13 15
13
