MAC2000 Introduction
1.3 Component Location and Description

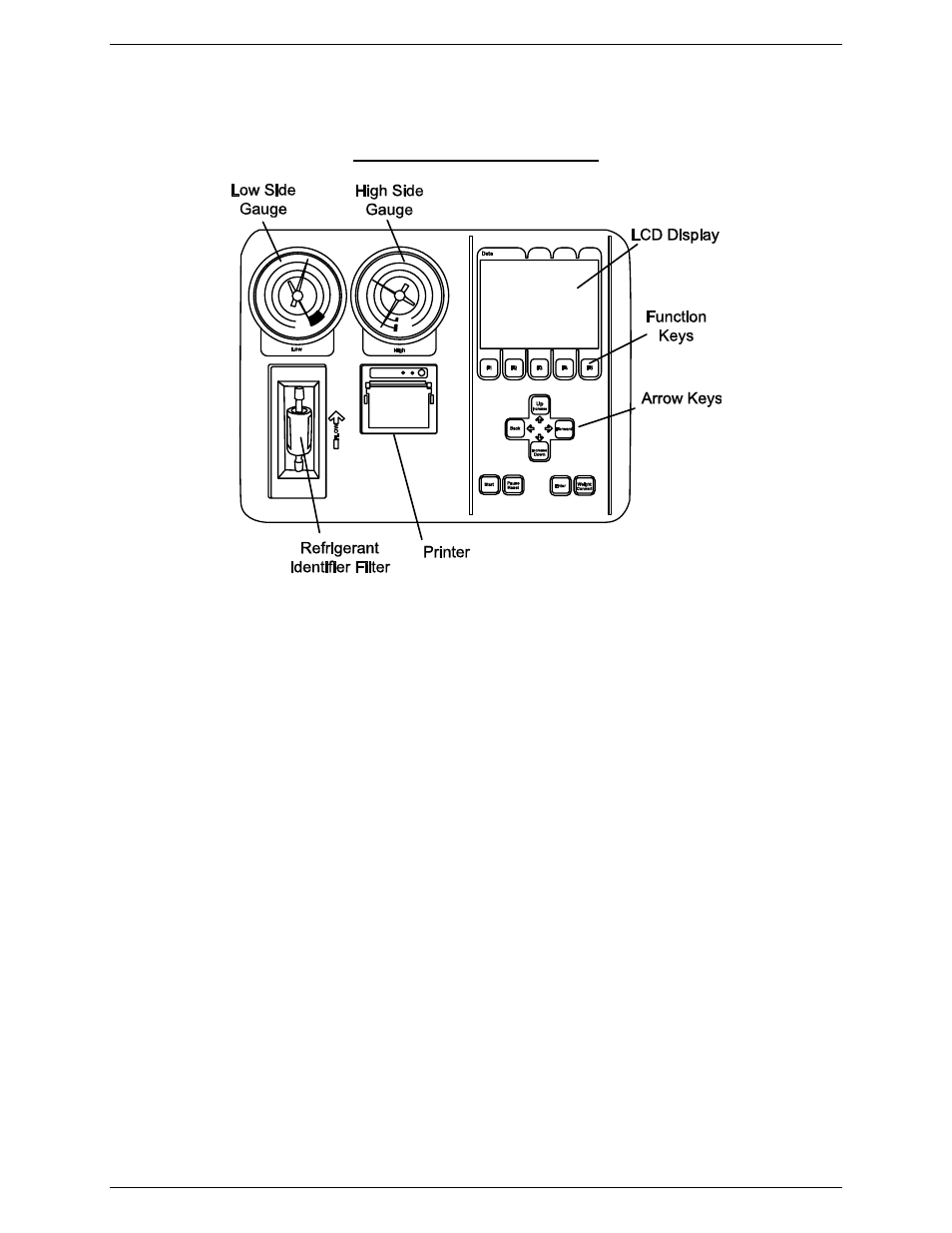

MAC2000 Control Panel
High Side Gauge – Shows the pressure in
the high side of the vehicle’s A/C system.
Low Side Gauge
– Shows the pressure in
the low side of the vehicle’s A/C system.
LCD Display (Screen) –
Displays all
operational, error, and maintenance
messages.
Refrigerant Identifier Filter
– Protects the
refrigerant identifier sensor from
contaminants.
Printer
– Provides a printed record of the
functions performed by the MAC2000. The
printer can print the record of the
MAC2000’s last operation as well as other
refrigerant management data and
operational statistics.
Start
Key – Press to start a function.
Pause/Reset
Key – Press to either pause,
reset, or abort a function and return the
display to the Main menu.
Enter Key – Press to accept a value as
displayed on the screen.
Weight Convert
Key – Press to change
the charge amount between pounds,
pound & ounces, and kilograms. Pushing
this key allows a technician to scroll
through the different weight units.
Arrow Keys
– Use these keys to select
variables and adjust values such as
charge weight and vacuum time. The
Increase
and Decrease keys are used to
adjust numerical values, while the Back,
Forward, Left
and Right keys are used to
move between values displayed on the
screen.
F1 – F5 Function Keys
– Use these keys to
select various modes and functions on the
MAC2000. A key’s current function is
described directly above it on the screen.
