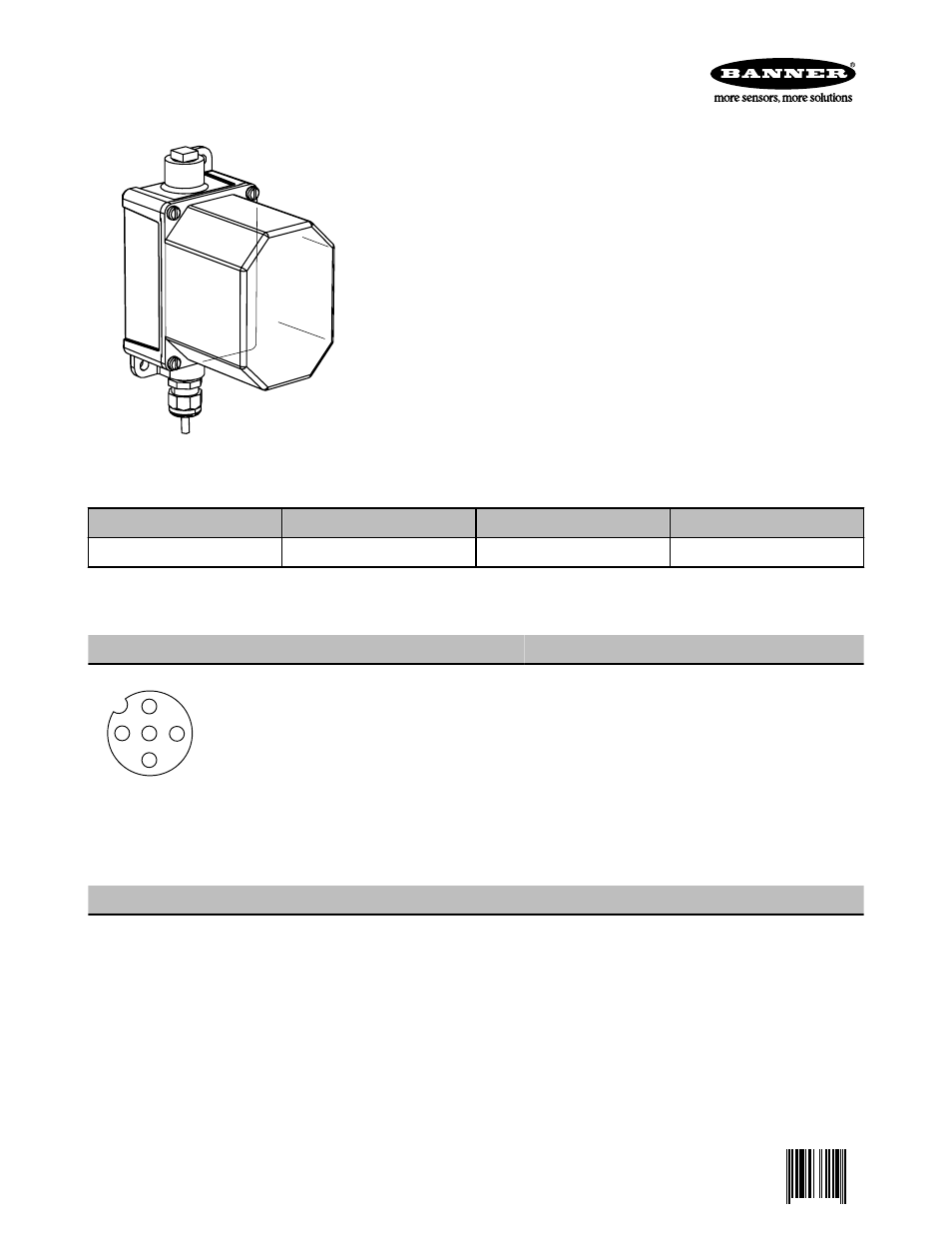

Banner FlexPower DX81P6 - Manual

Delivers and manages dc voltage from six 3.6V dc lithium primary batteries
• Wireless solution for powering a FlexPower™ Node and sensor device
• Unique power management system to run the FlexPower Node and a device
through switched power outputs for up to five years, depending upon the power
requirements of the device
• Six 3.6V dc lithium “D” cell batteries
• IP67 sealed enclosure
FlexPower systems allow for a true wireless solution as the Node can be powered by
battery power (3.6 to 5.5V dc). Battery life is application specific. Contact Banner En-
gineering’s application engineers for a battery life calculation for your specific applica-
tion.
For additional information, the most recent version of all documentation, and a complete list of accessories, refer to Banner Engineering's
website,
www.bannerengineering.com/surecross .
Model Power Batteries Cable
DX81P6 3.6V dc battery Six 3.6V Lithium "D" Cells 5-pin Euro pigtail QD
5-pin Euro-Style Female Wiring for DX81
Only FlexPower® DX80 devices may be powered from this supply.
5-pin Euro-Style Female Connector Wire No. Wire Color Description DX80...C Terminal Labels
1
2
3
4
5
3 Blue dc common (GND) V-
5 Gray 3.6V dc B+
Do not apply more than 5.5V dc to the gray wire.
Specifications
General Environmental
Estimated Battery Life
114,000 mA·hours
Housing
Polycarbonate housing and rotary dial cover; polyester
labels; EDPM rubber cover gasket; nitrile rubber, non-
sulphur cured button covers
Weight: 0.98 kg (2.15 lbs)
Mounting: 1/4-inch or M7 (SS M7 hardware included)
Max. Tightening Torque: 0.56 N·m (5 lbf·in)
Wiring Access
Environmental
Rating: IEC IP67; NEMA 6; (See UL section below for
any applicable UL specifications)
Operating Temperature: −40 to +85° C
Operating Humidity: 95% max. relative (non-condens-
ing)
Radiated Immunity: 10 V/m, 80-2700 MHz
(EN61000-6-2)
Shock and Vibration
IEC 68-2-6 and IEC 68-2-7
Shock: 30g, 11 millisecond half sine wave, 18 shocks
SureCross DX81P6 FlexPower Supply Module
P/N 131628 Rev. D 1/11/2013
